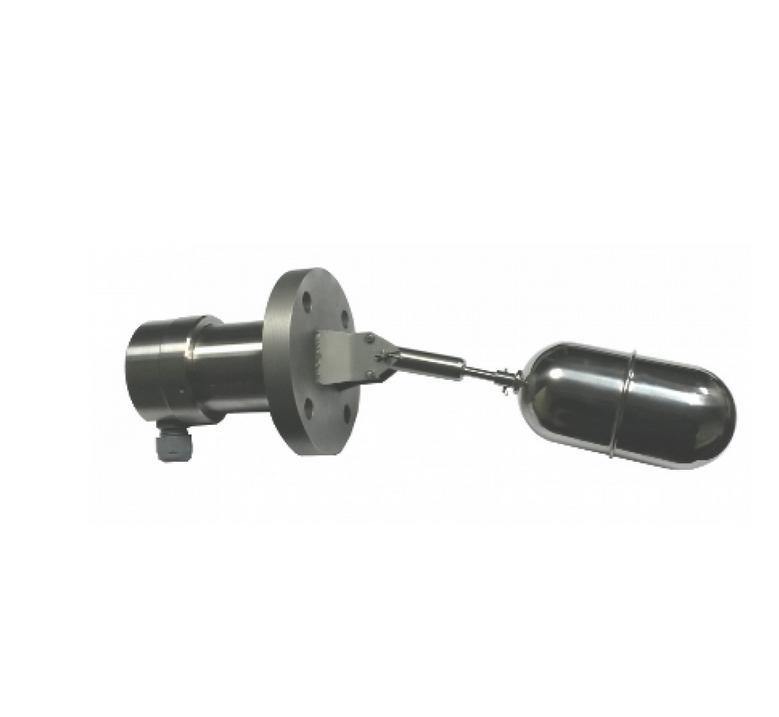

WV576001 - Magnetic Level Switch With Horizontal Floating
- Body of switch: Stainless Steel AISI 304 (Optional AISI-316).
- Buoy material: Stainless Steel AISI 316. Max. working pressure: 30 bar.
- DIN standard flange, ANSI / ASME flange on request.
- Cable entry: M16 x 1,5 mm.
- Description
- Downloads
- Product Catalogue
Description

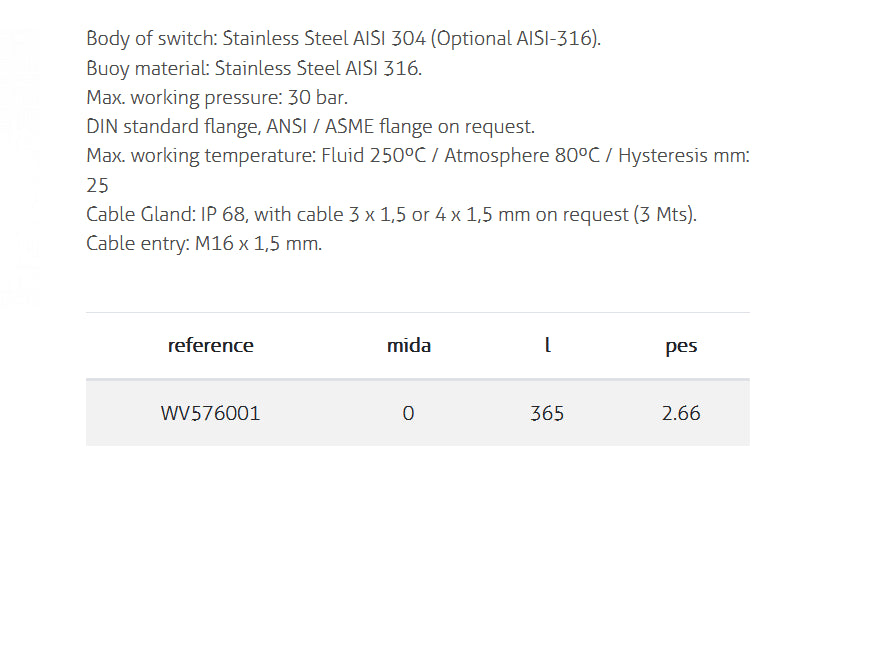

Body of switch: Stainless Steel AISI 304 (Optional AISI-316).
Buoy material: Stainless Steel AISI 316.
Max. working pressure: 30 bar.
DIN standard flange, ANSI / ASME flange on request.
Max. working temperature: Fluid 250ºC / Atmosphere 80ºC / Hysteresis mm: 25
Cable Gland: IP 68, with cable 3 x 1,5 or 4 x 1,5 mm on request (3 Mts).
Cable entry: M16 x 1,5 mm.
