H&B SENSORS

For over 40 years, H&B Sensors has been providing custom and turnkey solutions to industries worldwide, including oil & gas, petrochemical, water, and aerospace.

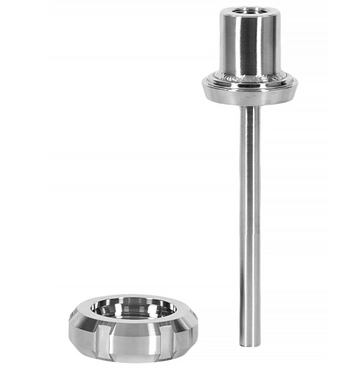

Fabricated DIN 11851 Hygienic Thermowell
H&B SENSORS
Fabricated DIN 11851 Hygienic Thermowell
  • Design: Fabricated; Parallel stem
  • RJT Sizes: 1"–4"
  • Material: 316 Stainless Steel
  • Connections: BSPP, BSPT, NPT

Technical Datasheet

Thermocouple Sensor with Connector
H&B SENSORS
Thermocouple Sensor with Connector
  • Types/Config: E, J, K, N, T; Simplex–Triplex
  • Junctions: Isolated, Grounded, Exposed
  • Materials: 310 SS, 316 SS, Alloy 600
  • Connector: Mini plug, Standard plug

Technical Datasheet

HBS6000 Temperature Transmitter with RTD Sensor (Pt100, Pt1000) & Thread
H&B SENSORS
HBS6000 Temperature Transmitter with RTD Sensor (Pt100, Pt1000) & Thread
  • Types/Config: Pt100, Pt1000; Simplex; 3-wire
  • Accuracy: Class B, A, 1/3–1/10 DIN
  • Termination: Temperature transmitter
  • Threads: 1/4"–1", M20x1.5; BSPP, BSPT, NPT, Metric
  • Specs: -50°C to +250°C

Technical Datasheet

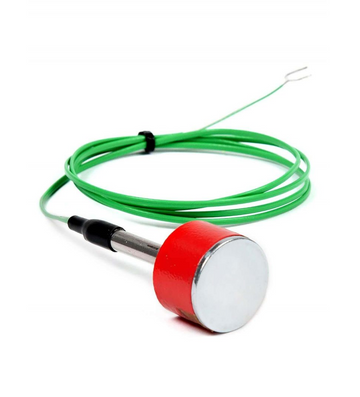

Thermocouple Magnetic Sensor
H&B SENSORS
Thermocouple Magnetic Sensor
  • Types/Config: E, J, K, N, T; Simplex–Triplex
  • Junctions: Isolated, Grounded, Exposed
  • Cables: PTFE/PFA, PVC, Fibreglass (standard/SSOB)

Technical Datasheet

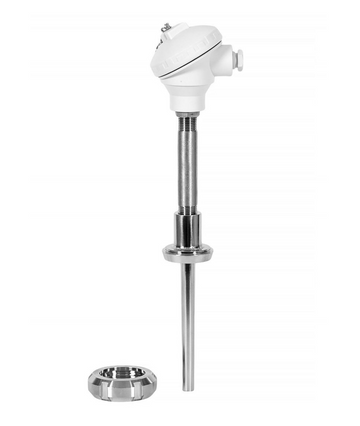

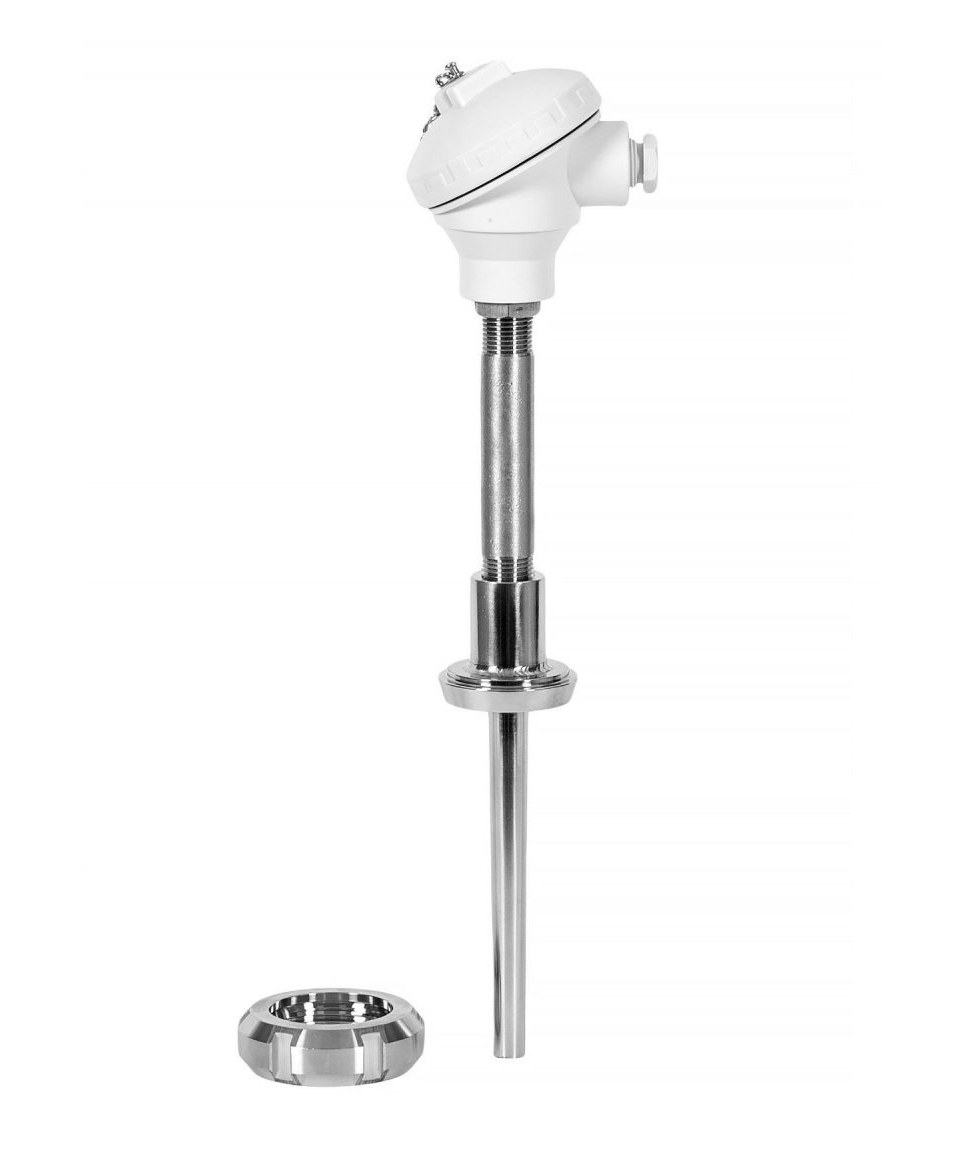

RTD Sensor (Pt100, Pt1000) with Solid Drilled DIN 11851 Hygienic Thermowell
H&B SENSORS
RTD Sensor (Pt100, Pt1000) with Solid Drilled DIN 11851 Hygienic Thermowell
  • Types/Config: Pt100, Pt1000; Simplex–Triplex; 2–4 wire
  • Certs/Accuracy: DIN classes; ATEX/IECEx/UKEX
  • Build: Alu/SS/Plastic heads; terminals/transmitters; indicators
  • Design: Extensions, solid-drilled thermowell; parallel/tapered stems; DIN 11851 sizes 1"–4"
  • Specs: 316 SS; -196°C to +650°C

Technical Datasheet

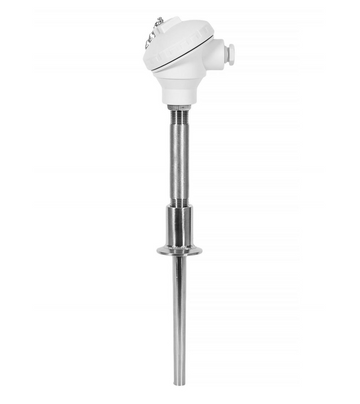

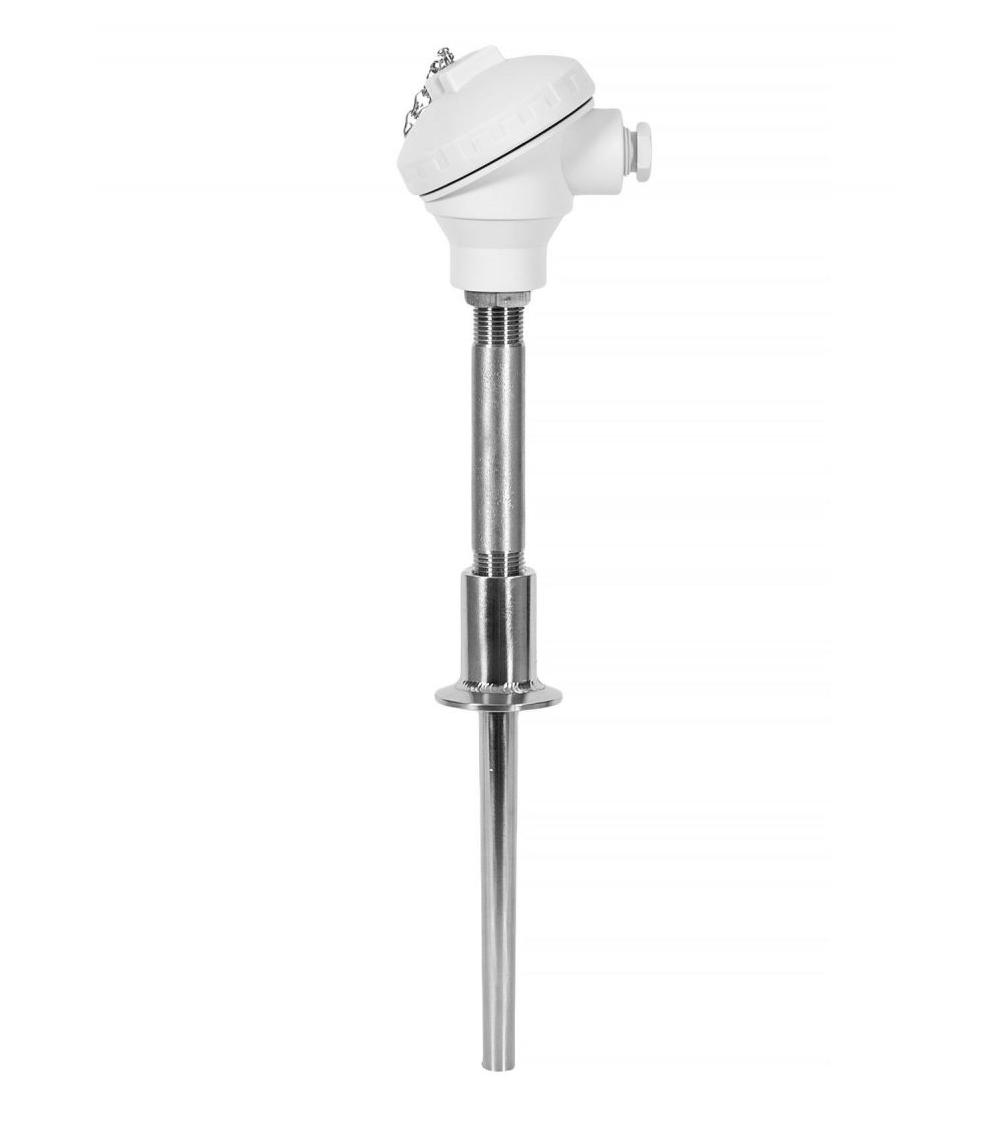

RTD Sensor (Pt100, Pt1000) with Solid Drilled Clamp Hygienic Thermowell
H&B SENSORS
RTD Sensor (Pt100, Pt1000) with Solid Drilled Clamp Hygienic Thermowell
  • Types/Config: Pt100, Pt1000; Simplex–Triplex; 2–4 wire
  • Certs/Accuracy: DIN classes; ATEX/IECEx/UKEX
  • Build: Alu/SS/Plastic heads; terminals/transmitters; indicators
  • Design: Extensions, solid-drilled thermowell; parallel/tapered stems; clamp sizes 1/2"–4"
  • Specs: 316 SS; -196°C to +650°C

Technical Datasheet

Thermocouple Spring Loaded Sensor with DIN Plate
H&B SENSORS
Thermocouple Spring Loaded Sensor with DIN Plate
  • Types/Config: E, J, K, N, T; Simplex–Triplex
  • Junctions: Isolated, Grounded, Exposed
  • Materials: 310 SS, 316 SS, Alloy 600
  • Termination: Terminal block, transmitter, tails

Technical Datasheet

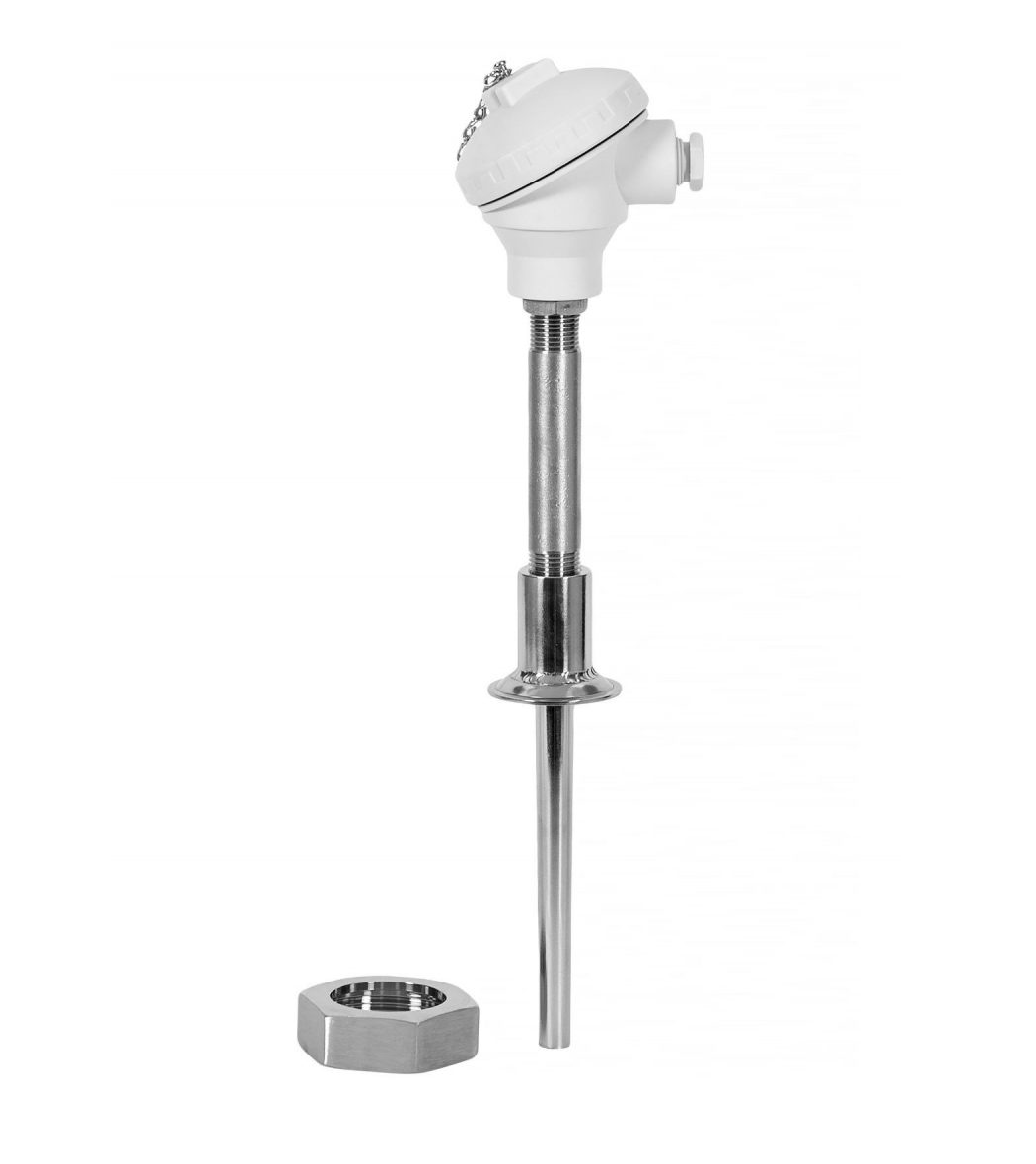

RTD Sensor (Pt100, Pt1000) with Solid Drilled RJT Hygienic Thermowell
H&B SENSORS
RTD Sensor (Pt100, Pt1000) with Solid Drilled RJT Hygienic Thermowell
  • Types/Config: Pt100, Pt1000; Simplex–Triplex; 2–4 wire
  • Certs/Accuracy: DIN classes; ATEX/IECEx/UKEX
  • Build: Alu/SS/Plastic heads; terminals/transmitters; indicators
  • Design: Extensions, solid-drilled thermowell; parallel/tapered stems; RJT sizes 1"–4"
  • Specs: 316 SS; -196°C to +650°C

Technical Datasheet

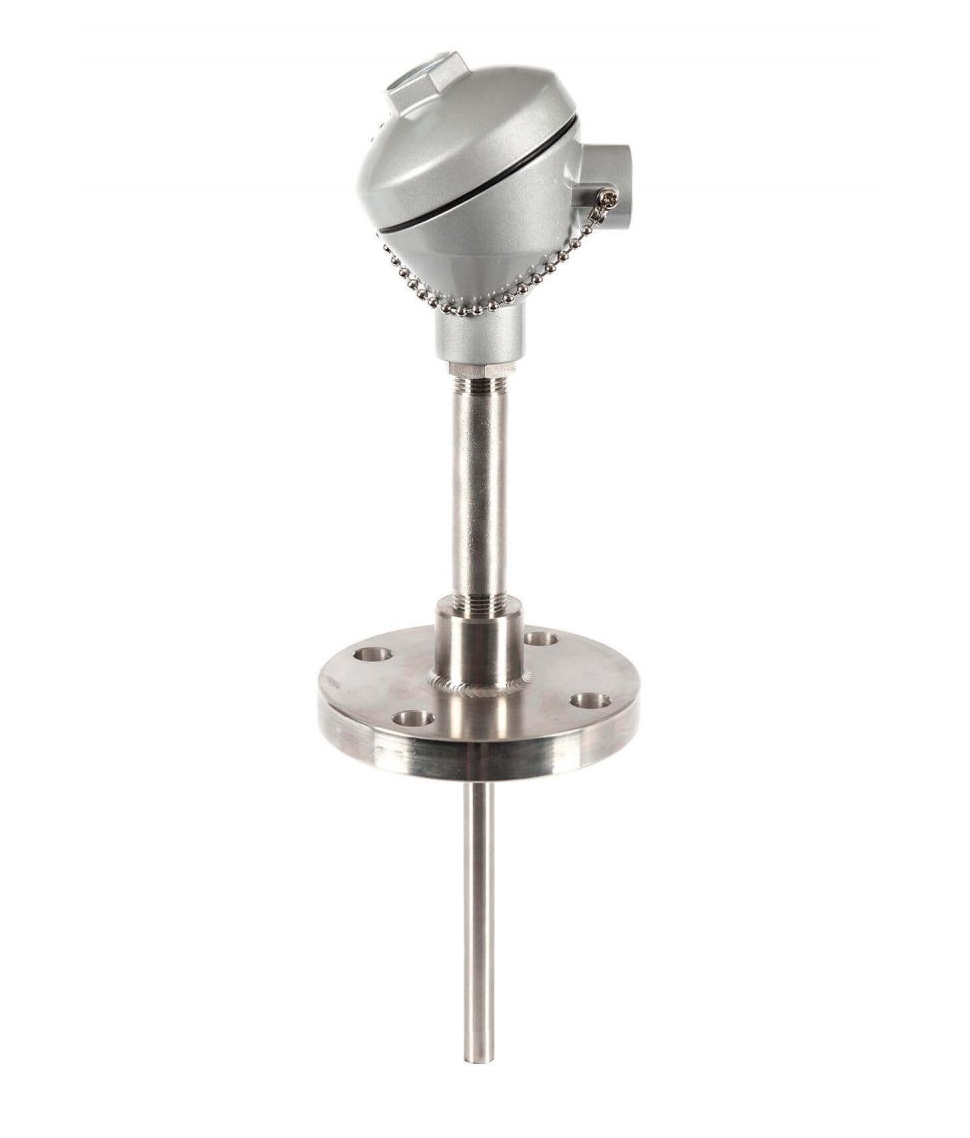

RTD Sensor (Pt100, Pt1000) with Fabricated Flanged Thermowell
H&B SENSORS
RTD Sensor (Pt100, Pt1000) with Fabricated Flanged Thermowell
  • Types/Config: Pt100, Pt1000; Simplex–Triplex; 2–4 wire
  • Certs/Accuracy: DIN classes; ATEX/IECEx/UKEX
  • Build: Alu/SS/Plastic heads; terminals/transmitters; indicators
  • Design: Extensions, fabricated thermowell; flange sizes/ratings/types
  • Specs: SS & alloys; -196°C to +650°C

Technical Datasheet

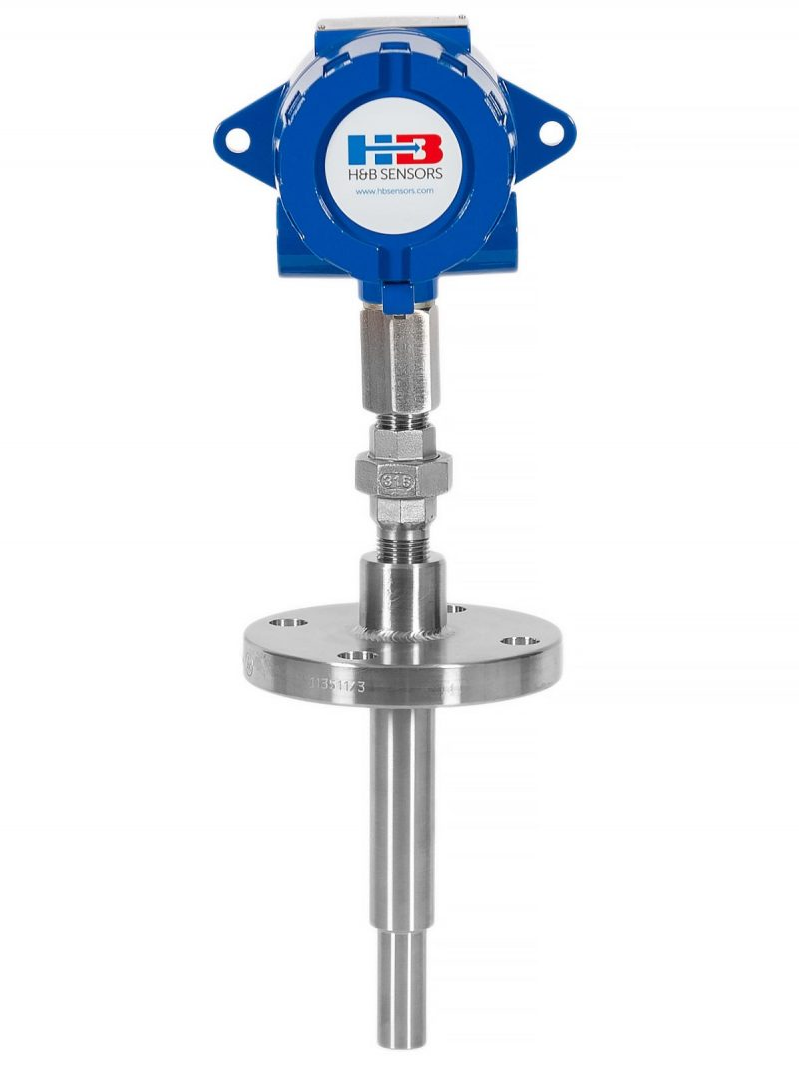

RTD Sensor (Pt100, Pt1000) with Solid Drilled Stepped Flanged Thermowell
H&B SENSORS
RTD Sensor (Pt100, Pt1000) with Solid Drilled Stepped Flanged Thermowell
  • Types/Config: Pt100, Pt1000; Simplex–Triplex; 2–4 wire
  • Certs/Accuracy: DIN classes; ATEX/IECEx/UKEX
  • Build: Alu/SS/Plastic heads; terminals/transmitters; indicators
  • Design: Extensions, thermowell, stepped stem; flange sizes/ratings/types
  • Specs: Welded/forged, NACE; SS & alloys; -196°C to +650°C

Technical Datasheet

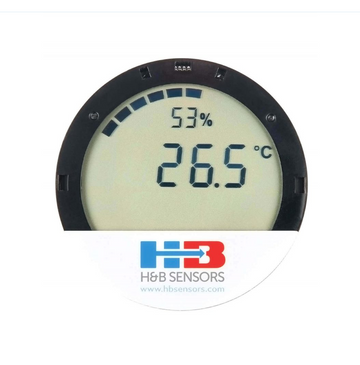

HBS5600 Temperature Transmitter & Indicator
H&B SENSORS
HBS5600 Temperature Transmitter & Indicator
  • Input: Pt100, Pt1000, Thermocouple
  • Output: 4–20 mA
  • Certs: ATEX Exia, IECEx Exia, UKEx Exia, SIL
  • Display & Communication: LCD; HART5/6/7
  • Configuration: PC (HBSUSB9), HART Communicator

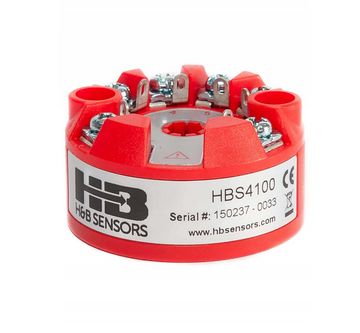

HBS4100 Temperature Transmitter
H&B SENSORS
HBS4100 Temperature Transmitter
  • Input: 3 Wire Pt100
  • Output: 4 to 20 mA
  • Configuration: PC (HBSUSB1)

Technical Datasheet

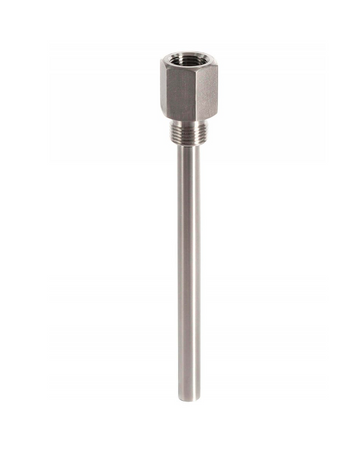

Fabricated Threaded Thermowell
H&B SENSORS
Fabricated Threaded Thermowell
  • Design: Fabricated; Parallel stem
  • Threads: 1/4"–1"; BSPP, BSPT, NPT
  • Material: SS & high-performance alloys
  • Connections: BSPP, BSPT, NPT

Technical Datasheet

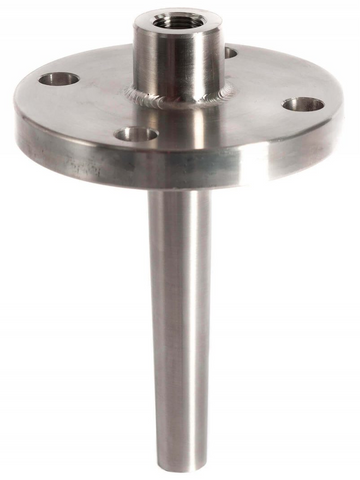

Solid Drilled Flanged Thermowell
H&B SENSORS
Solid Drilled Flanged Thermowell
  • Design: Solid drilled; Parallel/Tapered stem
  • Flanges: 1"–DN80; various ratings & types
  • Build: Welded/forged; SS & alloys; heat-treated
  • Connections: BSPP, BSPT, NPT

Technical Datasheet

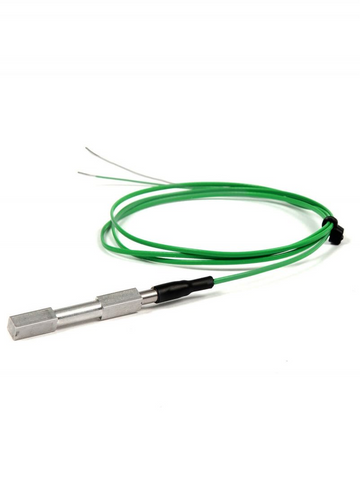

Thermocouple Strap-On Sensor
H&B SENSORS
Thermocouple Strap-On Sensor
  • Types: E, J, K, N, T
  • Config/Junction: Simplex–Triplex; Isolated/Grounded/Exposed
  • Cables: PTFE/PFA, PVC, Fibreglass (screened/SSOB)

Technical Datasheet

Thermocouple Sensor with Solid Drilled Flanged Thermowell
H&B SENSORS
Thermocouple Sensor with Solid Drilled Flanged Thermowell
  • Types: E, J, K, N, T
  • Config/Junction: Simplex–Triplex; Isolated/Grounded/Exposed
  • Certs/Build: ATEX/IECEx/UKEX; Alu/SS/Plastic heads; terminals/transmitters
  • Design: Thermowell, stems, flanges
  • Materials: SS & high-performance alloys, welded/forged, heat-treated

Technical Datasheet

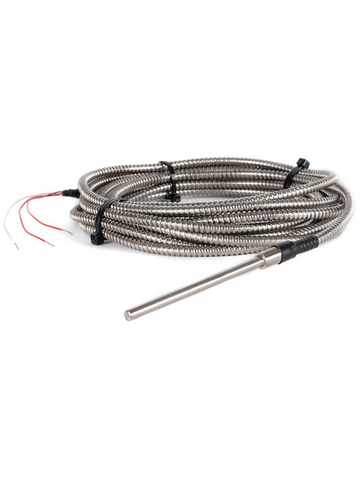

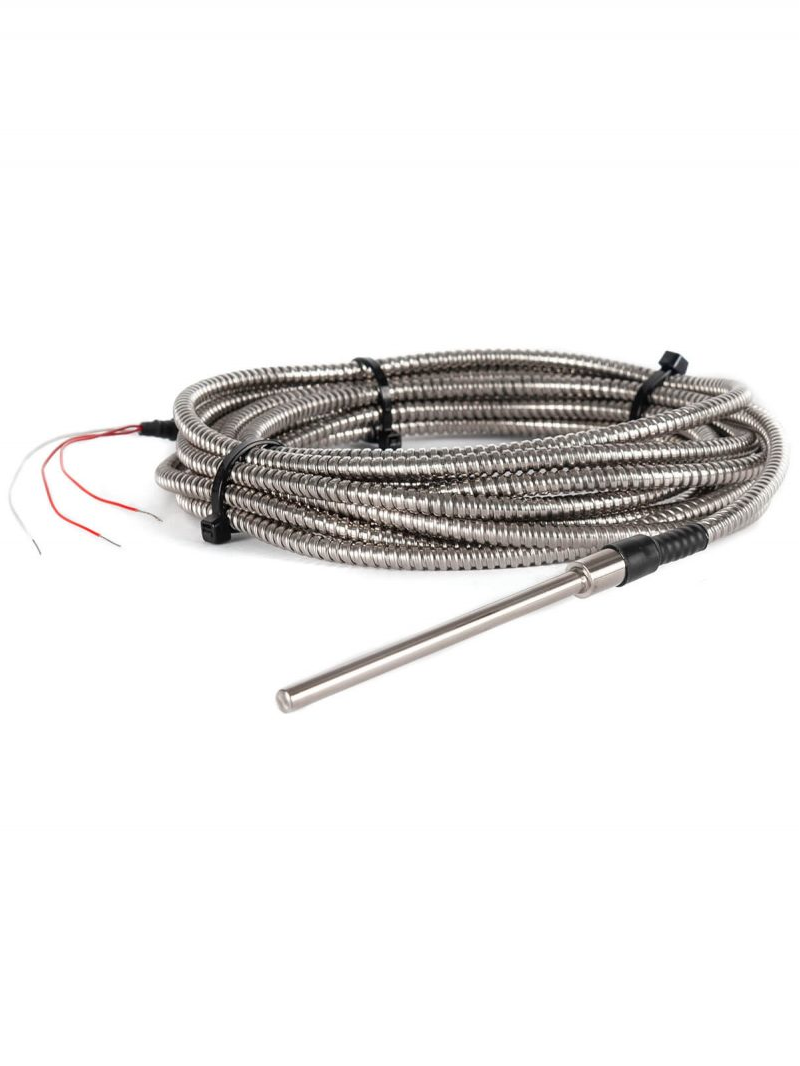

RTD Sensor (Pt100, Pt1000) with Plain Pot, Armoured Conduit & Flying Leads
H&B SENSORS
RTD Sensor (Pt100, Pt1000) with Plain Pot, Armoured Conduit & Flying Leads
  • Types: Pt100, Pt1000
  • Config: Simplex–Triplex, 2–4 wire
  • Accuracy: Class B, A, 1/3–1/10 DIN
  • Cables: PTFE/PFA, PVC, Fibreglass (screened/SSOB)
  • Specs: -196°C to +650°C

Technical Datasheet

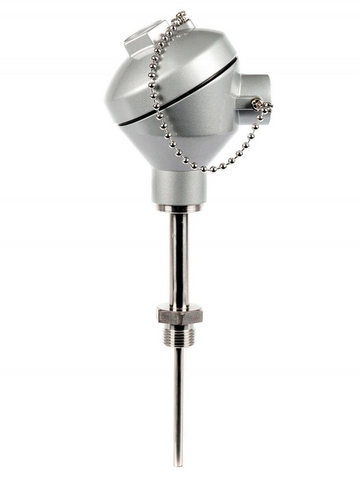

RTD Sensor (Pt100, Pt1000) with Integral Extension & Thread
H&B SENSORS
RTD Sensor (Pt100, Pt1000) with Integral Extension & Thread
  • Types: Pt100, Pt1000
  • Config: Simplex–Triplex, 2–4 wire
  • Accuracy/Certs: DIN classes, ATEX/IECEx/UKEX
  • Build: Alu/SS/Plastic heads, various terminations, indicators
  • Specs: Threads 1/4"–1", -196°C to +650°C

Technical Datasheet

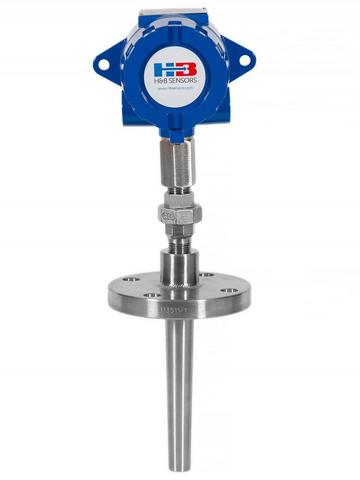

RTD Sensor (Pt100, Pt1000) with Solid Drilled Flanged Thermowell
H&B SENSORS
RTD Sensor (Pt100, Pt1000) with Solid Drilled Flanged Thermowell
  • RTD Sensor: Pt100, Pt1000
  • Configuration: Simplex, Duplex, Triplex
  • Wiring: 2, 3, 4 Wire
  • Class: B, A, 1/3 DIN, 1/5 DIN, 1/10 DIN

Technical Datasheet
