Description

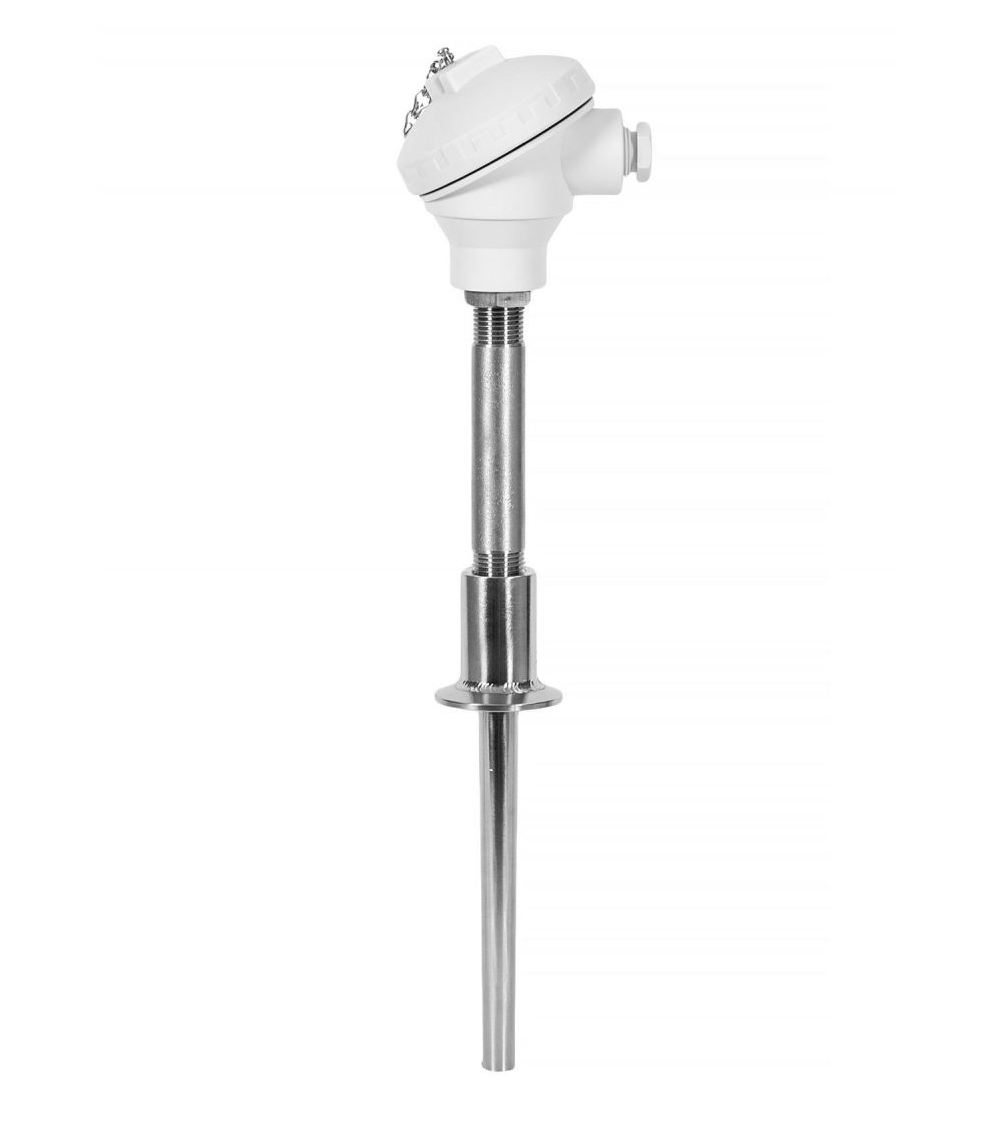

The RHA110 is a hygienic temperature assembly combining a spring-loaded Pt100 or Pt1000 RTD with a solid drilled clamp thermowell, engineered for high-pressure and high-flow applications. Available in 2-, 3-, or 4-wire configurations (simplex, duplex, or triplex), it supports accuracy classes from 1/10 DIN to Class B. Connection heads are offered in aluminium, stainless steel, or plastic with M20 x 1.5 entry, with termination options including ceramic block, 4–20 mA transmitter, or tails, plus optional loop or battery-powered indicators. The thermowell is available with parallel or tapered stems and multiple process threads, with hazardous area approvals for Zones 0–22 and optional certification services.
Downloads
 |
Technical Datasheet |
Product Catalogue
