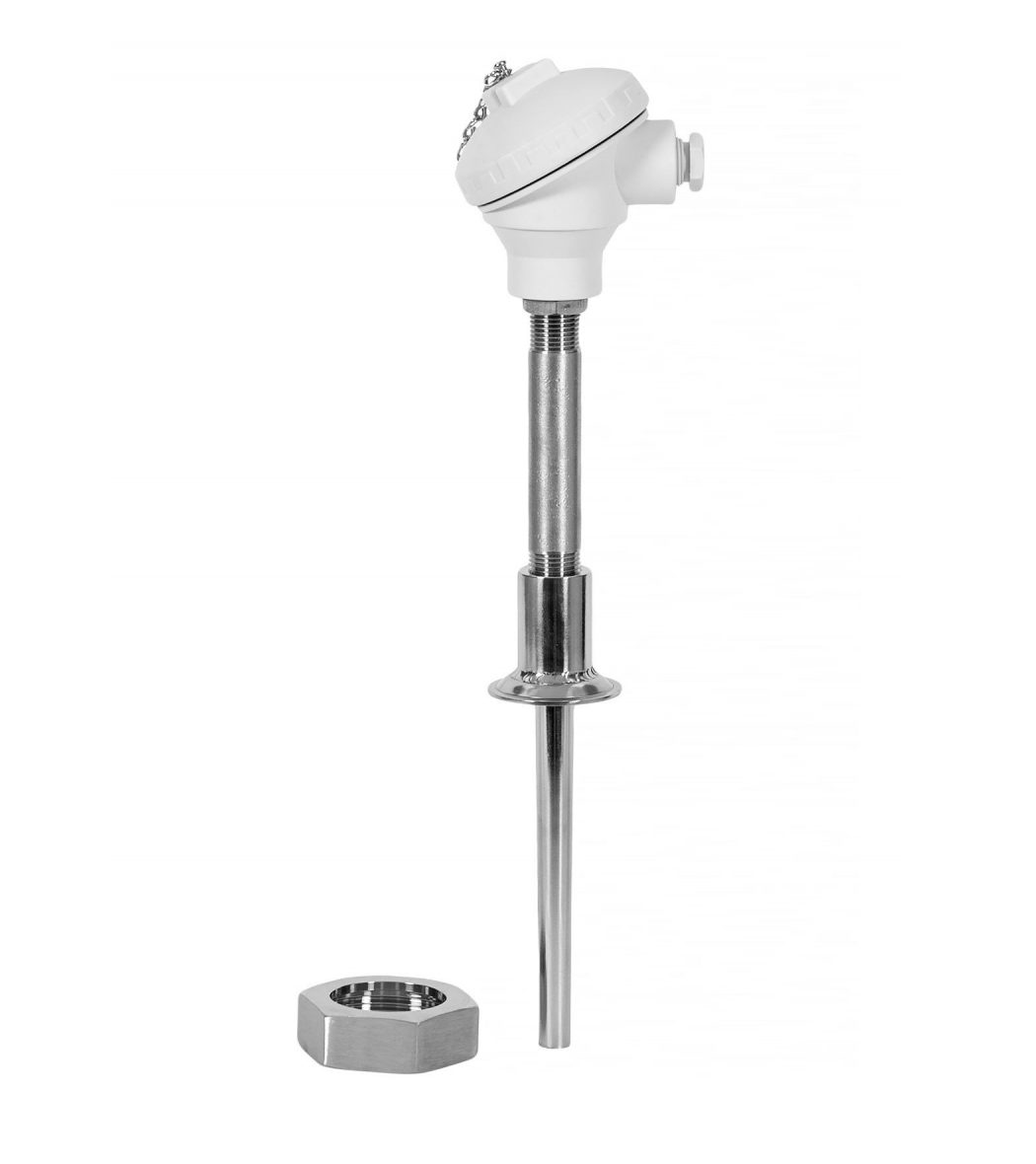

RTD Sensor (Pt100, Pt1000) with Solid Drilled RJT Hygienic Thermowell
- Types/Config: Pt100, Pt1000; Simplex–Triplex; 2–4 wire
- Certs/Accuracy: DIN classes; ATEX/IECEx/UKEX
- Build: Alu/SS/Plastic heads; terminals/transmitters; indicators
- Design: Extensions, solid-drilled thermowell; parallel/tapered stems; RJT sizes 1"–4"
- Specs: 316 SS; -196°C to +650°C
 |
Technical Datasheet |
£0.00
In Stock
Sold out
- Description
- Downloads
Description
The RHA101 is a hygienic temperature assembly combining a spring-loaded Pt100 or Pt1000 RTD sensor with a solid drilled RJT thermowell, engineered for high-pressure and high-flow applications. Available in 2-, 3-, or 4-wire configurations (simplex, duplex, or triplex), it supports accuracy classes from 1/10 DIN to Class B. Connection heads are offered in aluminium, stainless steel, or plastic with M20 x 1.5 entry, and termination options include ceramic block, 4–20 mA transmitter, or tails, with optional loop or battery-powered indicators. The thermowell is available with parallel or tapered stems and process threads, with approvals for hazardous Zones 0–22 and optional certification services.
