Thermocouple Sensor with Solid Drilled Flanged Thermowell
- Types: E, J, K, N, T
- Config/Junction: Simplex–Triplex; Isolated/Grounded/Exposed
- Certs/Build: ATEX/IECEx/UKEX; Alu/SS/Plastic heads; terminals/transmitters
- Design: Thermowell, stems, flanges
- Materials: SS & high-performance alloys, welded/forged, heat-treated
 |
Technical Datasheet |
£0.00
In Stock
Sold out
- Description
- Downloads
Description

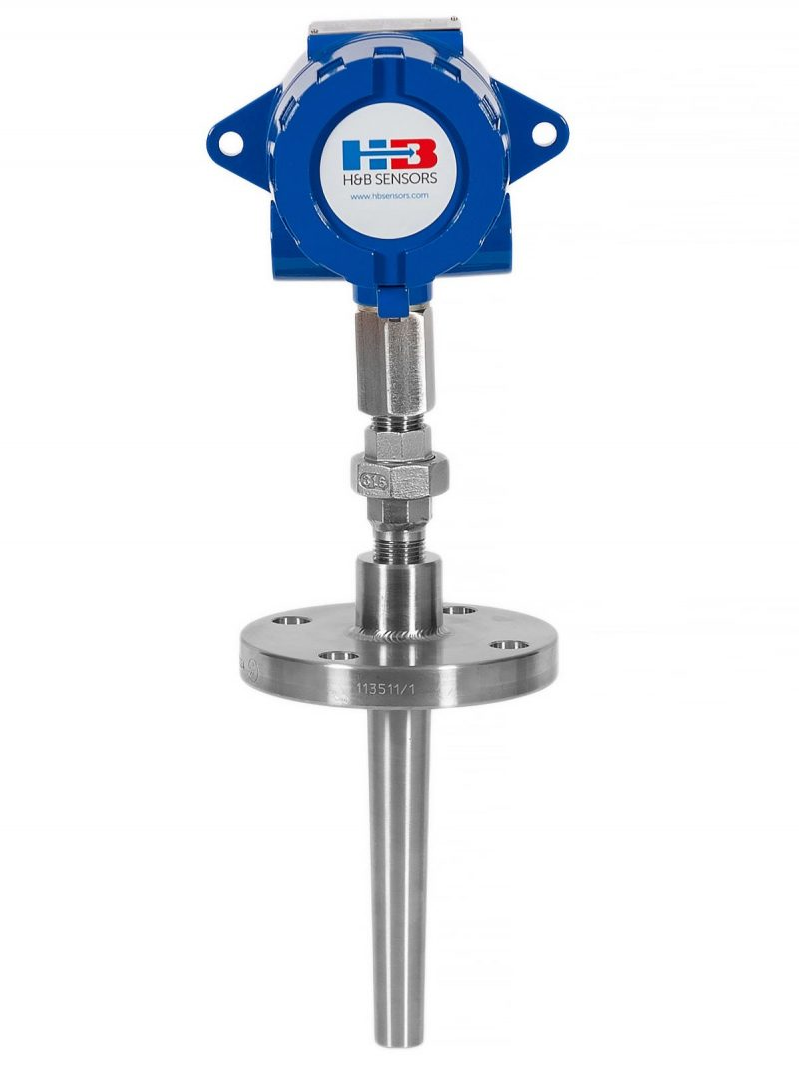

The TFA101 is a heavy-duty temperature assembly that combines a spring-loaded thermocouple with a solid drilled flanged thermowell, designed for high-pressure and high-flow applications. Available in types E, J, K, N, or T, it can be configured in simplex, duplex, or triplex with isolated, grounded, or exposed junctions. Connection heads are offered in aluminium, stainless steel, or plastic, with terminations including ceramic blocks, 4–20 mA transmitters, or tails. The thermowell comes in parallel or tapered stem designs, multiple flange ratings, and materials such as stainless steel, Hastelloy®, Monel®, or Inconel®. Certification, testing, and hazardous area approvals are also available.
