BECK

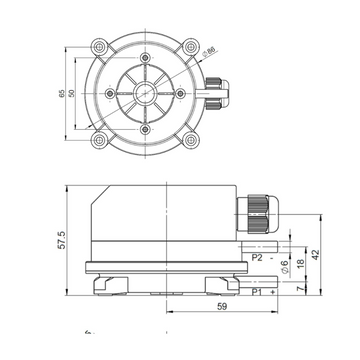

- Differential Pressure Switch SPDT C/O Contacts
- Up to 25 mbar adjustment ranges
- Over-pressures up to 50 mbar
- Graduated knob for easy adjustment
- 6.0 mm Ø push-on tube connection
- Silicone diaphragm
- Ideal for very low pressure
 |
Technical Datasheet |
- Differential Pressure Transmitter for Air Up to 250 kPa pressure ranges
- Manual/automated offset compensation
- 4-20 mA or 0-10 V DC output
- 6.0 mm Ø push-on tube connection
- mbar or pascal pressure units
- Optional LED display
|
Technical Datasheet |
- Temperature range: Ambient temperature from –20° C to 85° C.
- Diaphragm material: NBR, Silicone, FKM (Viton ®), EPDM.
- Electrical connection: AMP connection 6.3 mm x 0.8 mm DIN 46244
- Temperature range: Ambient temperature from –20°C to +85°C
- Diaphragm material: NBR, Silicone, FKM (Viton® ), EPDM.
|
Technical Datasheet |
- Storage and operating temperature –20°C to +85°C
- Media temperature 0 to 85°C
- Humidity max. 95% rH., non-condensing
- Membrane Material: NBR, Silicone, FKM, EPDM
- Protection Class: IP65 according to EN 60529
|
Technical Datasheet |
