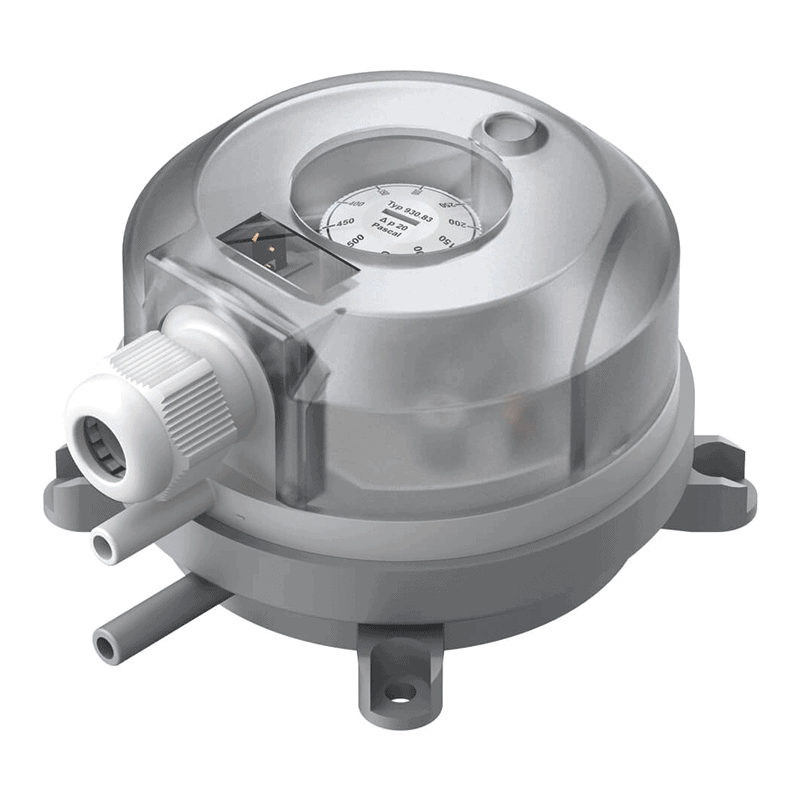

930.8x Pressure Switch

  • Differential Pressure Switch SPDT C/O Contacts
  • Up to 25 mbar adjustment ranges
  • Over-pressures up to 50 mbar
  • Graduated knob for easy adjustment
  • 6.0 mm Ø push-on tube connection
  • Silicone diaphragm
  • Ideal for very low pressure
£0.00 In Stock Sold out
Adjustable differential pressure switch for monitoring overpressure, vacuum and differential pressure of air or other non-combustible, non-aggressive gases.

The switching pressure can be adjusted without a pressure gauge using a scaled adjustment knob. Various versions with overlapping adjustment ranges between 0.2 mbar and 50 mbar are available for this purpose. As standard, the pressure switch is equipped with a transparent cover of protection class IP54.
