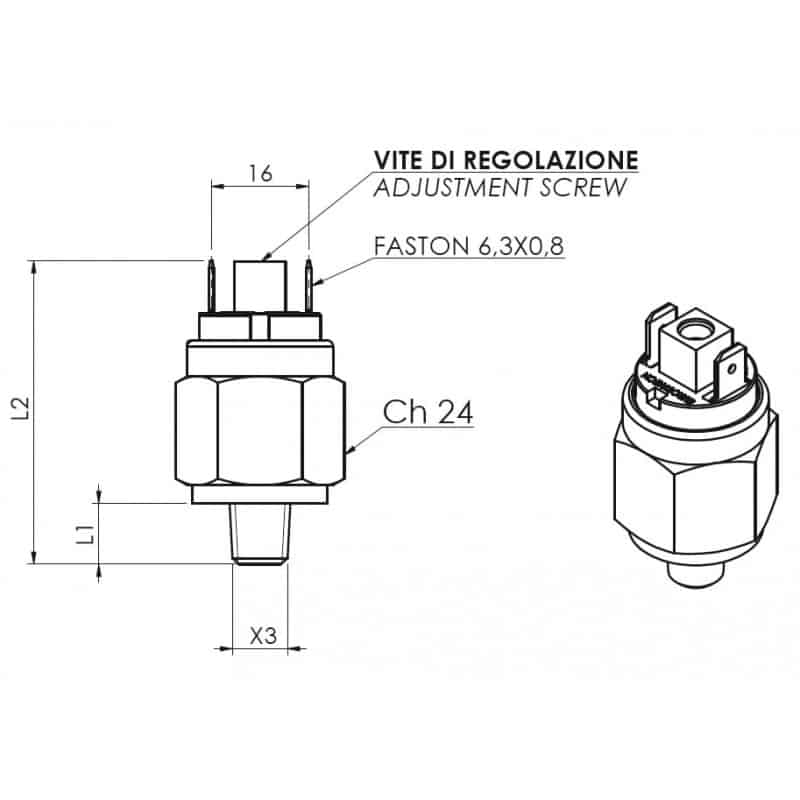

35_dwg
35_pressure_switch
35_dwg
EUROSWITCH

Model 35 Vacuum Switch

  • Case Brass: (on request Stainless Steel )
  • Electric contacts: Silver AgNi, on request gold plated
  • Electrical connection: N.O. (White ) N.C. (Brown )
  • Max switch voltage: 48V ac / dc
  • Max switch current: 0,5A
  • Max fluid temperature: 80°-120°C (depending on diaphragm)
  • Max Overpressure limit: 15 bar
  • Max Working pressure: 10 bar
  • Weight ~ 70 gr

Technical Datasheet
£0.00 In Stock Sold out
Looking for a vacuum switch that can handle a variety of applications? Look no further than the Model 35. This diaphragm vacuum switch is designed with a choice of normally open or closed contacts, making it perfect for adjustable switching pressure ranges. Plus, it has a max working pressure of 10 bar and over-pressure limit of 15 bar, so you can rest assured that it can handle whatever you throw at it. And to top it off, the Model 35 features a nitrile diaphragm as standard with brass body – making it a durable and reliable choice for your next project.
.
Technical Datasheet
