Euroswitch

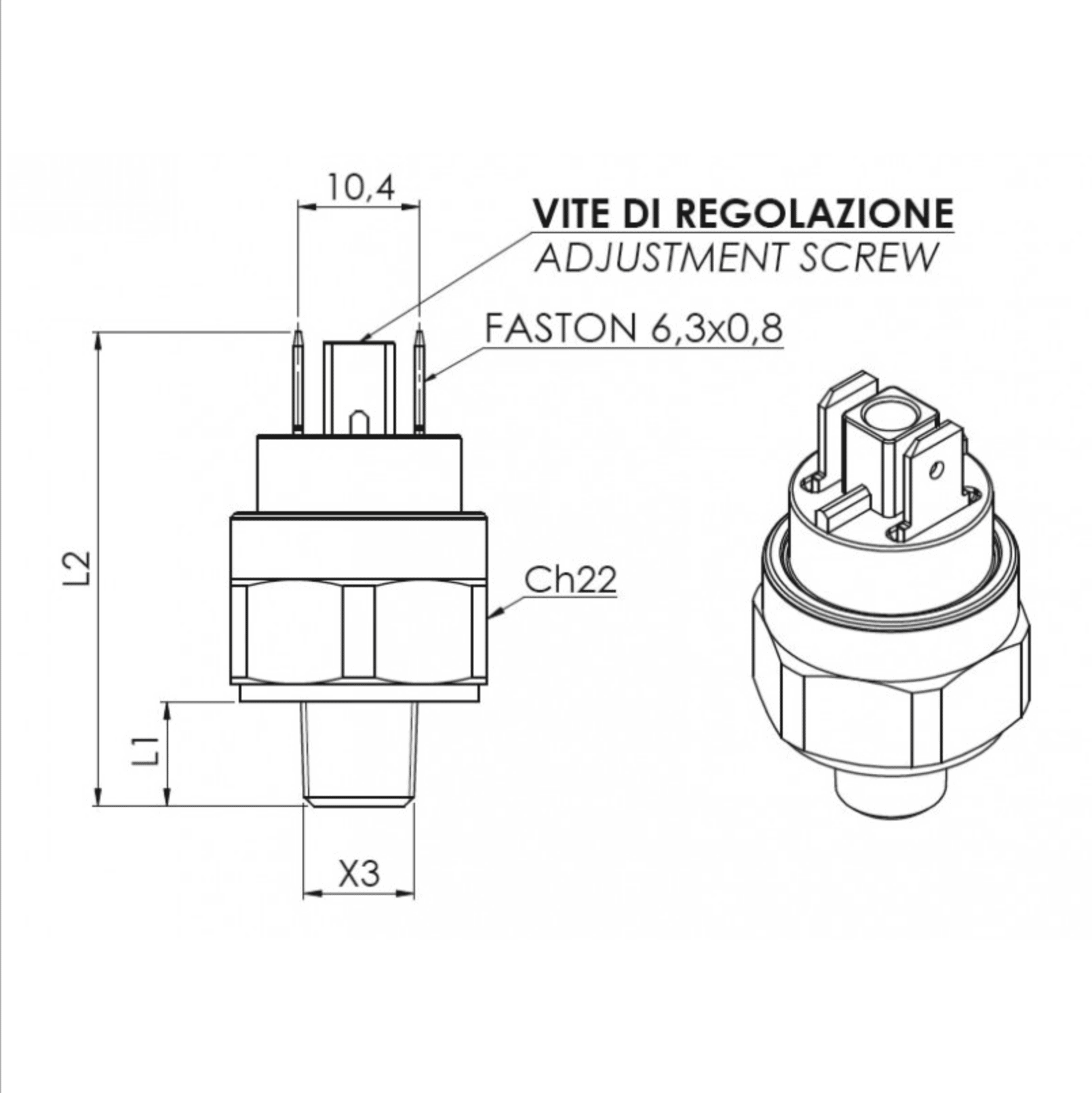

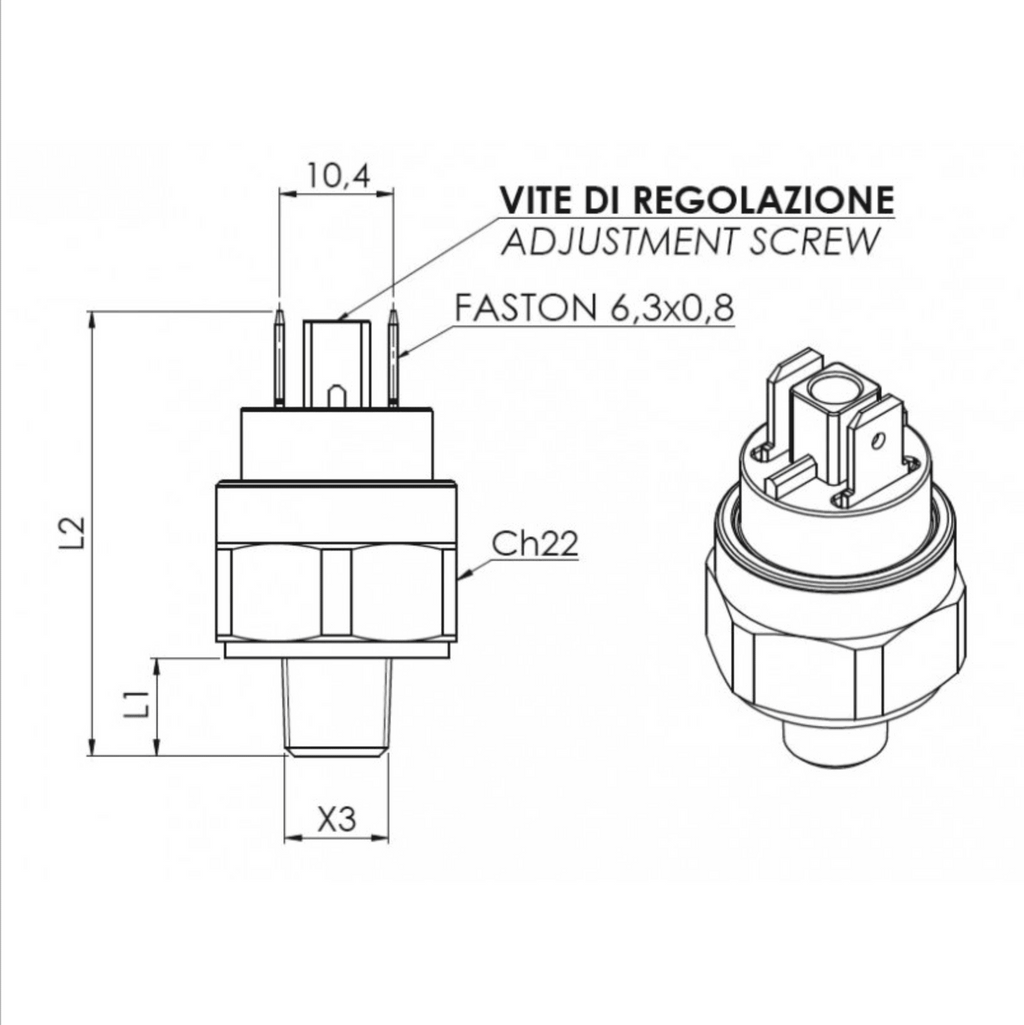

Model 25 Pressure Switch
| 25 R | 25 D | |
| Sensitive element | Diaphragms | Diaphragms |
| Setting range | 0,5 - 10 bar | 1 - 6 bar |
| Contact type | N.O. / N.C. | N.O. / N.C. |
| Contact rating | 0,5 A / 48 V | 8 A / 12 V |
| Electrical connection | Faston 6.3x0.8 | Faston 6,3x0,8 |
| Datsheets | Model 25R Datasheet | Model 25D Datasheet |
In Stock
Sold out
- Product Description
- 25 R Technical Data
- 25 D Technical Data
- Downloads
Product Description
The Model 25 Pressure Switch is ideal for a wide range of industrial applications. It features a small diaphragm pressure switch with choice of Normally Open or Normally Closed contacts, and adjustable switching pressure ranges up to 10 bar. The adjustment range options include 0.5 – 3.5 bar, 1 – 4 bar, and 4 – 10 bar. The max working pressures are 20 bar, and the max over pressure limit is 50 bar. Additionally, the max voltage is 48 volts and the max current is 5 amps. The product has a brass body and is temperature-resistant up to 80°C
25 R Technical Data
25 D Technical Data
Downloads
