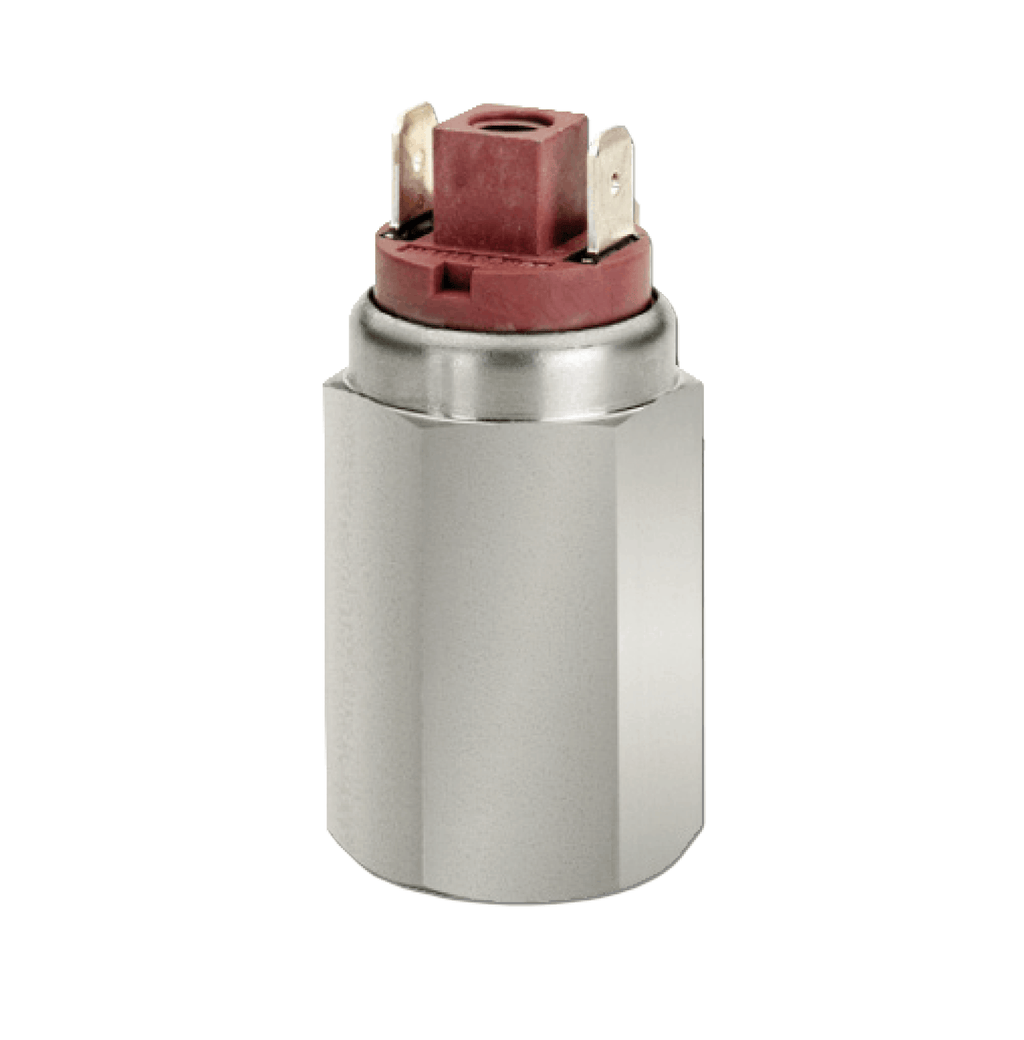

Model 42 Pressure Switch

Sensitive elementDiaphragms
Setting range0,1 - 50 bar
Contact typeN.O. / N.C.
Contact rating0,5 A / 48 V
Electrical connectionFaston 6,3x0,8 / Clamping plate
DatasheetsTechnical Datasheet
Login to see prices In Stock Sold out
The Model 42 Pressure Switch is perfect for a wide range of applications. Its diaphragm design ensures accurate pressure switching, and it's available with SPDT or SPST contacts. Plus, the adjustable switch ranges make it easy to find the perfect fit for your needs. And with working pressures up to 150 bar and an overpressure limit of 300 bar, this pressure switch can handle even the most demanding applications.
