EUROSWITCH
Model 80 Electrical Differential Pressure Indicator
- Medium: Oil - Air
- Case: Brass
- Electric contact: Silver
- Max fluid temperature: 100°C Electrical conditions: N.O. - N.C.
- Max switches voltage: 48 V ac / dc
- Max switches current: 0,5 A
- Action type: 1B Max working pressure: 350 ÷ 450 bar (depending on the thread)
- Thread: 1/2” Gas standard (others on request)
- Tightening torque: 50-70 Nm
- Protection degree: IP 00 (see pages 18-20 for protection caps and connectors)
- Weight ~ 120 g
 |
Technical Datasheet |
£0.00
In Stock
Sold out
- Product Description
- Technical Data
- Downloads
Product Description

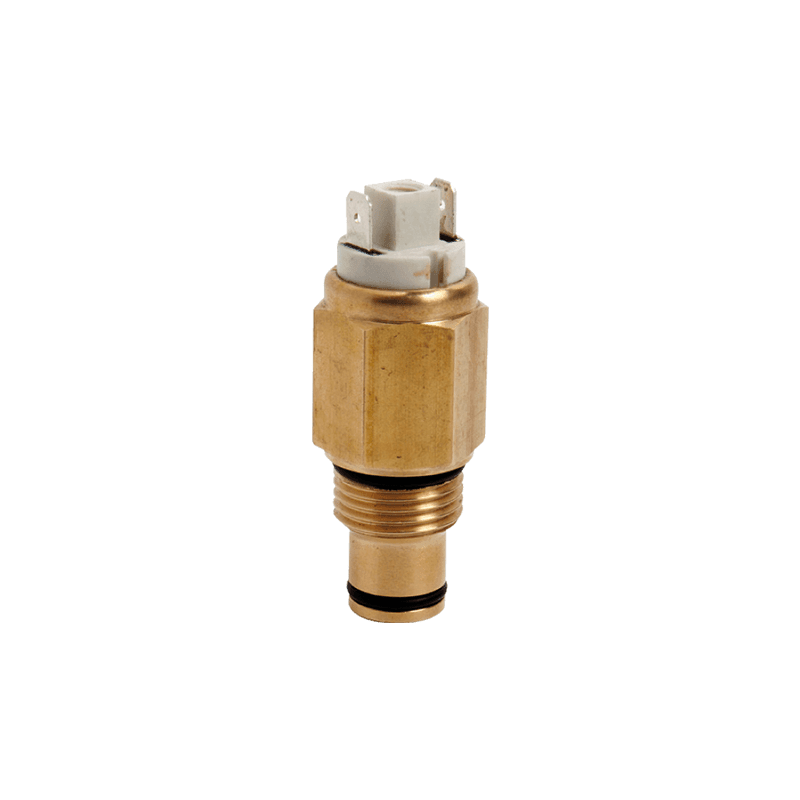

The Model 80 Electrical Differential Pressure Indicator is perfect for professionals who need to measure pressure levels in a wide range of 1.3 – 8 bar. It features oil or air as the working fluid, with SPST switching contacts and piston sensing element. Plus, it has a brass case for durability.
Technical Data
Downloads
