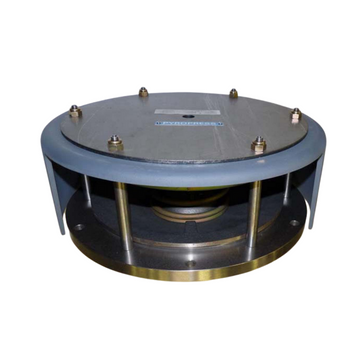

PYROPRESS
- Sizes available from 80mm to 300mm.
- Flametrap patented by BICERI.
- Proven in service for a long life and efficiency.
- Safety deflecting cover.
- Robust and durable in the most adverse conditions.
- Custom design ability.
- Options available for exhaust/high temperature applications.
- Cover: Cast aluminium.
- Carrier: Cast iron.
 |
Technical Datasheet |
- 1x or 2x SPDT microswitches (simultaneous or adjustable)
- Optional adjustable deadband
- Internal adjustment scale
- 316 stainless steel or black anodised aluminium housing
- IP66 & IP67 rated
- SIL 2 certified (IEC 61508)
|
Technical Datasheet |

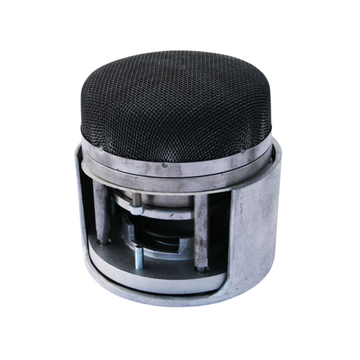

- 250mm or 300mm size option.
- Proven in service for a long life and efficiency.
- Safety deflecting cover.
- Robust and durable in the most adverse conditions.
- Custom design ability.
- Integral indicator option
- Cover: Cast aluminium
- Carrier: Cast iron
|
Technical Datasheet |
- 1 x SPDT microswitch or 2 x SPDT microswitches for DPDT switching or adjustable deadband or dual independant switching
- Internal adjustment scale
- 316 Stainless steel or black anodised aluminium switchcase to IP66 and IP67 standards
- Proven and documented SIL 2 IEC 61508 suitability.
|
Technical Datsheet |
- 1 x SPDT microswitch or 2 x SPDT microswitches for DPDT switching or adjustable deadband or dual independant switching
- Internal adjustment scale
- 316 Stainless steel or black anodised aluminium switchcase to IP66 and IP67 standards
- Proven and documented SIL 2 IEC 61508 suitability.
|
Technical Datsheet |
- 1 x SPDT microswitch or 2 x SPDT microswitches (simultaneous operation).
- Internal adjustment scale
- Black anodised aluminium switchcase to IP67 standards
- Proven and documented SIL 2 IEC 61508 suitability.
|
Horizontal Mounting |
|
Vertical Mounting |
|
Reed Level |
- High and low settings with pump control option
- Dual float option on reed level switch
- PPS (engineering polymer) or stainless steel case to IP66 & IP67
- DIN 43650 connector or M12 Circular connector
|
Technical Datasheet |
- Optional SIL 2 IEC 61508, with a qualifying report and Certificate Of Compliance available on request
- Epoxy painted aluminium or 316 stainless steel housing
- 316 Stainless steel wetted parts (other options available)
- 316 Stainless steel welded diaphragm
- Accuracy 0.075%
- M20 Female or 1/2″ NPT electrical connection
|
PYRP Datasheet |
|
PYRD Datasheet |

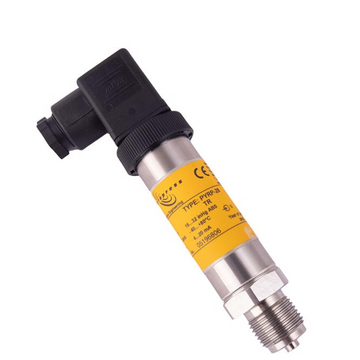

- PYRP-28 INTRINSICALLY SAFE PRESSURE AND DIFFERENTIAL PRESSURE TRANSMITTER
- 316 Stainless steel wetted parts
- 316 Stainless steel welded diaphragm
- Accuracy 0.2%
- DIN 43650 plug and socket, M20 Female, flying lead or PM12 electrical connection
|
PYRP-28 Datsheet |
|
PYRD-28 Datasheet |

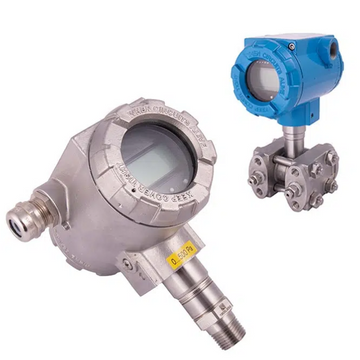

- PYRP-2000 & PYRD-2000 INDUSTRIAL SMART INDICATING PRESSURE AND DIFFERENTIAL PRESSURE TRANSMITTERS
- 316 Stainless steel wetted parts. Hastelloy and other materials available
- 316 Stainless steel welded diaphragm
- Accuracy 0.075% and 0.005% available
- M20 Female electrical connection
|
PYRP-2000 Pressure Datsheet |
|
PYRP-2000 Differential Datasheet |
- PYRP-28 INDUSTRIAL PRESSURE TRANSMITTER AND PYRD-28 INDUSTRIAL DIFFERENTIAL PRESSURE TRANSMITTER
- 316 Stainless steel wetted parts
- 316 Stainless steel welded diaphragm
- Accuracy 0.2%
- DIN 43650 plug and socket, M20 Female, flying lead or PM12 electrical connection
|
PYRP-28 Datsheet |
|
PYRD-28 Datasheet |
- 1x or 2x SPDT microswitches (DPDT or dual switching)
- Internal adjustment scale
- Housing: 316 SS or anodised aluminium
- IP66 / IP67 rated
- SIL 2 (IEC 61508) compliant
- IP66-rated housing: anodised aluminium or 316 stainless steel
- 1x or 2x SPDT microswitches (simultaneous)
- M20 entry with integral terminal block
- SIL 2 (IEC 61508) certified
- MOD approved and nuclear compliant
- Optional monitoring resistors
|
Technical Datasheet |
- Compact, robust, reliable, and accurate
- Flameproof Ex db certified (ATEX / IECEx / UKEx)
- Fast installation with flying lead (>300mm) & Ex db gland
- Ideal for wellhead and actuator applications
|
Technical Datasheet |
- Housing: PPS engineering polymer or 316 stainless steel
- Protection: IP66 & IP67
- Switches: 1x or 2x SPDT (simultaneous operation)
|
Technical Datasheet |
- 1x or 2x SPDT microswitches (DPDT, deadband, or dual switching)
- Internal adjustment scale for precision setup
- Housing: 316 stainless steel or anodised aluminium
- IP66 / IP67 rated for environmental protection
- Proven SIL 2 certified (IEC 61508)
- IP66-rated black anodised aluminium or 316 stainless steel housing
- 1x or 2x SPDT microswitches (simultaneous operation)
- M20 entry with integral terminal block
- SIL 2 certified (IEC 61508)
- MOD approved & nuclear industry compliant
- Optional circuit monitoring resistors
|
Technical Datasheet |
- ATEX & IECEx CE Ex II1G Exia IIC
- T6 (-50 to +78°C), T5 (-50 to +93°C), T4 (-50 to +128°C)
- PPS polymer or 316 stainless steel housing, IP66/67
- 1 or 2 SPDT microswitches (simultaneous)
- Connection: DIN 43650, M20 terminal block, 4-pin M12, or flying lead (M20/½” NPT)
- SIL 2 compliant (IEC 61508)
|
Technical Datasheet |

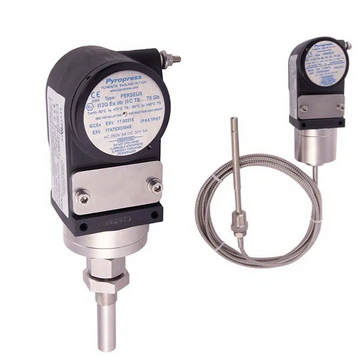

- Ex d flameproof or Ex ia intrinsically safe
- For hazardous media: air, water, gases, chemicals, oil, refrigerants
- OEM use: pumps, compressors, turbines, engines
- Widely used in oil & gas, petrochemicals
- Sensor types: rigid stem or capillary
|
TF61 & TF62 |
|
TF615/TF616/TF625/TF626 |
- Black anodised aluminium alloy housing, IP66/67 rated.
- 1 x SPDT microswitch or 2 x SPDT microswitches for simultaneous settings.
- M20 electrical entry.
- Rigid stem local mount or remote mount capillary versions.
- Sensor/thermowell lengths from 38 to 1200mm.
- Proven and documented SIL 2 IEC 61508 suitability
|
TF61 & TF62 |
|
TF615, TF625, TF616 & TF626 |
- Epoxy painted aluminium or 316 stainless steel housing
- 316 Stainless steel wetted parts. Other materials available
- Accuracy 0.075% and 0.005% available
- M20 Female
|
Technical Datasheet |
- Epoxy painted aluminium or 316 stainless steel housing
- 316 Stainless steel wetted parts. Hastelloy and others available
- Accuracy 0.075% and 0.005% available
- M20 Female
|
Technical Datasheet |
- 1 x SPDT microswitch or 2 x SPDT microswitches (simultaneous or adjustable) with adjustable deadband option.
- Internal adjustment scale
- 316 stainless steel or black anodised aluminium switchcase to IP66 & IP67 standards
- Proven and documented SIL 2 IEC 61508 suitability
|
Technical Datasheet |
- 1 x SPDT microswitch or 2 x SPDT microswitches (simultaneous or adjustable) with adjustable deadband option.
- Internal adjustment scale
- 316 stainless steel or black anodised aluminium switchcase to IP66 & IP67 standards
- Proven and documented SIL 2 IEC 61508 suitability
|
Technical Datasheet |
