PYROPRESS

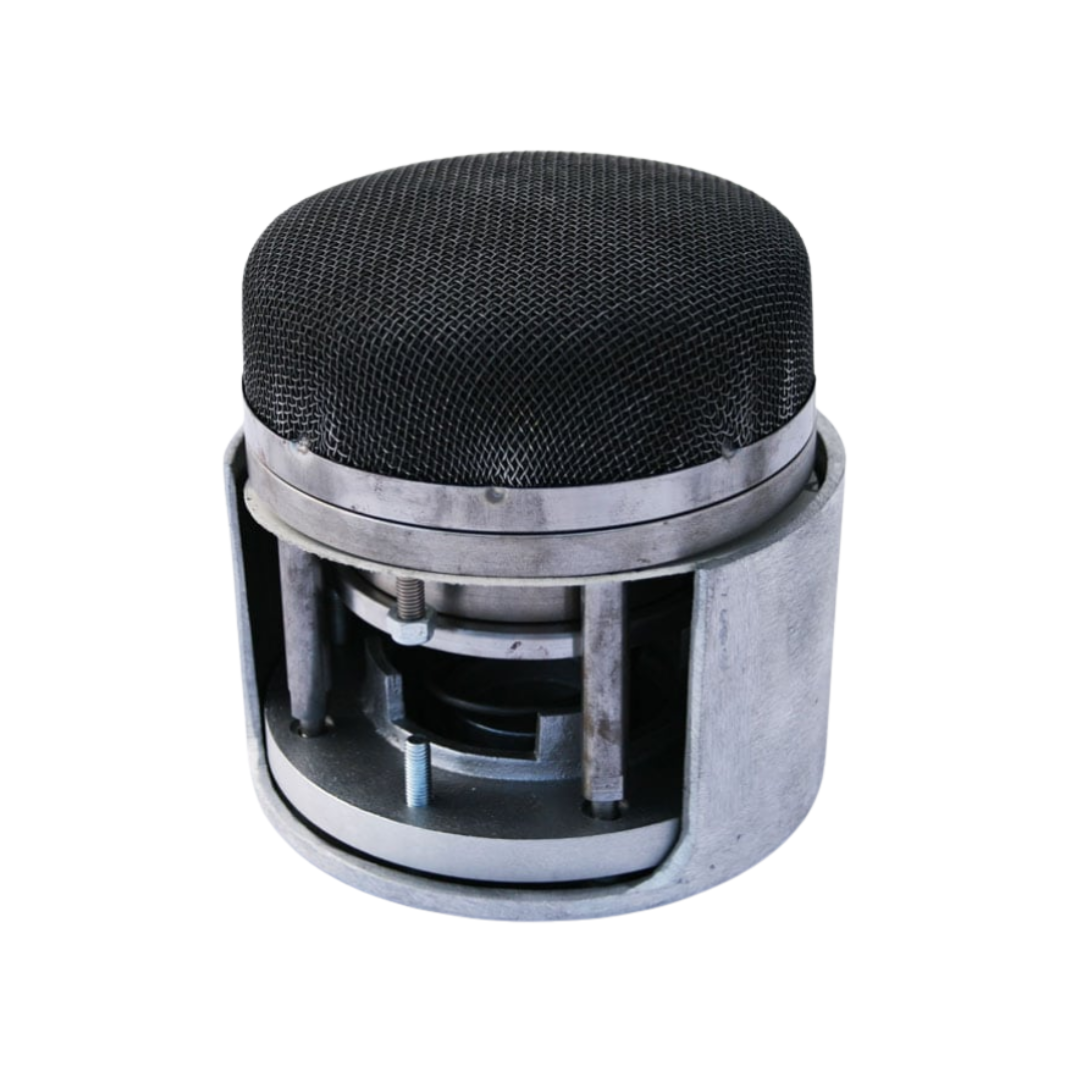

Crankcase Explosion Relief Valve
- Sizes available from 80mm to 300mm.
- Flametrap patented by BICERI.
- Proven in service for a long life and efficiency.
- Safety deflecting cover.
- Robust and durable in the most adverse conditions.
- Custom design ability.
- Options available for exhaust/high temperature applications.
- Cover: Cast aluminium.
- Carrier: Cast iron.
 |
Technical Datasheet |
£0.00
In Stock
Sold out
- Description
- Downloads
Description
The MX Series Crankcase Explosion Relief Valve is designed to safely vent excess pressure from engine crankcases, protecting equipment and personnel from potential explosions. Featuring a spring-loaded, stemless valve with a Nitrile seal for frictionless operation, it also includes an oil-wetted wire gauze flame trap—proven as the most effective method for flame suppression. Available in sizes from 80mm to 300mm, with opening pressures between 0.08 and 4.5 kg/cm², this valve suits a wide range of engine sizes. Built from cast aluminium and iron, and customisable for special applications, the MX Series ensures safe, reliable performance in the harshest environments.
Downloads
