Description

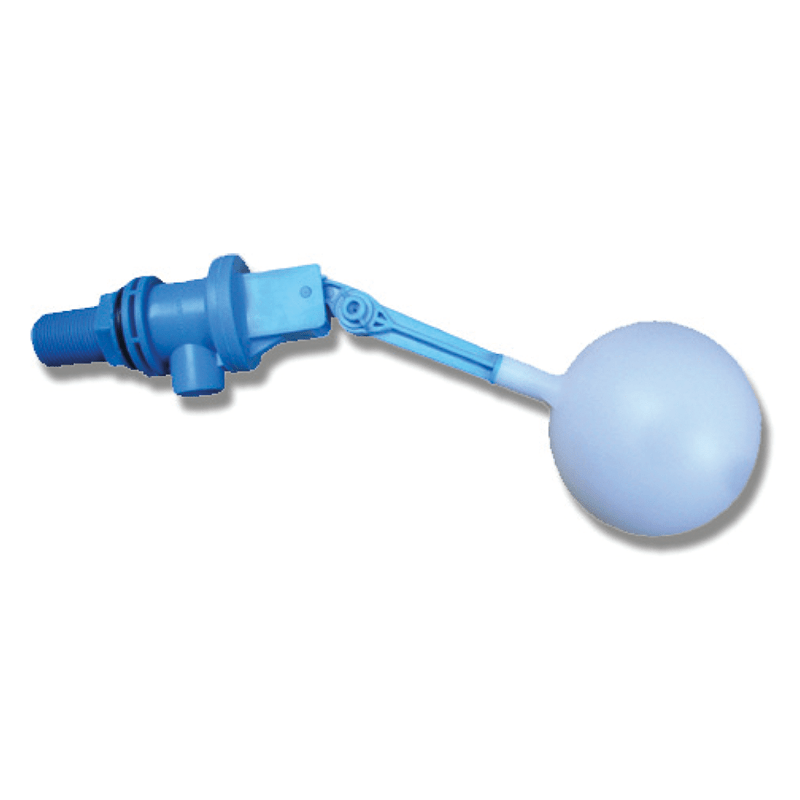

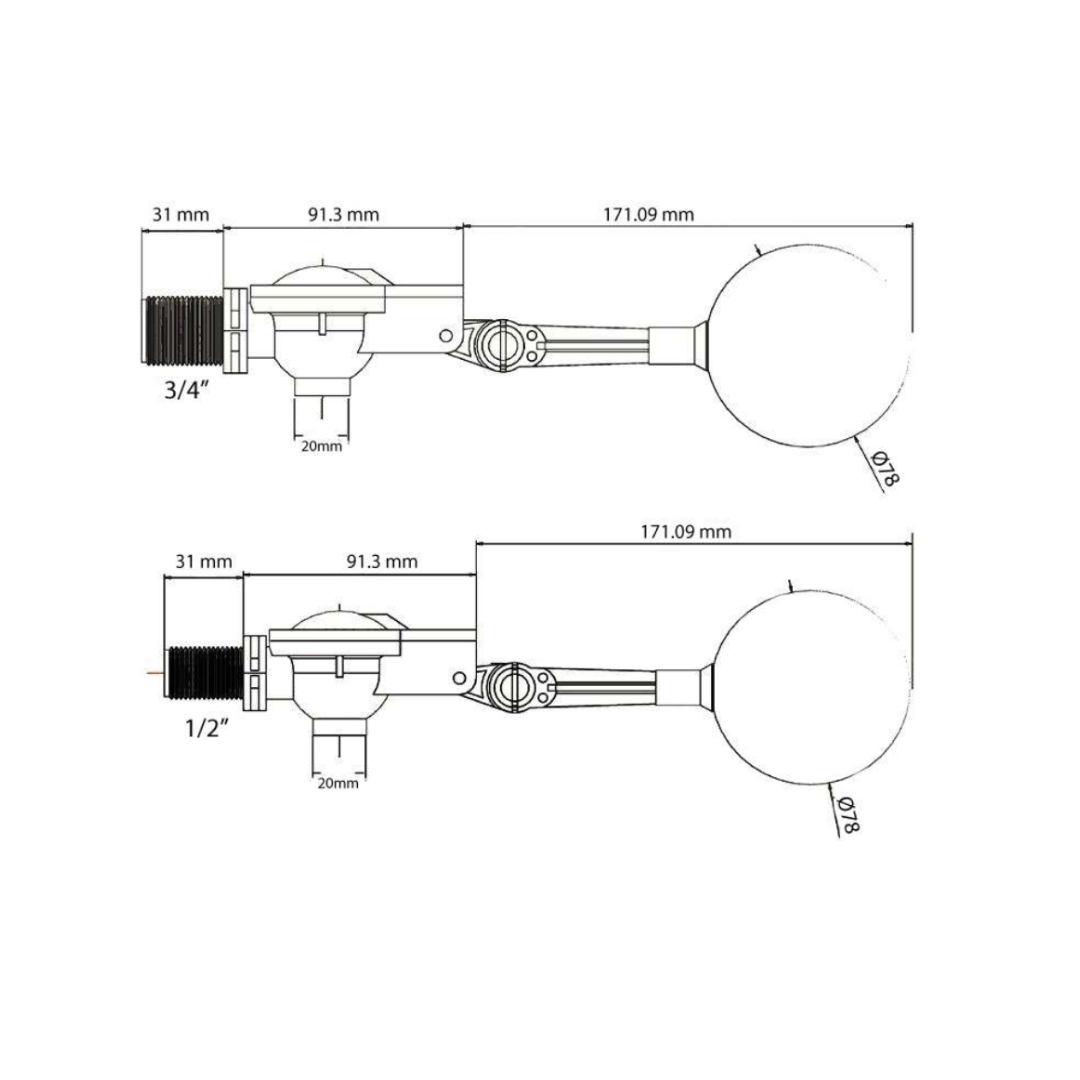

The AQT20/25 CY float valve, is a high-quality water control solution ideal for tanks, troughs, and various water supply systems. Available in 3/4” (AQT20CY) and 1” (AQT25CY) BSP thread sizes, both models feature durable ABS valve bodies with PE balls and NR plugs, ensuring reliable performance under pressures from 0.05 to 1.2 MPa and temperatures between -35ºC and +75ºC.
Designed with a quick stop mechanism to eliminate water hammer, this valve delivers a superior flow rate compared to traditional brass or stainless steel alternatives. Its food-grade materials are corrosion-resistant, rustproof, and UV-stabilized, making it suitable for fresh and seawater applications.
The adjustable arm allows installation in both vertical and horizontal water settings. Widely used across agriculture, aquatic systems, cooling towers, and fountains, this float valve offers durability, versatility, and efficient water management.
Downloads
 |
Technical Datasheet |
Product Catalogue
