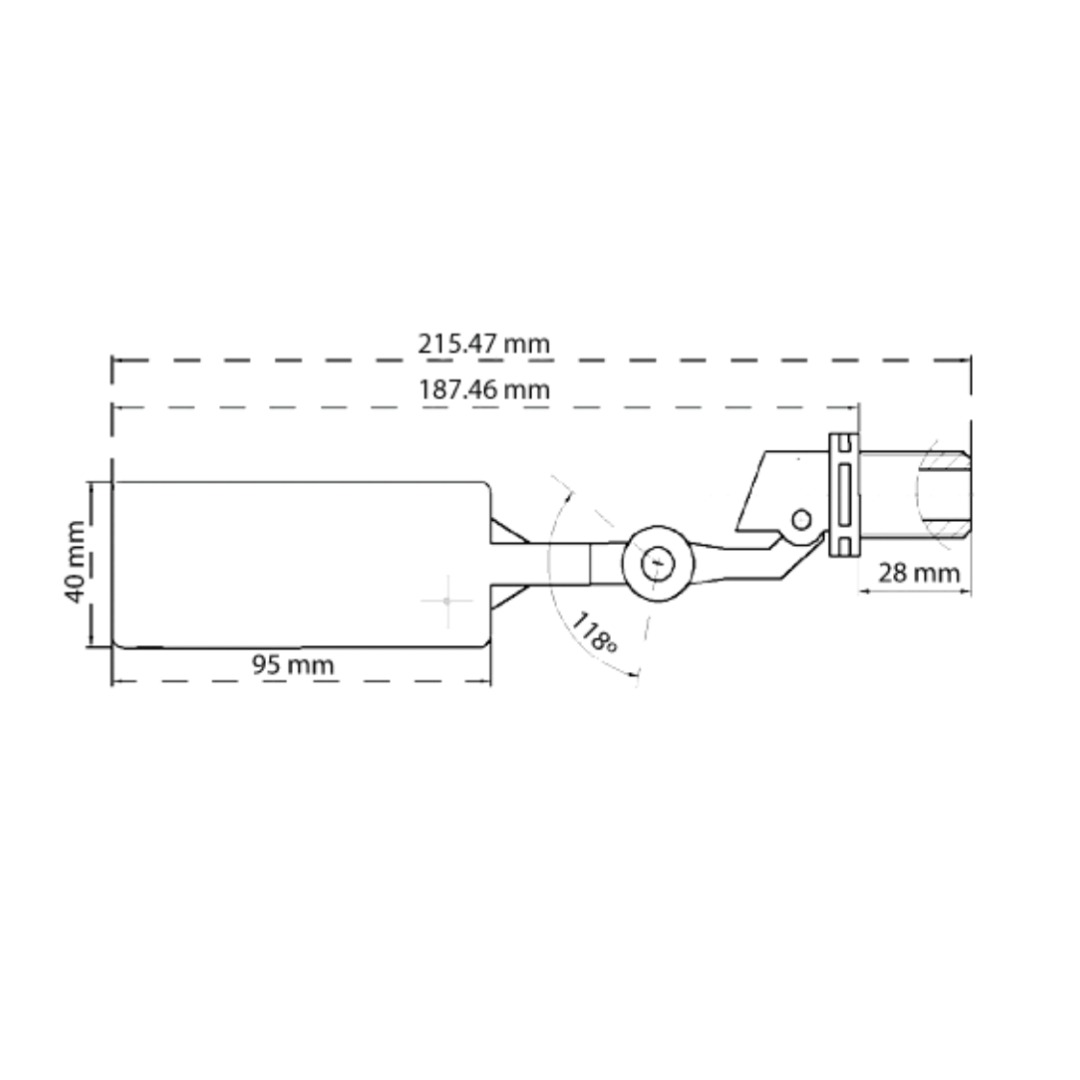

AQT MI 15 W Float Valve
- Thread Size: 1/2” BSP to 3/4” BSP
- Valve Material: ABS
- Ball Material: PE
- Ball Diameter: 39mm
- Plug Material: NR
- Pressure: 0.1-1.0 MPa
- Water. Temp: 35ºC to +75ºC
- Flow Rate: 4.5 (P=0.6 Mpa)
- Length (max): 18.7cm
- Description
- Downloads
- Product Catalogue
The AQTMI15W float valve, distributed by PVL Ltd, is a compact and reliable solution designed primarily for small animal auto-watering systems and ice makers. Featuring a durable ABS valve body and PE ball with a 39mm diameter, this valve offers excellent corrosion resistance and longevity. The plug is made from NR (natural rubber), ensuring a tight seal and smooth operation.
With a pressure rating of 0.1 to 1.0 MPa and a water temperature range from -35ºC to +75ºC, it provides a steady flow rate of 4.5 L/min at 0.6 MPa. Measuring 18.7cm in length, its compact size allows easy installation in tight spaces.
The valve includes an adjustable screw on the arm, enabling versatile mounting either horizontally or vertically. All materials used are food grade, making it safe for potable water applications. Ideal for precise water control in small-scale systems.
