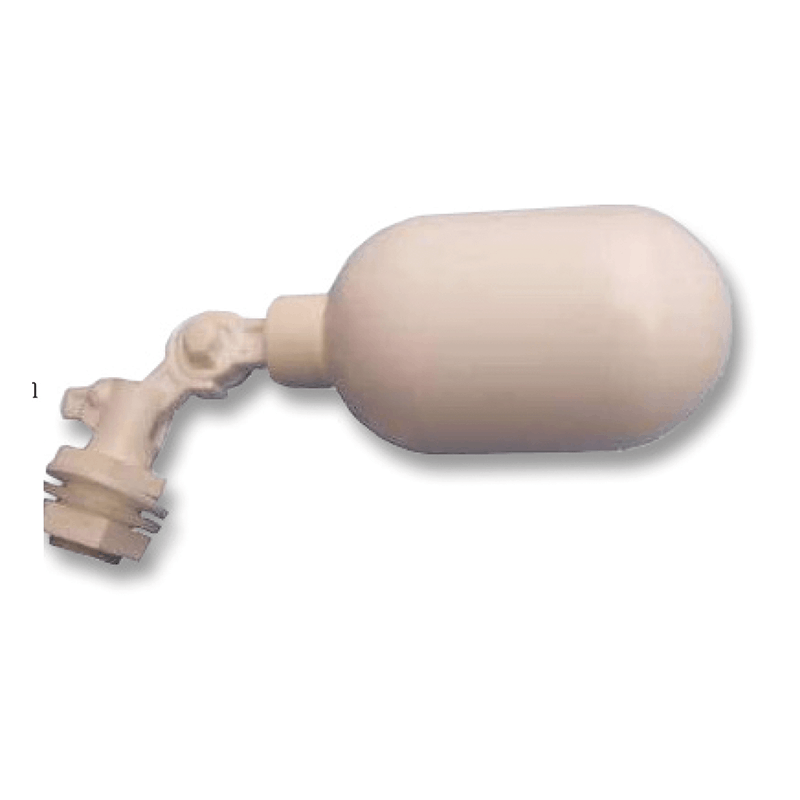

AQT-12A Float Valve
aqt_12a_main
AQT-12A Float Valve
AQUA TECH TRADING

AQT-12A Float Valve

  • Thread Size: 3/8” BSP
  • Valve Material: POM
  • Ball Material: POM
  • Ball Diameter: 38mm to 69mm
  • Plug Material: NR
  • Pressure: 0.6MPa to 0.8MPa
  • Water. Temp: 80ºC
  • Flow Rate: 5.0 L.P

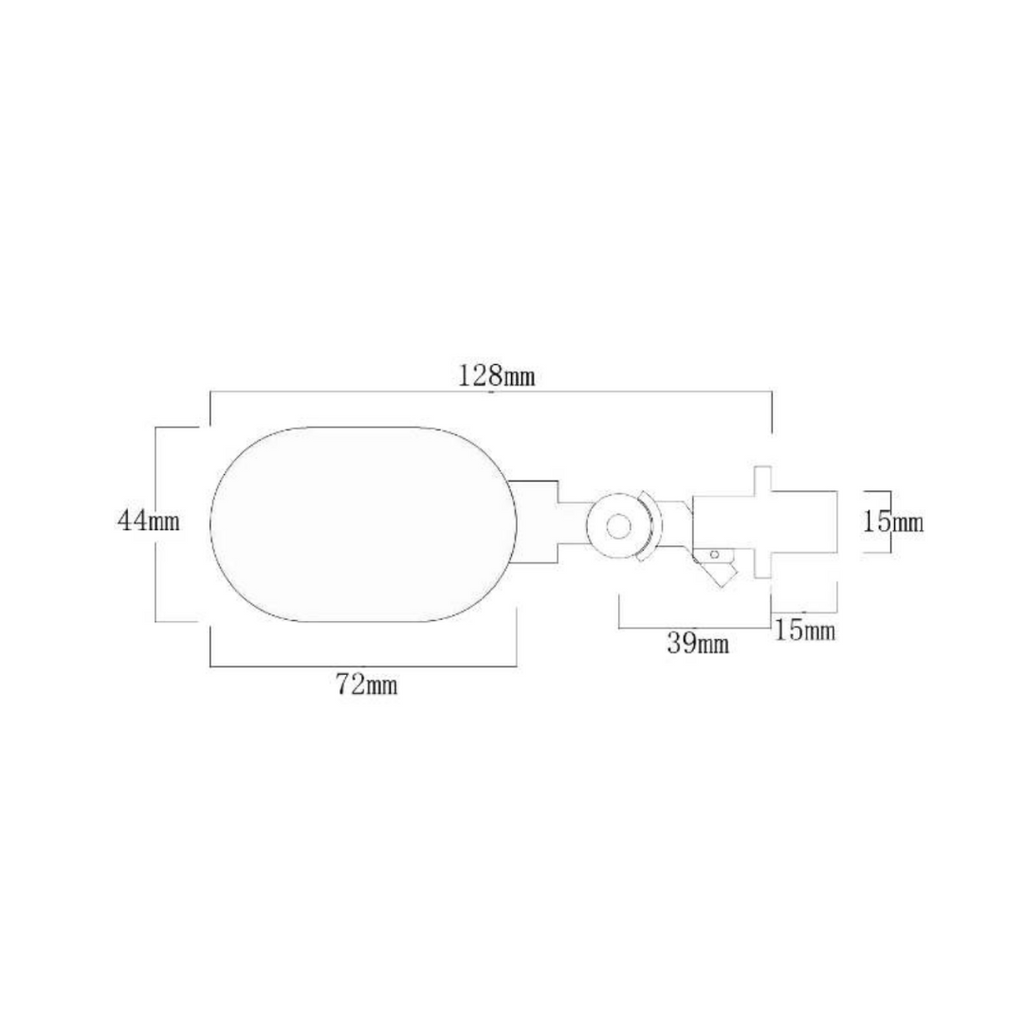

  • Length (max): 7.5cm to 12.0cm
£0.00 In Stock Sold out

The AQT12A float valves, are compact and efficient solutions designed for small water supply systems with limited space. Both models feature durable POM valve bodies and balls, with NR plugs, supporting water pressures up to 0.8MPa and temperatures up to 80ºC. The AQT12A has a 3/8” BSP thread size and a 69mm ball diameter, while the AQT-Mini is even smaller with a 38mm ball diameter and the same 3/8” BSP thread. Both offer a flow rate of 5.0 L.P and can be installed horizontally or vertically. Standard internal thread is 1/4” BSP, with external thread options of 3/8” BSP for AQT12A and 1/2” BSP for AQT-Mini. Each valve comes with a special adapter for rubber pipes, ensuring easy connection in tight spaces. Ideal for compact tanks, water equipment, and precise water control applications.
