Diaphragm Valves


700 Series Diaphragm Valves 700 Series Diaphragm Valves 700 Series Diaphragm Valves 700 Series Diaphragm Valves 700 Series Diaphragm Valves
Chemline

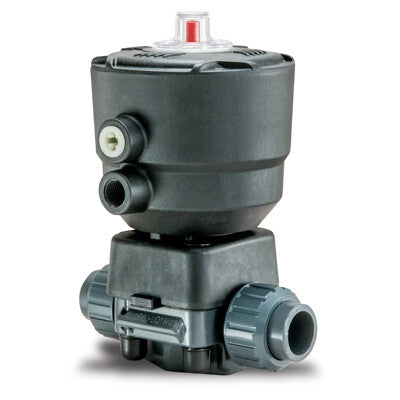

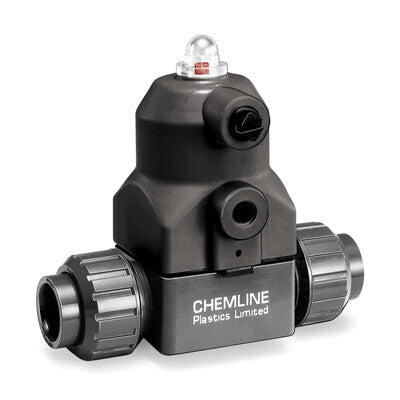

700 Series Diaphragm Valves
  • Series: 700 Sizes: 3/8″- 4″
  • Ends: True Union Socket, Threaded or ChemFlare™, Spigot Bodies with Plain, Socket, Threaded or Flanged ends
  • Diaphragms: EPDM, FKM-B (Viton®), or PTFE
HD Series Hybrid Fluoropolymer Lined Diaphragm Valves HD Series Hybrid Fluoropolymer Lined Diaphragm Valves
Chemline

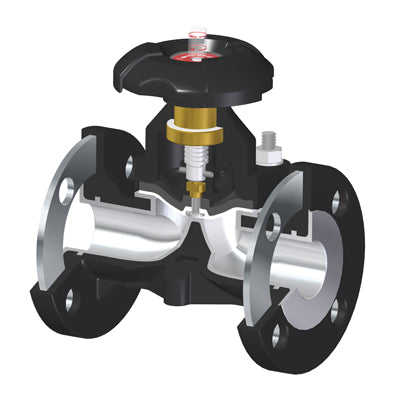

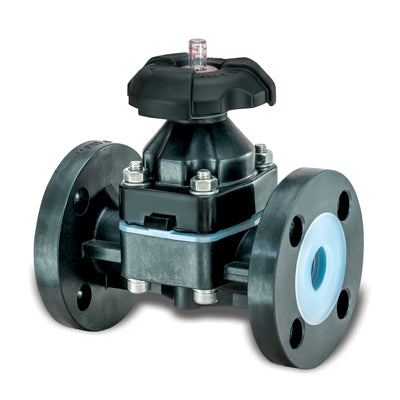

HD Series Hybrid Fluoropolymer Lined Diaphragm Valves
  • Series: HD
  • Sizes: 1/2″ – 6″
  • Ends: Flanged
  • Body: PPG or PPSG
  • Lining: PFA or PVDF
  • Diaphragm: 3-Piece PTFE/TFM/EPDM
  • Operation: Manual or Pneumatically Actuated
Type 14/15/72 Diaphragm Valves Type 14/15/72 Diaphragm Valves Type 14/15/72 Diaphragm Valves Type 14/15/72 Diaphragm Valves
Chemline

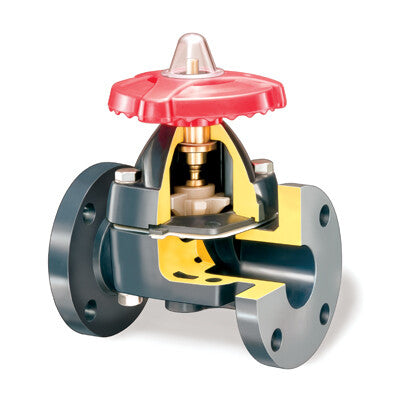

Type 14/15/72 Diaphragm Valves
  • Series: Type 14/15/72
  • Sizes: Type 14: 1/2″- 4″ Type 15: 5″ – 6″ Type 72: 8″ – 10″
  • Ends: Flanged: 1/2″ – 10″
  • True Union Socket, Threaded or Butt: 1/2″ – 2″
  • ChemFlare: 1/2″ – 1″
  • Diaphragms: EPDM, or PTFE
Type 16 Diaphragm Valves Type 16 Diaphragm Valves
Chemline

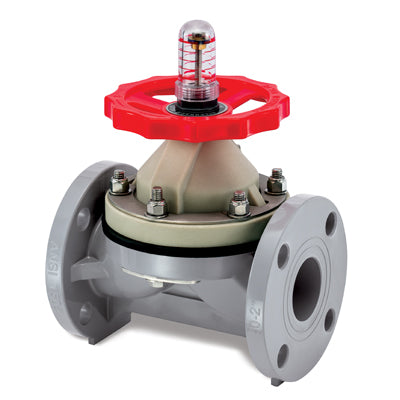

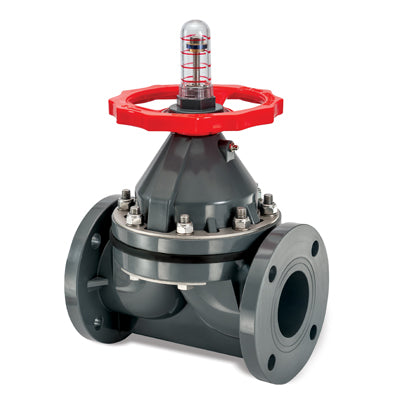

Type 16 Diaphragm Valves
  • SERIES: Type 16
  • SIZES: 1/2” to 10”
  • ENDS: Flanged
  • DIAPHRAGMS: EPDM, PTFE1
