Universal-Transmitter PMT 50
- Signal conditioning – Linearisation – Characteristic adjustment
- Input for standard signals 0/2..10 V and 0/4..20 mA
- Measuring range programmable
- Linearisation and characteristic adjustment programmable via 32 bases
- Automatic input fault detection
- Description
- Downloads

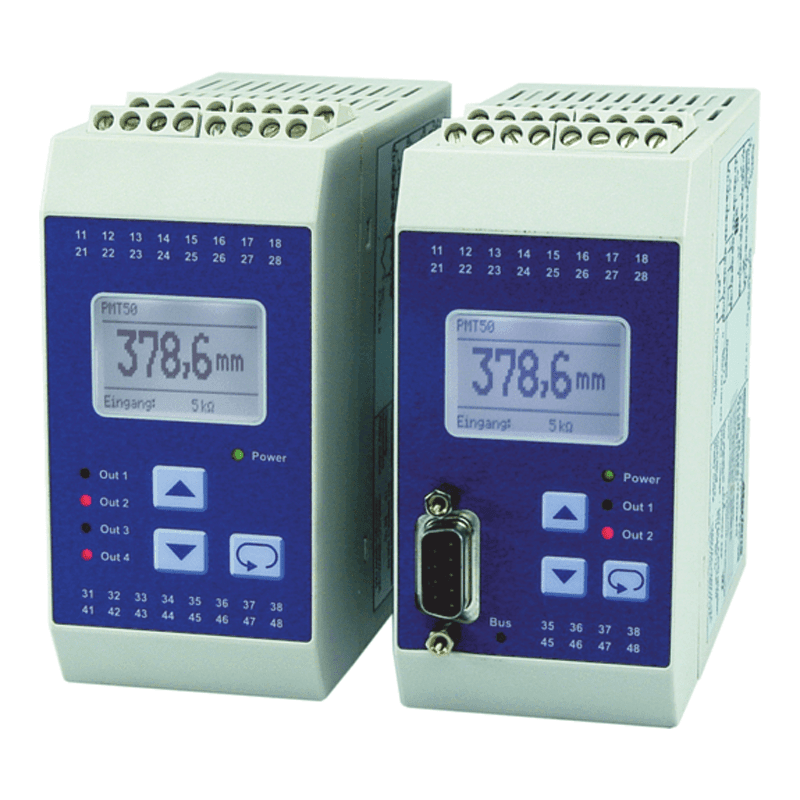

The PMT 50 Universal Transmitter from Martens is a versatile, high-performance solution for converting and conditioning analog signals. Designed for industrial applications, it accepts standard input signals of 0/2…10 V or 0/4…20 mA and delivers precise analog outputs of 0/4…20 mA or 0/2…10 V DC.
Its advanced programming capabilities allow users to define measurement ranges and apply linearisation or characteristic curve adjustments via 32 programmable base points—ideal for matching a wide variety of sensor curves. An integrated 24 V DC transmitter supply (max. 30 mA) supports both 2- and 3-wire transmitters.
Additional features include a built-in simulator function for testing, automatic input fault detection for added reliability, and four configurable alarm outputs for monitoring and control tasks. An optional serial interface provides enhanced communication flexibility.
Compact, configurable, and robust, the PMT 50 ensures accurate signal conditioning in automation, process control, and instrumentation systems.
