MARTENS
Martens have the right technology to monitor, manage, and regulate operations. At Martens Center of Competence in Barsbüttel, near Hamburg, they develop and produce tough and durable components for demanding processes and industrial technologies.
In this regard, the quality mark "Made in Germany" denotes the high quality of our technical solutions and the company's inventiveness. There's a reason why the delivery and production programme includes digital indicators, measuring transducers, evaluating devices, and sensors - the whole range of contemporary analytical and industrial measuring technology.
Martens address customer-specific requirements with carefully tailored equipment. The versatility of their products is visible in a broad range of applications: From building technology and plant engineering to the food industry, their devices measure, monitor, and control a wide variety of technical processes.
Almost every physical variable can be measured, recorded, and analysed. Quality is a fundamental characteristic of PVL. We believe care to be the most important aspect when sourcing products for our customers, which is why we work with Martens.

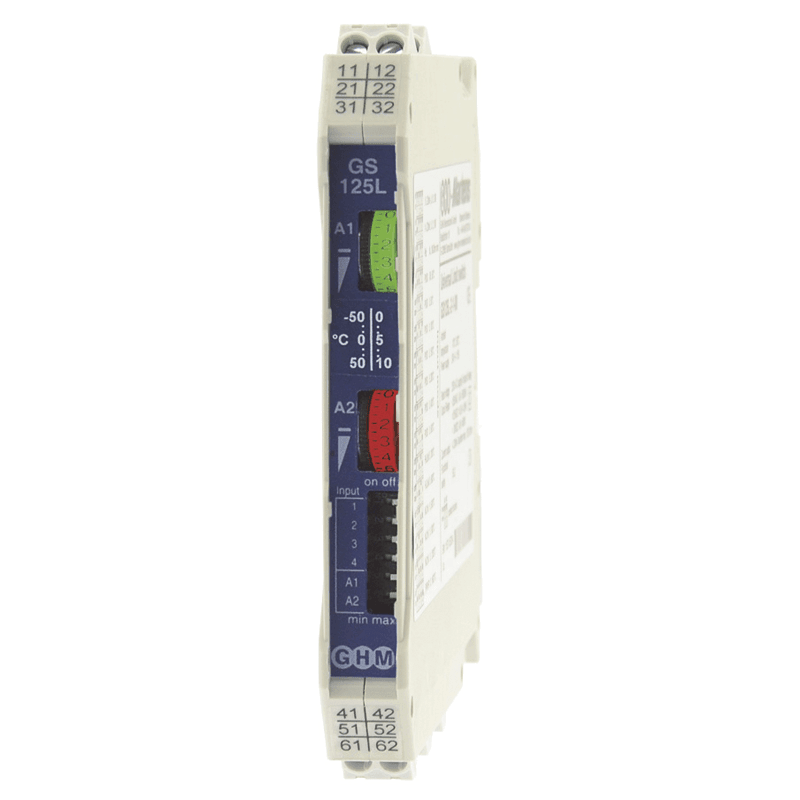

- Universal input for unit signals
- Pt100, thermocouple, potentiometer, switchable via front-side DIP switch
- 1 or 2 relay outputs
- Universal relay connection
- Adjustable min/max contact function
- Actual value output 4 .. 20mA
- 2-colour illuminated scales for limit value adjustment, colour depends on switch status
- With Pt100 sensors, monitoring of sensor break and short-circuit
- Wide-range mains adapter or 24 V DC
- Functional safety up to SIL2
- Housing width 12.5 mm
- Removal coded terminals
- Carrier rail mounting TS35 EN60715
- Safe galvanic isolation between input / output / auxiliary voltage
- Current : 0/4..20 mA selectable, Ri = 25 Ω overload max. 100 mA
- Voltage : 0/2..10 V DC selectable, Ri approx. 40 kΩ, overload max. 100 V
- Supply voltage : 230 V AC ±10 %; 24 V DC ±20 %
- Frequency AC : 47..63 Hz
- Power consumption : <1.5 VA
- Operating temperature : -10..+60 °C
- CE- conformity : EN 61326-1:2013, EN 60664-1:2007
- Explosion protection : Approval: TÜV 03 ATEX 2283
- Marking : II (1) G [Ex ia] IIC bzw. II (1) D [Ex iaD

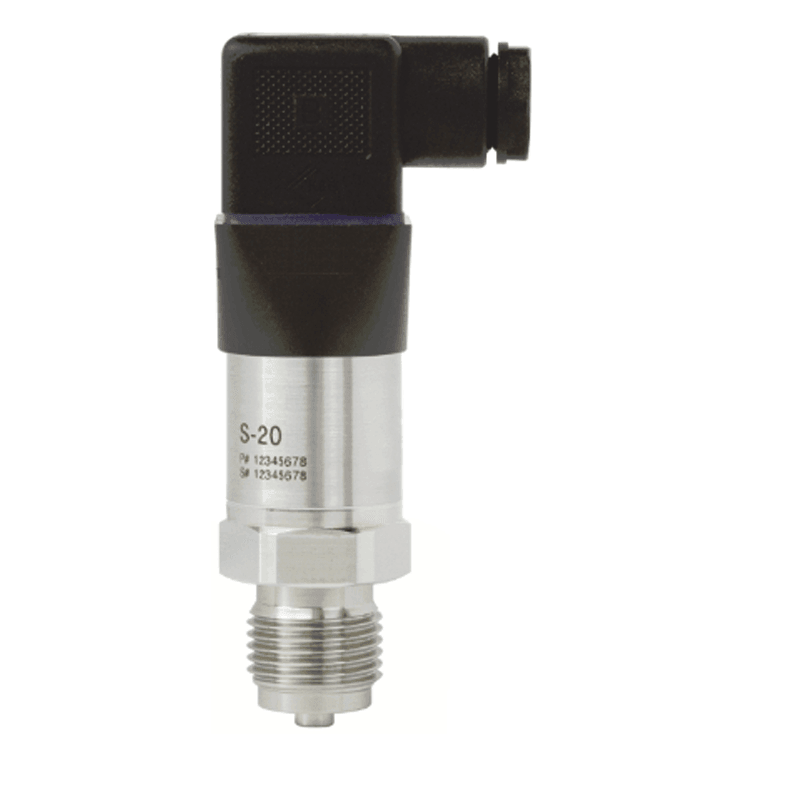

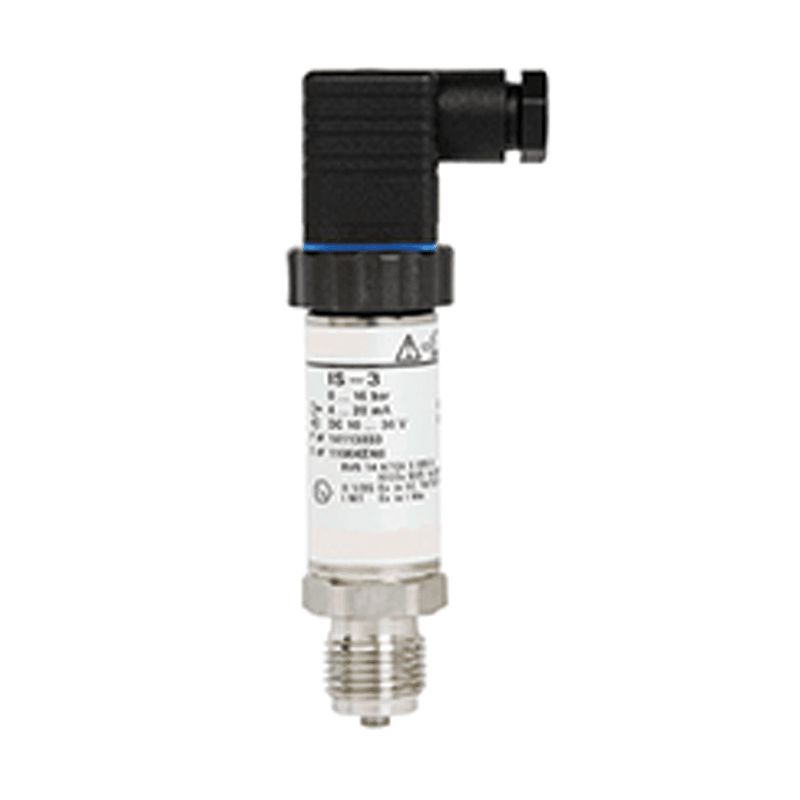

- Measuring ranges -1…1000 bar
- Output: 4..20 mA
- ATEX-approved
- Devices for Ex areas
- Measuring ranges -1…1600 bar
- Output: 0 or 4..20 mA
- Process temperature max 150 °C

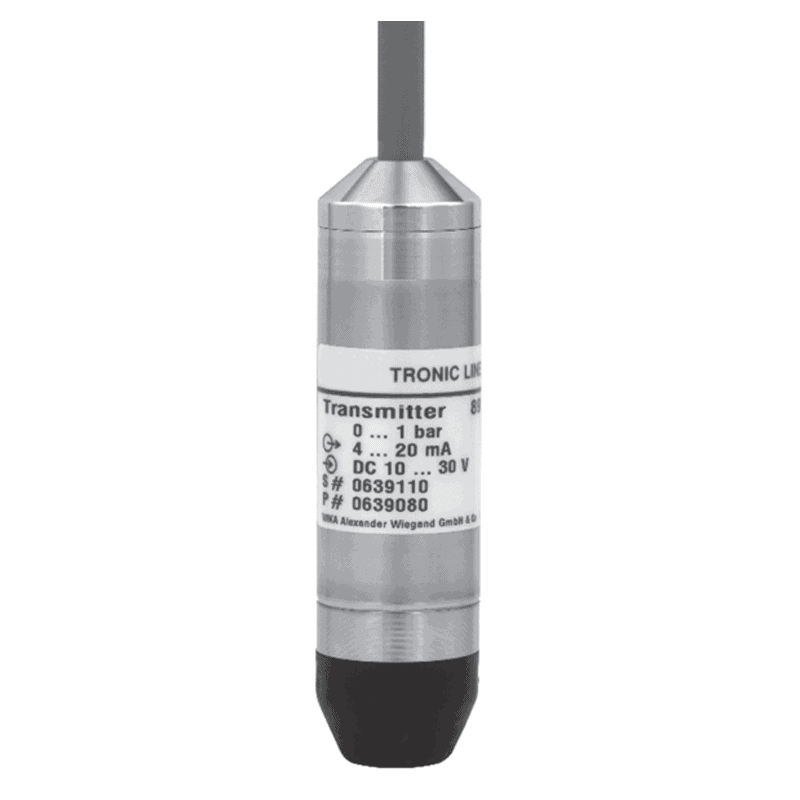

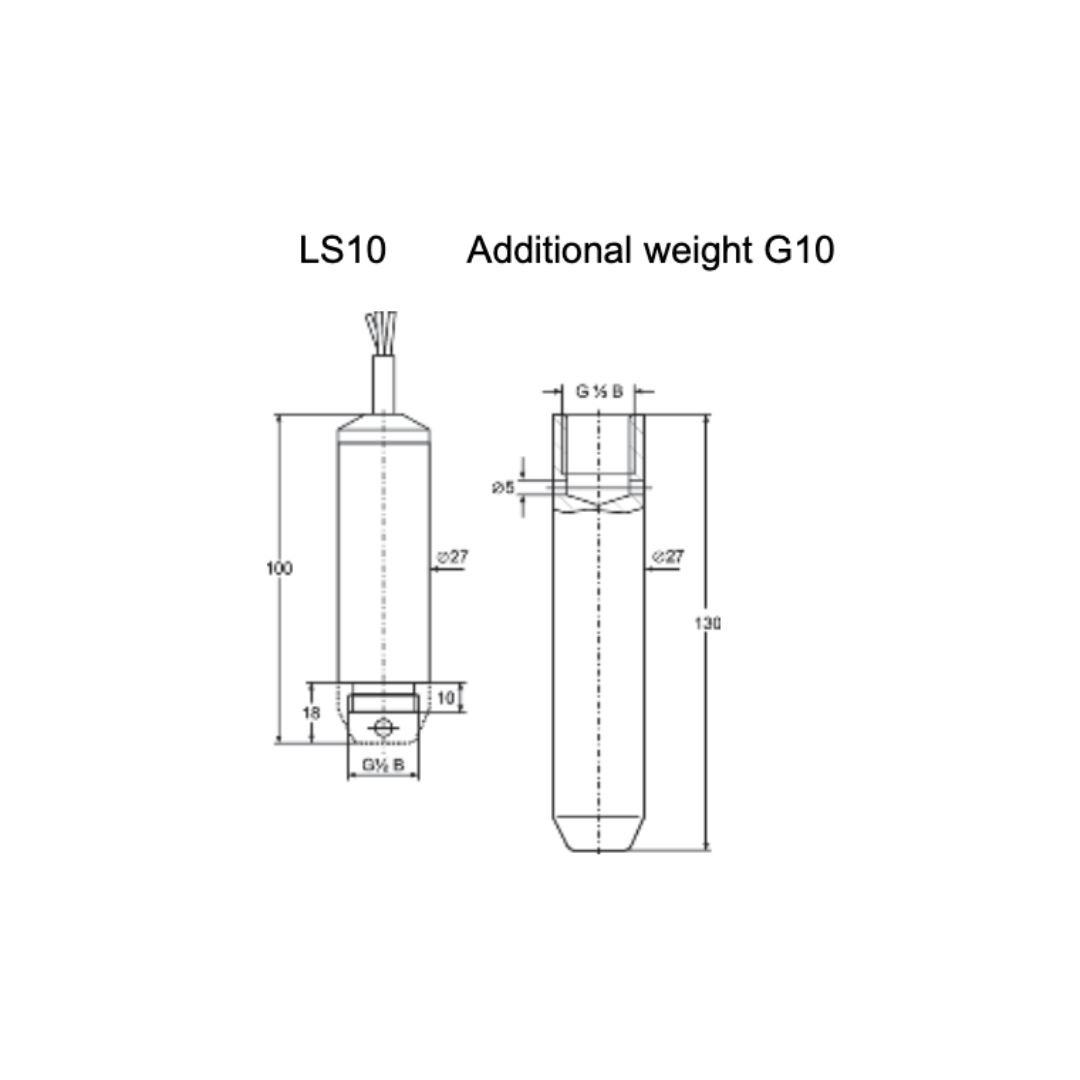

- Measuring range 100 mbar to 10 bar
- Immersion depth: max. 100 m
- Analog output 4..20 mA
- For drinking-, process-water, oil
- Process temperature -10..+60 °C
- Protection class IP68, depth of immersion max. 100 m

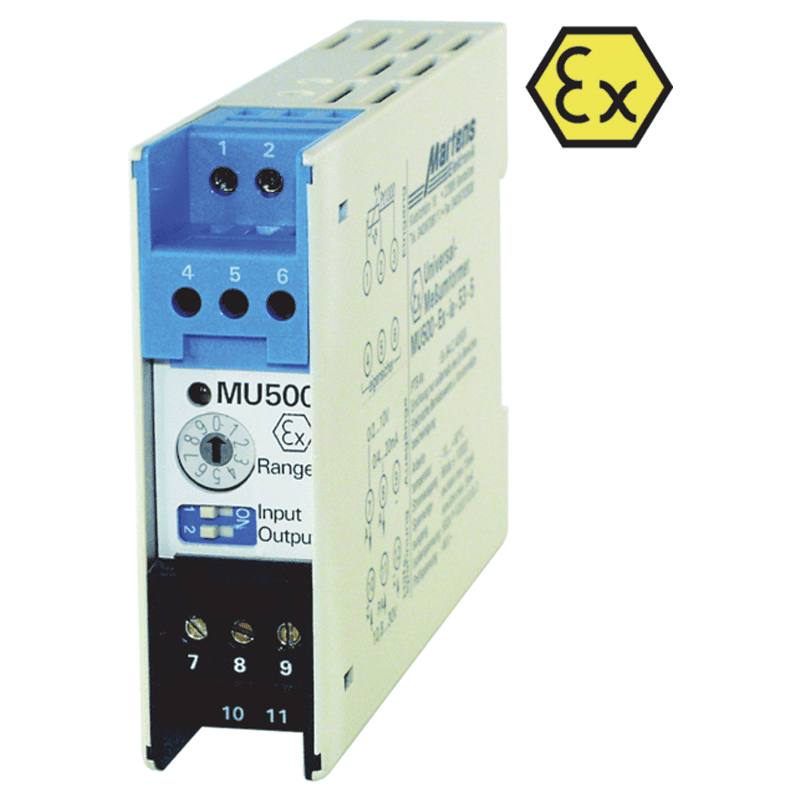

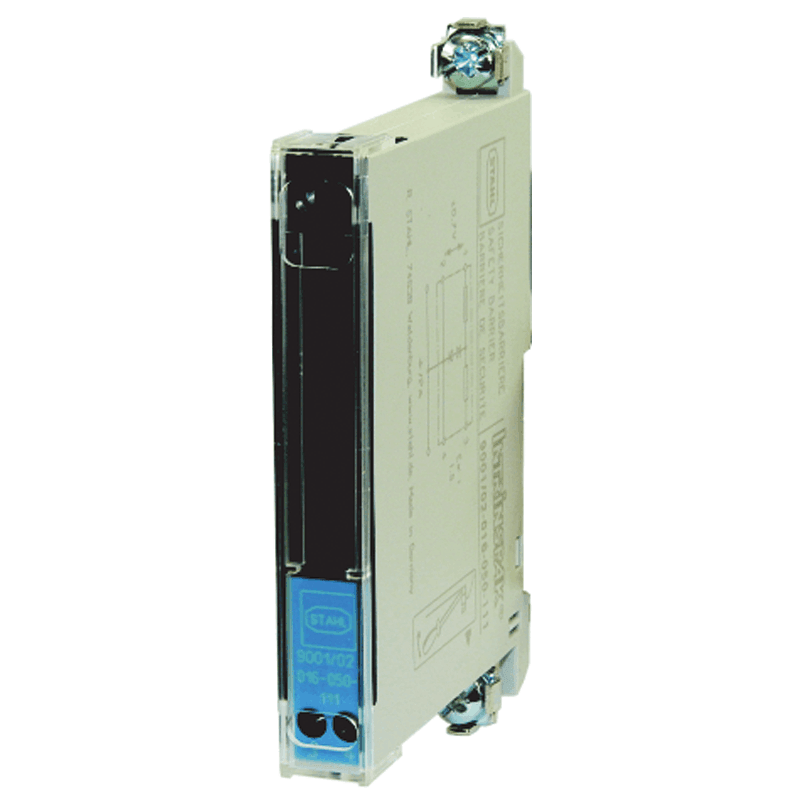

- Intrinsically safe use of Pt100 sensors
- Intrinsically safe use of 0(4)…20 mA sensors
- Intrinsically safe use of 4…20 mA, loop-powerd indicators
- Offers intrinsically safe inputs for direct connection of temperature probes
- Simple programming
- 2 alarm outputs

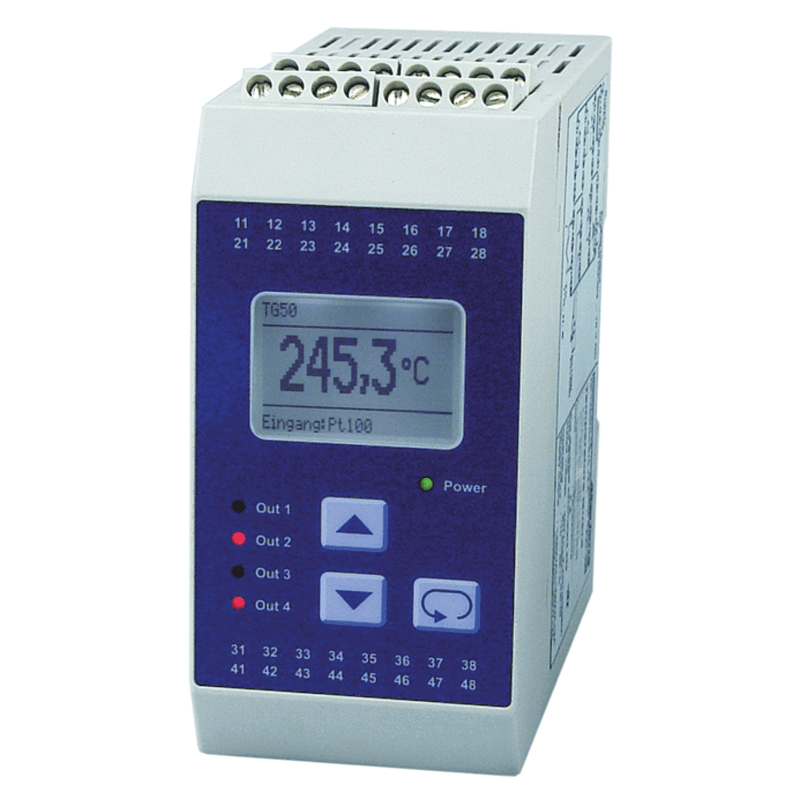

- Pt100, Pt1000 and thermocouple
- Pt100, Pt1000 and thermocouple
- Up to 4 alarm outputs
- LCD display with plain text
- Thermoelements J, K, S
- Pt100 Elements
- 0/2..10 V und 0/4..20 mA
- 4..20 mA analogue output
- Transmitter for electrical signals

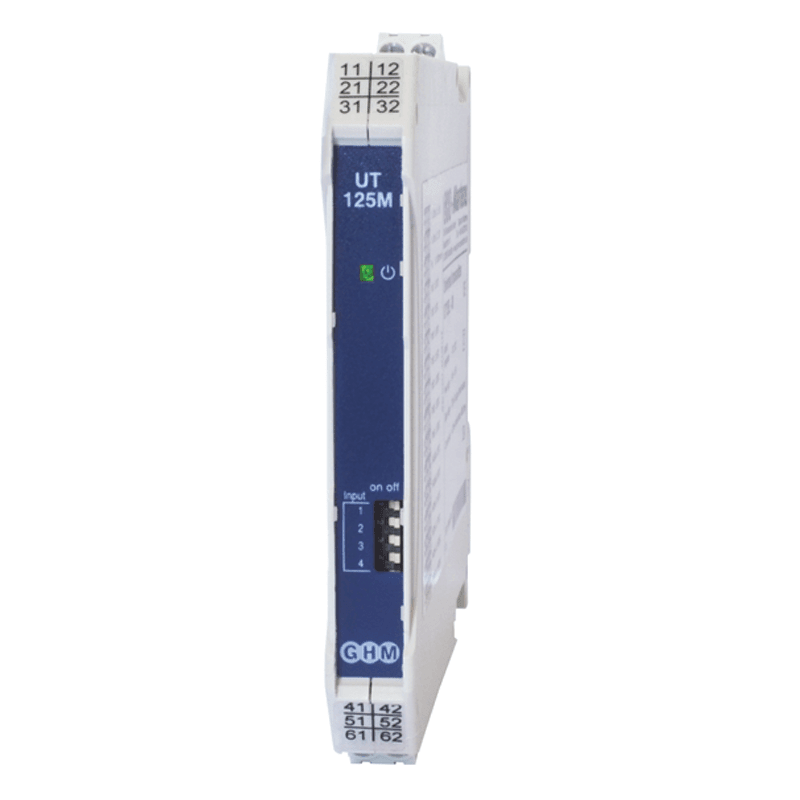

- Universal input for standard signals, Pt100, thermocouple, potentiometer
- Configuration via front-side DIP switch
- Wide-range power supply or 24 V DC
- Housing width 12.5 mm
- Removal coded screw terminals
- Carrier rail mounting TS35 EN60715
- Thermoelements J, K, S
- Pt100 / Pt1000 / NTC resistance measurement
- 4..20 mA analogue output

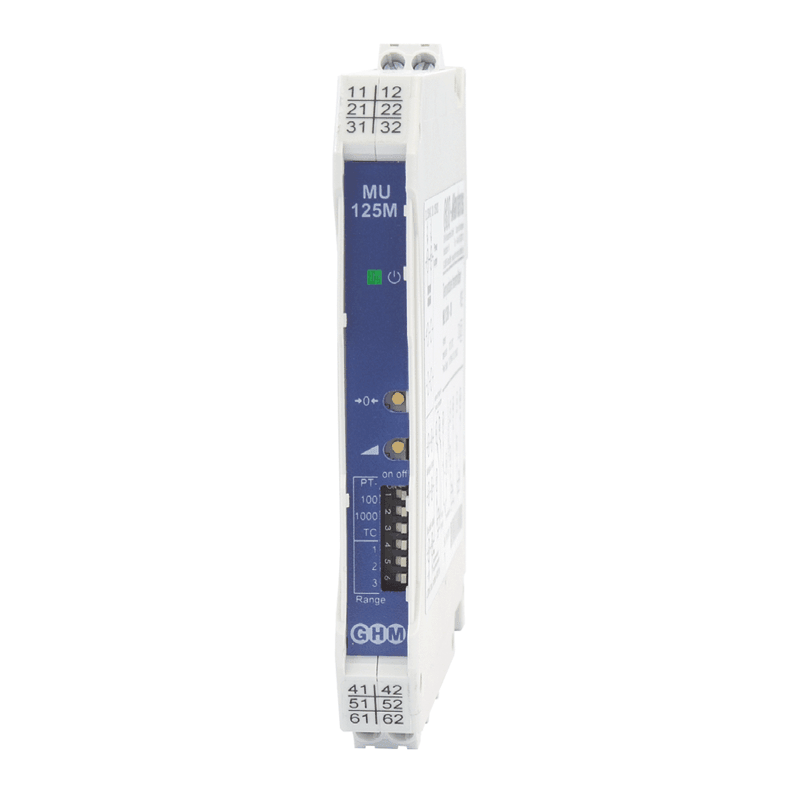

- Universal input for Pt100, Pt1000, thermocouple, NTC and resistance measurement value
- Configuration via front DIP switches
- Analog actual value output 4 .. 20mA
- Zero point and limit value can be adjusted via trim potentiometers on the front
- Wide-range mains adapter or 24 V DCa
- Optional supply via carrier rail bus
- Removable coded screw terminals or optional push-in terminals

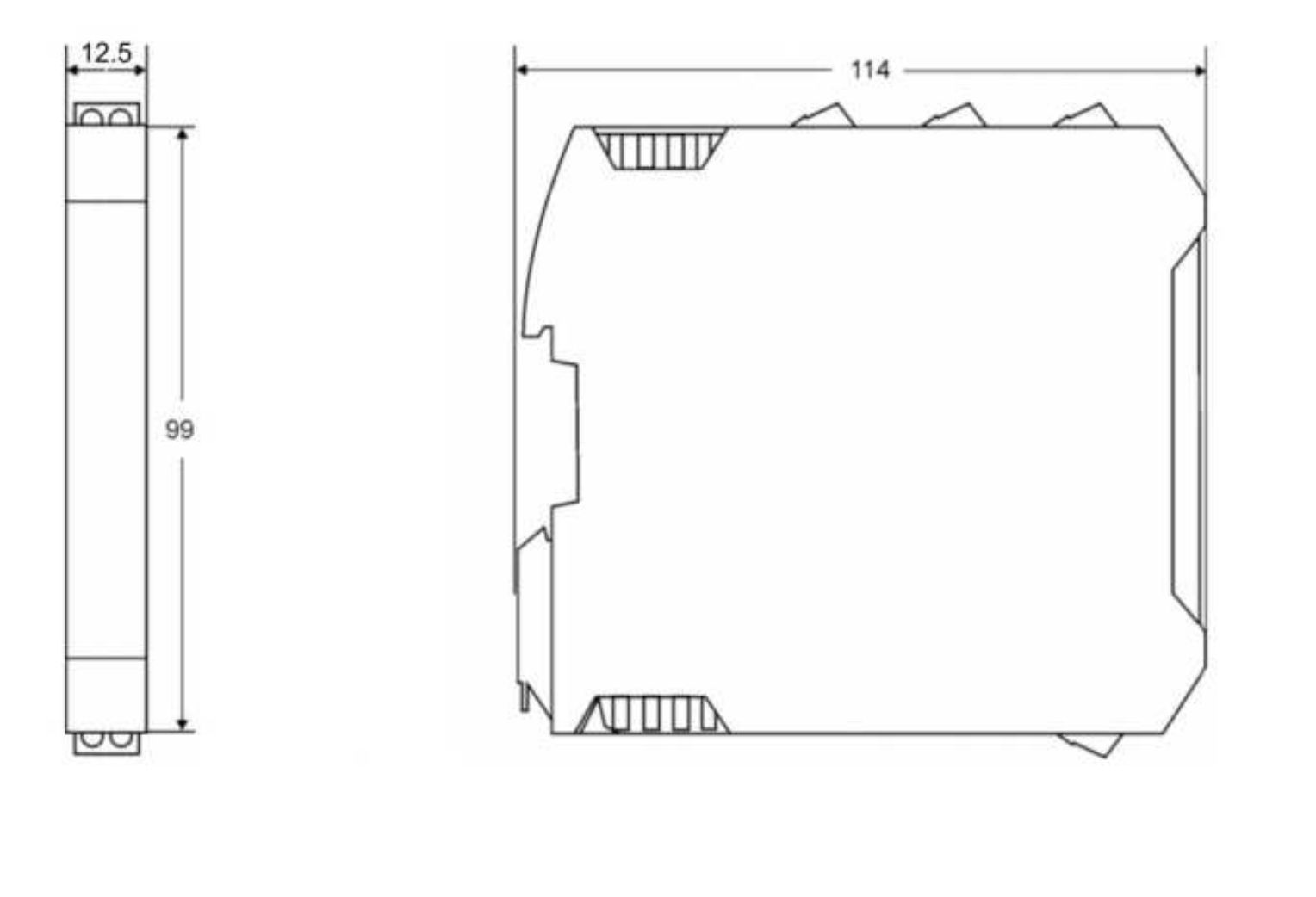

- Housing width 12.5 mm
- Carrier rail mounting TS35 EN60715
- Measuring range programmable from ±99999 Digit
- Unit programmable
- Totalizer programmable
- Output 4..20 mA, loop powered
- Impulse output for external evaluation
- 2 alarm outputs electronic, voltage free
- For dry, non-aggressive gases
- Feed via current loop
- Version for damp media
- LCD text display
- Programming via front side keypad
- Measuring range programmable
- Output 4..20 mA, 2-wire conn

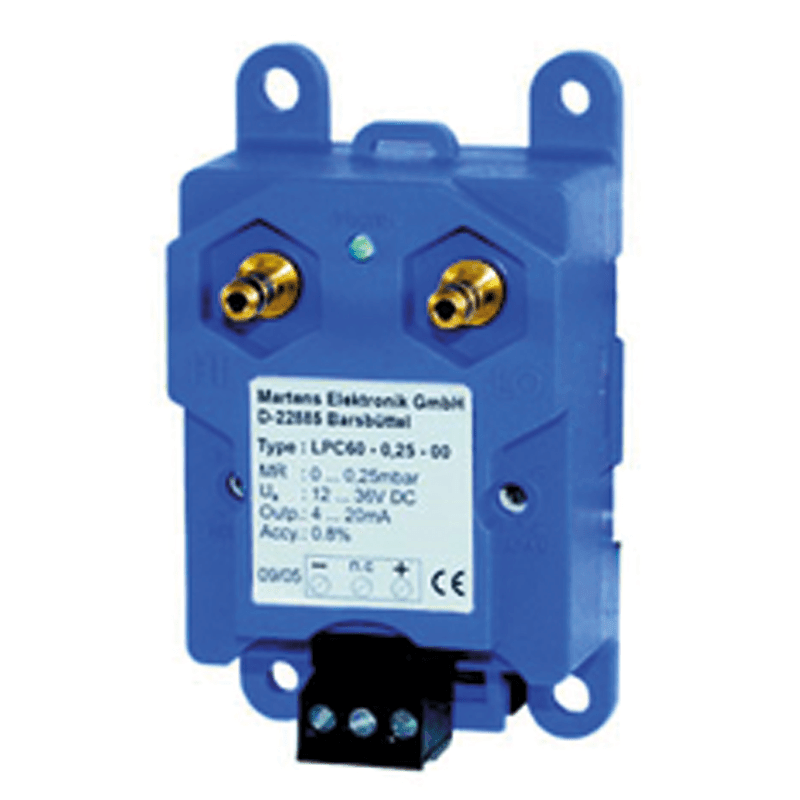

- Measuring range 0,25 to 25 mbar
- Pressure or differential pressure
- Uni- und bidirectional variants
- For dry and non aggressive gases
- Output 4..20 mA, 2-wire technology

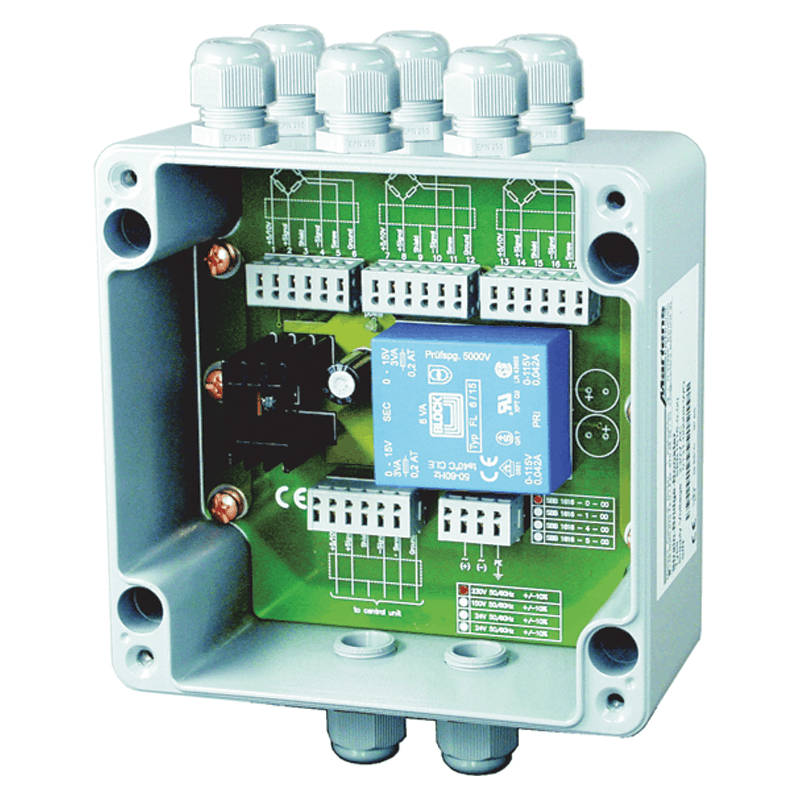

- Bridge supply 2..10 V
- max. 6 DMS strain bridge sensors ≥ 300 Ω at 10 V
- Output current 200 mA max.
- Line compensation up to 1 V
- Protection class IP65

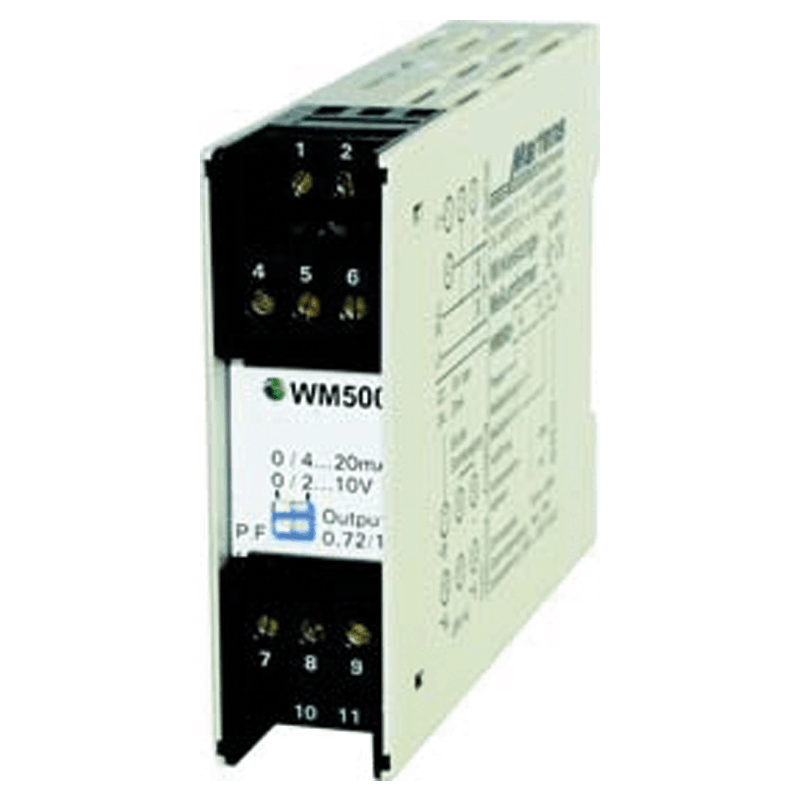

- Current range 1 A or 5 A
- Frequency range 45 ... 400 Hz
- Power-factor (cosφ) switch selectable 0.72 or 1
- Nominal accuracy 0.2 %
- Output 0/4 ... 20 mA or 0/2 ... 10 V switch selectable
- Final value adjustable -30 ... 5 %;
- Full 3-port isolation
- Supply voltage 230 V AC or 24 V DC
- 22.5 mm case for DIN rail mounting

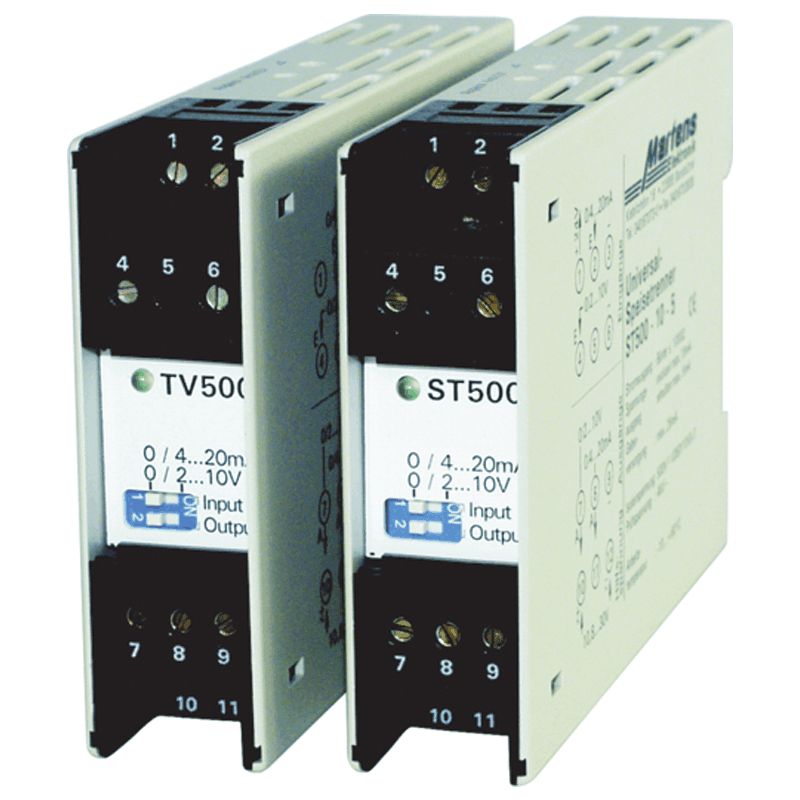

- Switch-selectable inputs 0/4...20mA and 0/2...10V or -20 ... 20mA and -10 ... 10V M
- Switch-selectable outputs 0/4...20mA and 0/2...10V or -20 ... 20mA and -10 ... 10V M
- Increasing or decreasing output characteristic M
- Supply voltage 230V AC or 24V DC M
- Full 3-port isolation M
- Power-on LED M
- 22.5mm case for DIN rail mounting M
- UL-CSA-standard on request

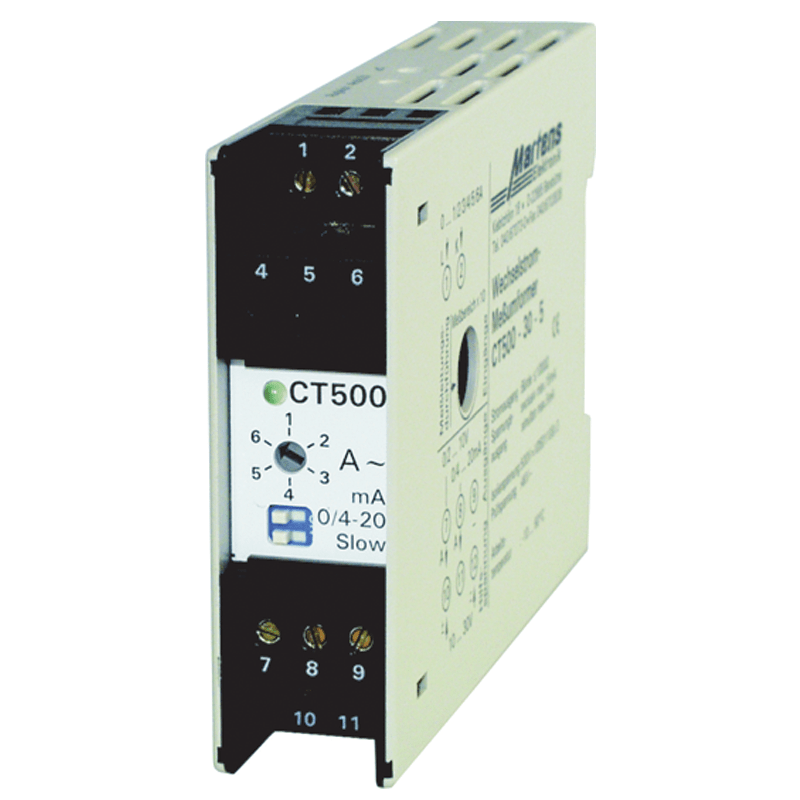

- Measuring ranges 0..1 A / 0..5 A AC
- 1 and 2 channel version
- Frequency range 45..400 Hz
- Arithmetic average value measurement RMS calibrated
- Loop voltage 14..30 V DC
- Switch-selectable inputs 0/4...20mA and 0/2...10V or -20 ... 20mA and -10 ... 10V
- Switch-selectable outputs 0/4...20mA and 0/2...10V or -20 ... 20mA and -10 ... 10V
- Increasing or decreasing output characteristic
- Supply voltage 230V AC or 24V DC
- Full 3-port isolation
- Power-on LED
- 22.5mm case for DIN rail mounting
- UL-CSA-standard on request

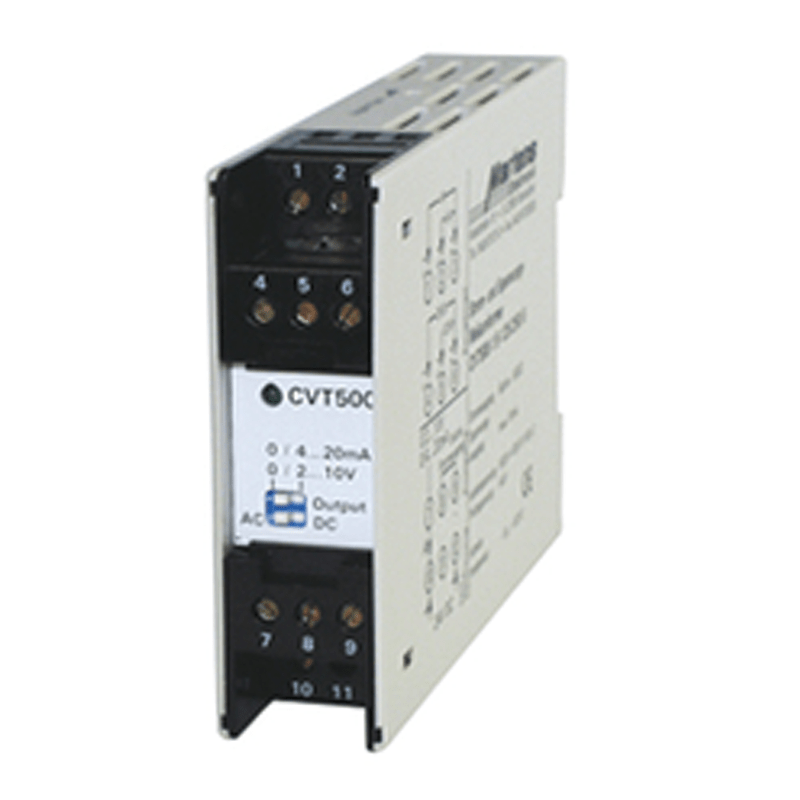

- DC and sinusoidal AC signals
- Direct connection
- Connection with converter possible
- Frequency range 40..200 Hz
- Measuring input for DC- and sinusoidal AC-signals
- Arithmetic average value measurement RMS calibrated

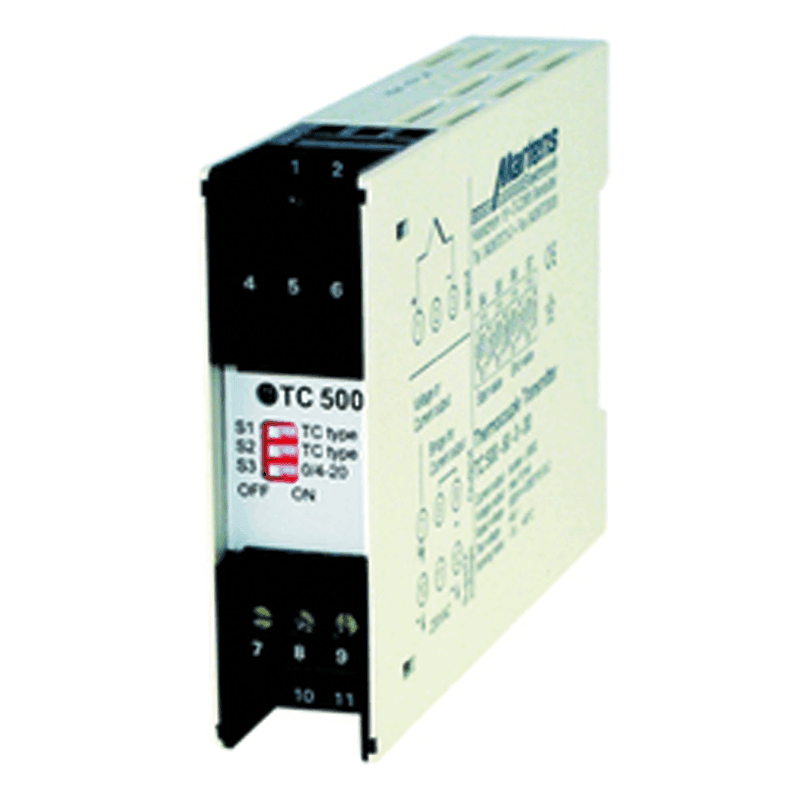

- Thermocouple J, K, S
- Adjustable zero point and end value
- 0/4..20mA; 0/2..10 V switchable
- Supply voltage : 85..253 V AC/110..125 V DC 10..30 V AC/DC
- Frequency AC : 40..400 Hz
- Power consumption : < 3.3 VA
- Operating temperature : -10..+60 °C
- Supply voltage : 85..265 V AC/110..125 V DC or 10..30 V AC/10..42 V DC
- Frequency AC : 40..400 Hz
- Power consumption : max. 2.2 W , max. 3.3 VA
- Operating temperature : -10..+60 °C
- CE-conformity : EN 61326-1:2013; EN 60664-1:2007
- Signal conditioning – Linearisation – Characteristic adjustment
- Input for standard signals 0/2..10 V and 0/4..20 mA
- Measuring range programmable
- Linearisation and characteristic adjustment programmable via 32 bases
- Automatic input fault detection
- Signal conditioning – Linearisation – Characteristic adjustment
- Input for standard signals 0/2..10 V and 0/4..20 mA
- Measuring range programmable
- Linearisation and characteristic adjustment programmable via 32 bases
- Automatic input fault detection
- Measuring range 0..50 Ω up to 100 kΩ
- Processor technology with 12 Bit AD/DA-converter
- Teach-in programming for start- and end-value
- Increase or decrease output characteristic programmable
- Operation mode indicated by use of a 2-color LED
- Programmable Pressure Converter
- Up to 2000 mbar measurement range
- Max over-pressure 4000 mbar
- 4-20 mA Outputs
- 4 mm pressure tube connection
- Programming via front side keypad
- For dry and non aggressive gases
