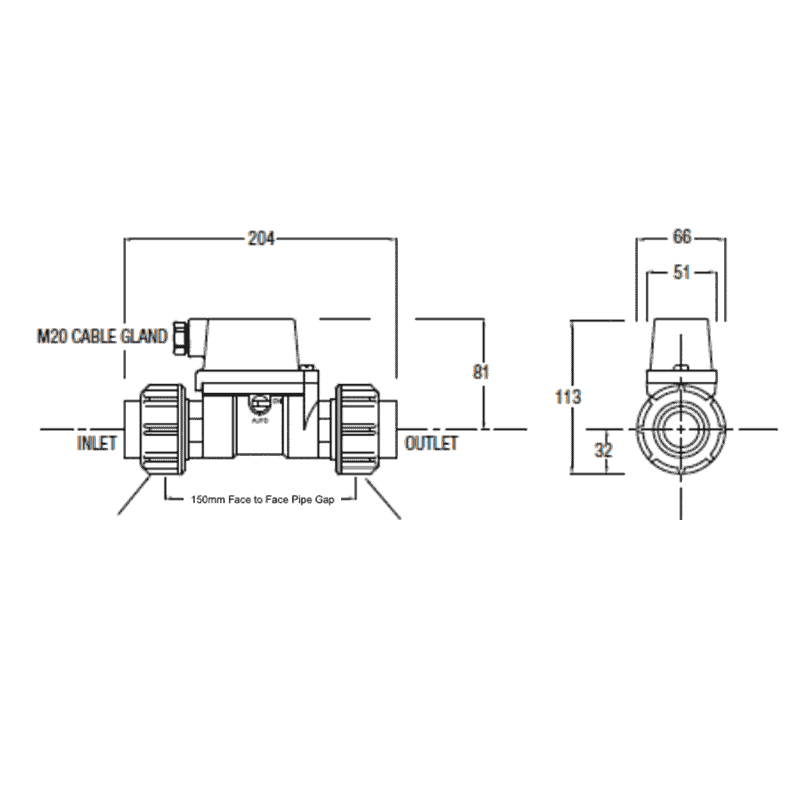

P25 Series Flow Switch

The P25 inline flow switch is a rugged versatile all position mounting flow actuated switch that can detect the flow of liquids in 15mm (1/2″) to 25mm (1″) diameter pipes. The P25 can be used in larger pipe systems provided the maximum flow does not exceed 100 liters per minute. The switch can detect very low flows, and yet has a low head loss, high flow through rating.

• Directly control pump motors
• Ideal for PLC and relay logic
• Manual override (P25-S Model)
• Suits pipe sizes 15mm to 25mm (1/2″ to 1″) Dia.
• No metal parts in contact with liquids
• 100 litres per minute flow rating
• Versatile all position mounting
• 18 Bar (260psi) pressure rating
• IP67 Weatherproof housing
• Detects very low flows

P25 Inline Piston Flow Switch Datasheet
