HONSBERG

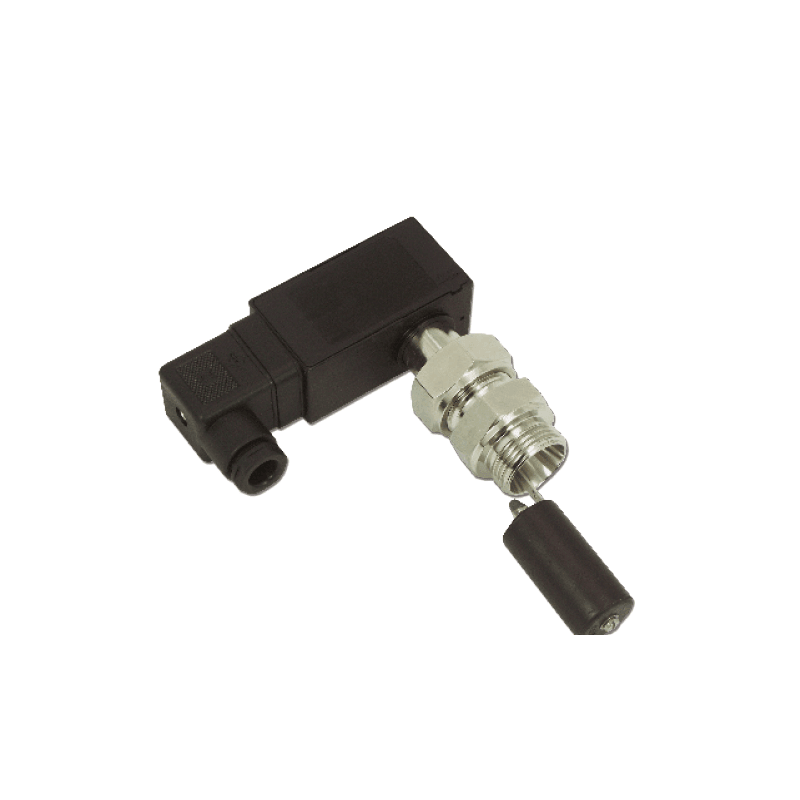

NW3 Side Entry Level Switch

  • 220Vac/1A 50VA reed switch
  • 3/4″ BSP thread
  • Reed Switch N/O or N/C contacts depending on installation
  • Brass or stainless steel body
  • Spansil (Buna) or stainless steel float
  • Protected to IP65 with standard Din plug
  • PVDF float option
£0.00 In Stock Sold out

The Honsberg NW3 Side Entry Level Switch is a compact, reliable solution for monitoring and controlling liquid levels in industrial tanks, vessels, and containers. Featuring a reed switch rated at 220Vac/1A (50VA), it offers dependable performance with minimal power consumption, making it ideal for both OEM and retrofit applications.

This side-entry switch comes with a 3/4″ BSP thread for quick and easy installation. Depending on the orientation, the reed switch can be configured for normally open (N/O) or normally closed (N/C) operation, providing flexibility to suit your system requirements.

Available with either a brass or stainless steel body, and float options in Spansil (Buna), stainless steel, or PVDF, the NW3 can be customised to handle a variety of media and environmental conditions. The PVDF float is ideal for chemically aggressive or corrosive fluids, offering enhanced durability.

With an IP65 protection rating and standard DIN plug, the NW3 is built to withstand industrial environments while ensuring secure electrical connections and long service life. Ideal for use in water treatment, cooling systems, hydraulic reservoirs, and chemical tanks.
