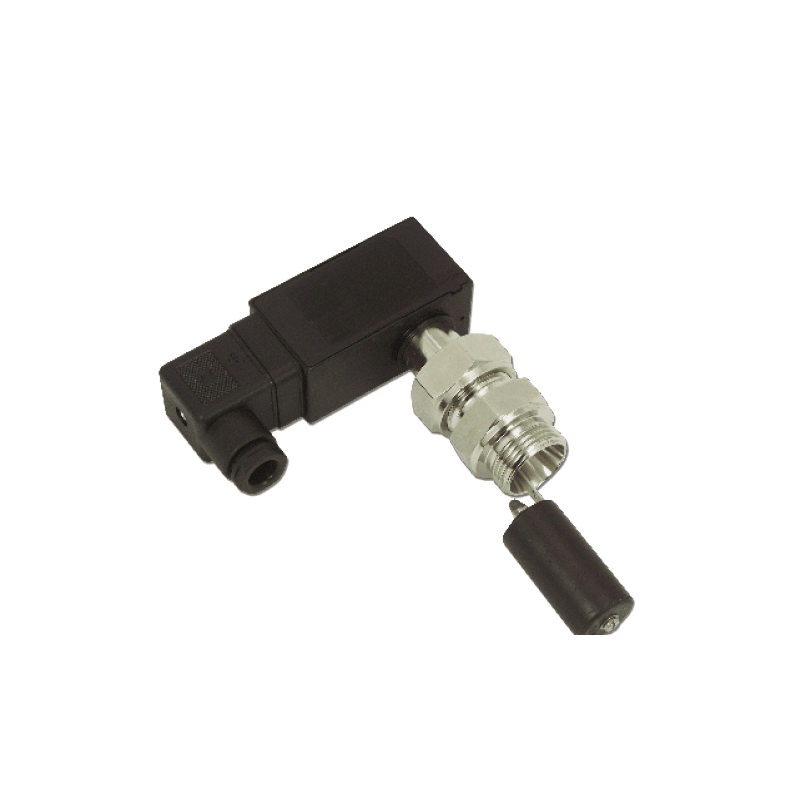

MW3/MW3 Side Entry Float Switch
- 220Vac/5A Micro-switch
- 3/4” BSP thread
- SPDT C/O Micro-switch
- Brass or Stainless steel body
- Spansil (Buna) or stainless steel float
- Protected to IP65 with standard DIN
- Description
- Downloads
The Honsberg MW3 Side Entry Float Switch is a robust and compact solution for reliable liquid level control in industrial tanks and vessels. Designed for side-entry installation, this float switch uses a high-quality SPDT (Single Pole Double Throw) micro-switch to provide dependable switching performance at 220Vac/5A.
The MW3 is available with a brass or stainless steel body and offers float options in Spansil (Buna), stainless steel, or optional PVDF for enhanced chemical resistance. Its 3/4” BSP threaded connection ensures straightforward installation across a wide range of systems and applications.
Engineered for long-lasting performance, the MW3 is IP65-rated and comes with a standard DIN plug for secure electrical connection and environmental protection. It is ideal for use in process industries, water management, machinery, and fluid storage where compact and effective level detection is essential. With flexible materials and output options, the MW3 can be tailored to suit a variety of liquid media and operational conditions.
