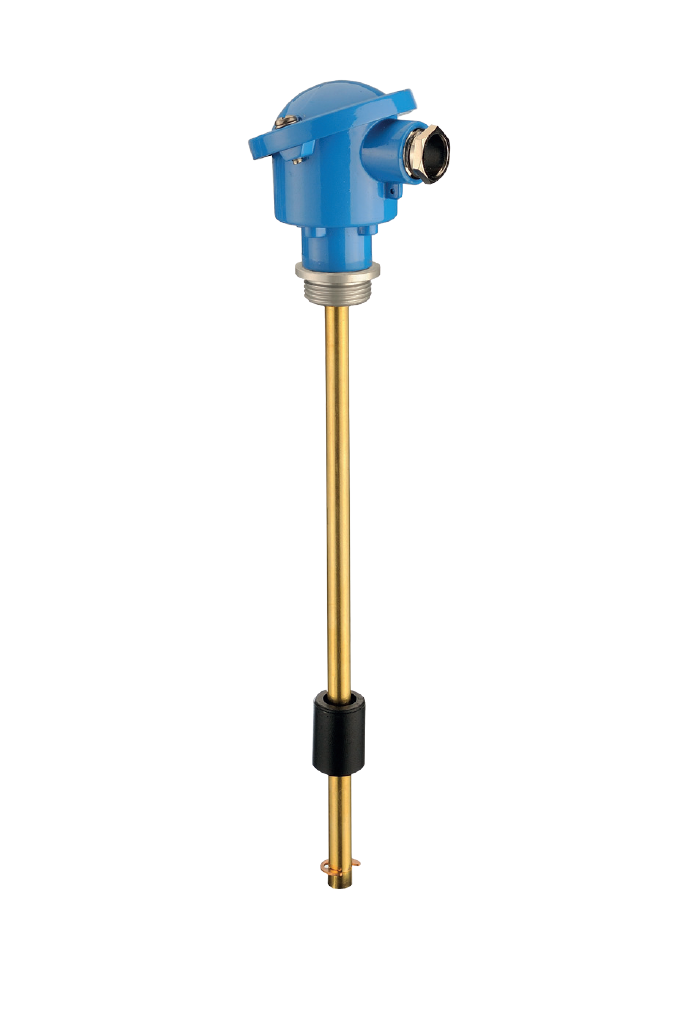

IMRET Temperature Sensor
EUROSWITCH

IMRET Temperature Sensor

  • Use: Water - Mineral oils - Diesel fuel - Petrol
  • Fixing: Al 1" gas (Aisi 304 Stainless Steel on request)
  • Stem: Steel
  • Float: NBR
  • Seeger: AISI 316
  • 0-Ring: NBR
  • Electrical connection: Box aluminum (M12 connector on request)
  • Protection degree: IP65
  • Fluid specific weight: >0,6
  • Working temperature: -10°C/+80°C
  • Pitch (Resolution): 10/20 mm
  • Output signal: Analogic 4-20 mA Separate for level / temperature
  • Length: Lmin = 100 mm Lmax = 2.000 mm

Downloads

Technical Datasheet
£0.00 In Stock Sold out
4-20 mA analogue level and temperature sensor, with a 1" gas in aluminium (AISI 304 stainless steel on request) fixing. The temperature sensor can be used with water, mineral oils, diesel fuel, and petrol and offers two separate analogue 4-20mA outputs for level and temperature.
