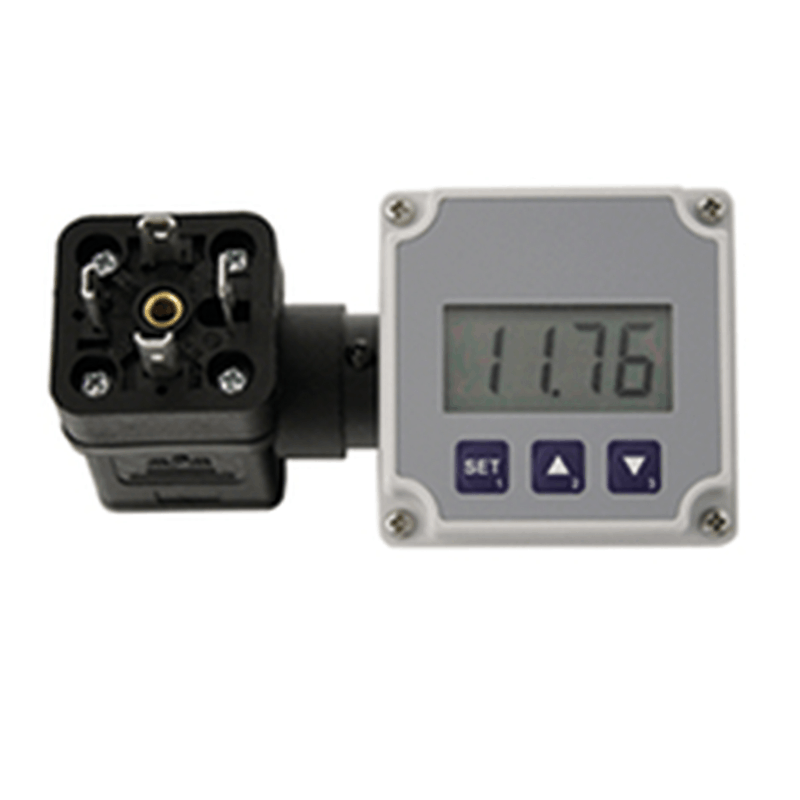

GIA 0420-VO

Input signal: 4...20 mA (2-wire)
Voltage load: approx. 2 V, (approx.3.5 V at...-EX)
Supply current: from current loop
Accuracy: ±0.2 % FS ±1 digit (at nominal temperature = 25 °C)
Display: 10 mm high LCD
Display range: -1999... +9999

Description
Downloads
Product Catalogue

Description

With 2 electrically isolated switching outputs, delivery incl. 1 m connecting cable for connection of both switching outputs (Option S2 not in combination with EX-device available)

Scale freely adjustable ‚on site‘ within seconds, no auxiliary devices required
Monitoring for probe damage, probe short circuit, values above/below permissible limit
Software filters that can be activated/deactivated guarantee stable display even with a sensor signal prone to interference.
Without auxiliary energy
Special adapter can be turned to any position
Display adaptable to 4 positions
