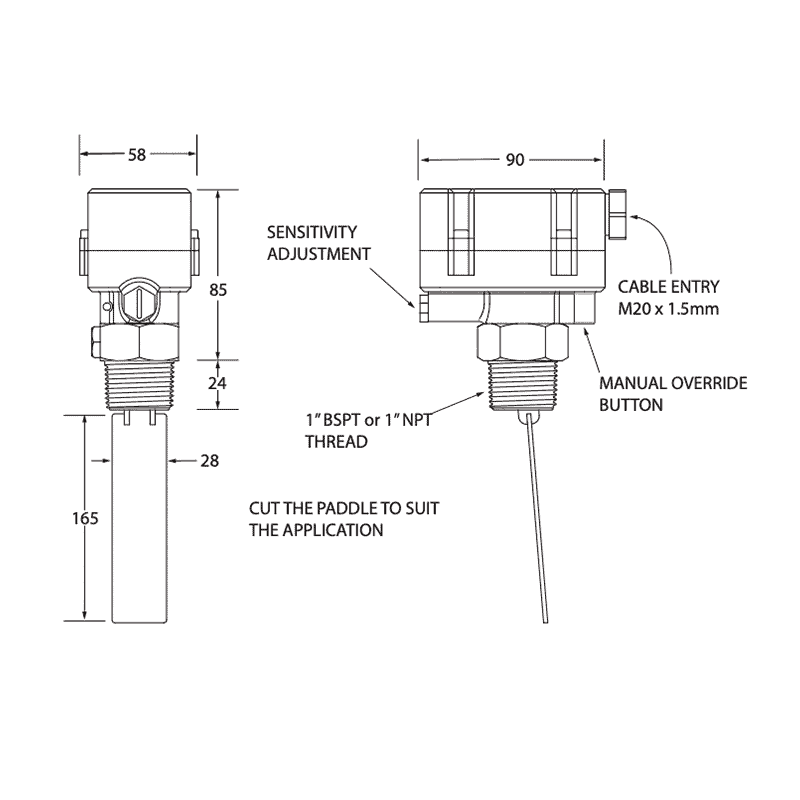

fm_paddle_flow_switch_dwg
fm_paddle_flow_switch_install
fm_paddle_flow_switch
fm_paddle_flow_switch_dwg
fm_paddle_flow_switch_install
KELCO

FM Series Paddle Flow Switch

Login to see prices In Stock Sold out

The FM series fl ow switch is built tough for the most arduous industrial and mining applications. It is a rugged but highly sensitive paddle fl ow switch suitable for a wide range of fl ow sensing applications in both hot and cold liquid.

  • 0 to 500V AC 15 Amp S.P.D.T switch
  • Low Voltage Gold contact model available
  • 316 Stainless Process Connection
  • Super Tough Billet Aluminium Housing
  • Manual override built in
  • 3/4” & 1” models available with BSP or NPT threads
  • 400 Bar (5800 psi) pressure rating
  • Seal-less magnetic drive
  • Dieselene & High Temperature versions available
  • Weatherproof IP67 housing
  • Easily serviceable
