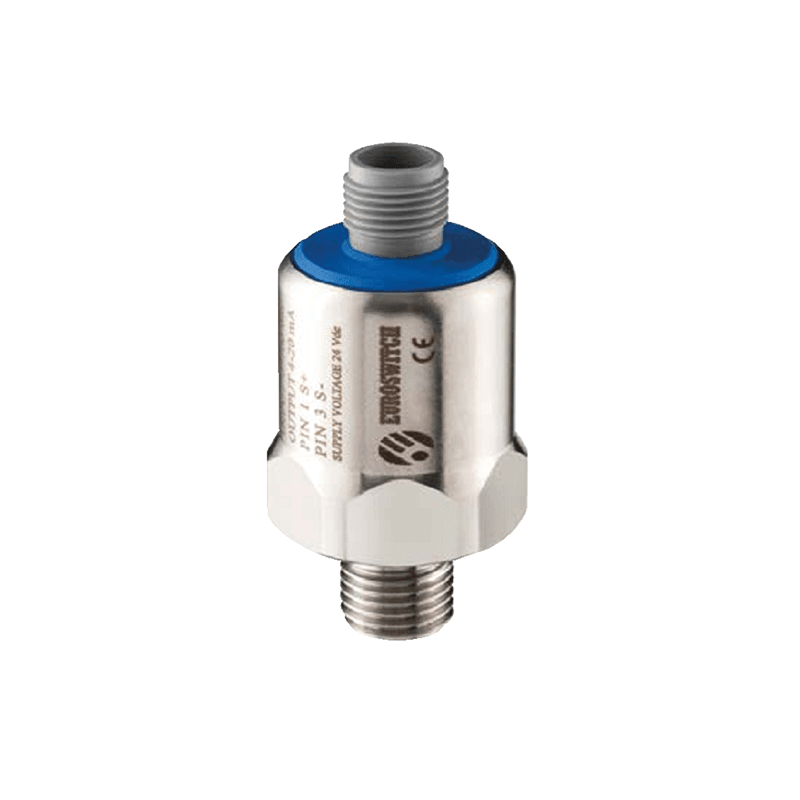

ESP Pressure Transducer

Description

• 4-20mA Pressure Transducer
• Ranges for 0 to 400 bar
• Range Options :- 0-10 Bar, 0-100 Bar, 0-250 Bar, 0-400 Bar.
• Max working Pressures up to 650 Bar depending on Range.
• 8 -30 Vdc Supply Voltage
• Operating Temperatures 0°C to 80°C with Viton Diaphragm
• Ceramic Element with FPM Seal
• 1/4″ BSP Parallel Thread Standard
• M12 Electrical Connector
• 316L Stainless Steel Body

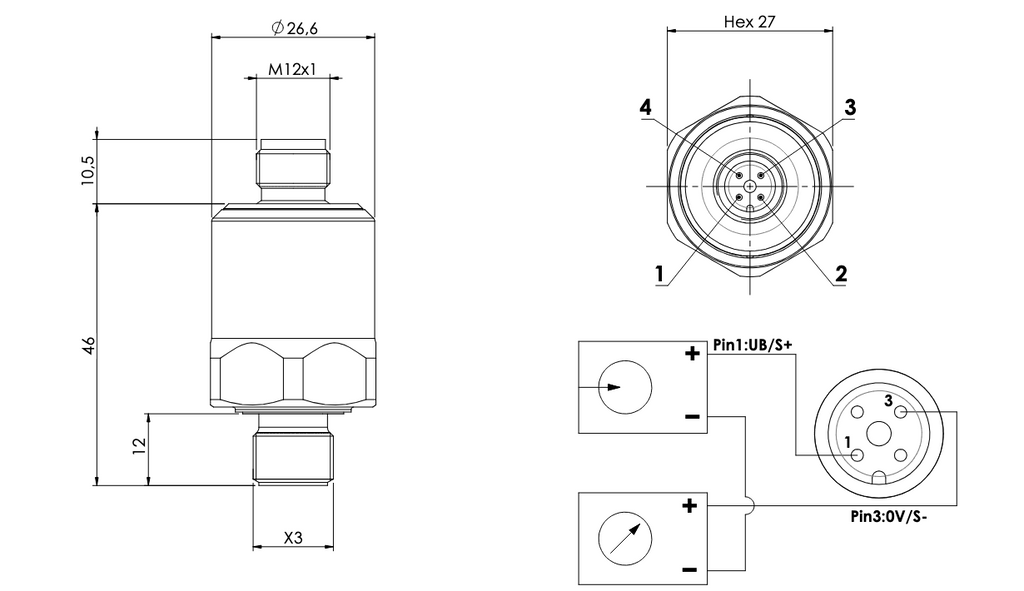

Technical Datasheet

Downloads

ESP Datasheet
