AT 120
ATMI

AT 120

  • Switching angle: +/-120°
  • Allowed fluid density: 0,70 to 1,15
  • Maximum pressure: 3,5 bars
  • Allowed temperature: 85 °C
  • Protection index: IP 68
  • Housing material: Copolymer
  • Polypropylene Weight: 195 g
£0.00 In Stock Sold out

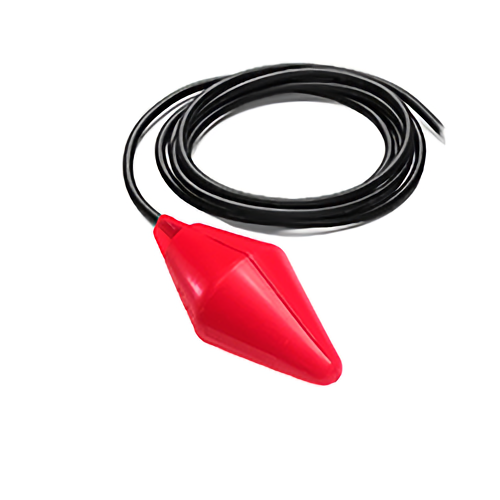

This float switch is designed for the automatic control of pumps (until 1.5 CV) . Thanks to its wide switching angle of 120º, the BIP STOP protects the pump's engine and the electrical panels from jerking. This feature is highly appreciated in agitated liquids.

Also, AT 120 can detect the both high and low level in the same tank whose hysteresis does not exceed 1.5 meter.

These float level switches are used wherever magnetic level controllers can not be used because of impurities or deposits that may trap the float.

This model is available with a HR HY (High Resistance HYpalon) press-vulcanised housing for applications in aggressive liquids (acids, solvents, hydrocarbons, etc .) See AT 120 HR HY

The AT 120 level switch is available in three versions:

(1) VR :  Emptying/Filling

(2) VT : Emptying + ground wire

(3) VS : Special emptying mode with multifunction plug

.
