ARMAS

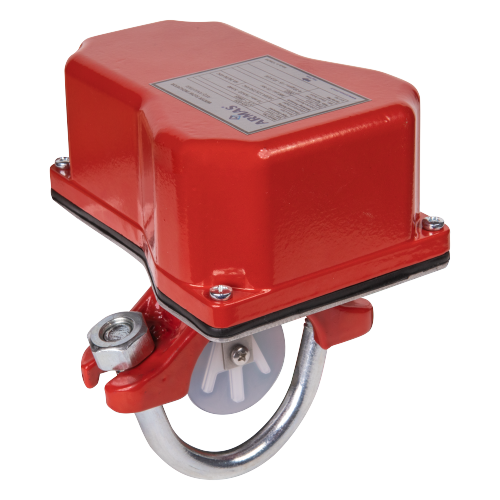

Waterflow Detector (Flow Switch)
- Sizes: 2” - 8” / Ø50-Ø200
- Nominal Pressure: 300 psi (21 bar)
- Operating Temperature: 0 ̊C - 68 ̊C (32 ̊F - 154 ̊F)
- Flow Sensitivity Range: 15-37.5 l/min (4-10 gpm)
- Contact Ratings: 10(3)125/250V AC, 6A 24/30V DC
- Delay Time: 90 sec.
- Description
- Technical Details
- Product Catalogue
Description
Armaş Waterflow Detector converts the mechanical effect of the water flow into an electrical signal when it detects the water flow. The electrical signal is transmitted to the fire panel and used to send information that there is a flow. The Waterflow Detector can be mounted horizontally or vertically.
Technical Details
- Sizes: 2” - 8” / Ø50-Ø200
- Nominal Pressure: 300 psi (21 bar)
- Operating Temperature: 0 ̊C - 68 ̊C (32 ̊F - 154 ̊F)
- Flow Sensitivity Range: 15-37.5 l/min (4-10 gpm)
- Contact Ratings: 10(3)125/250V AC, 6A 24/30V DC
- Delay Time: 90 sec.
