Description

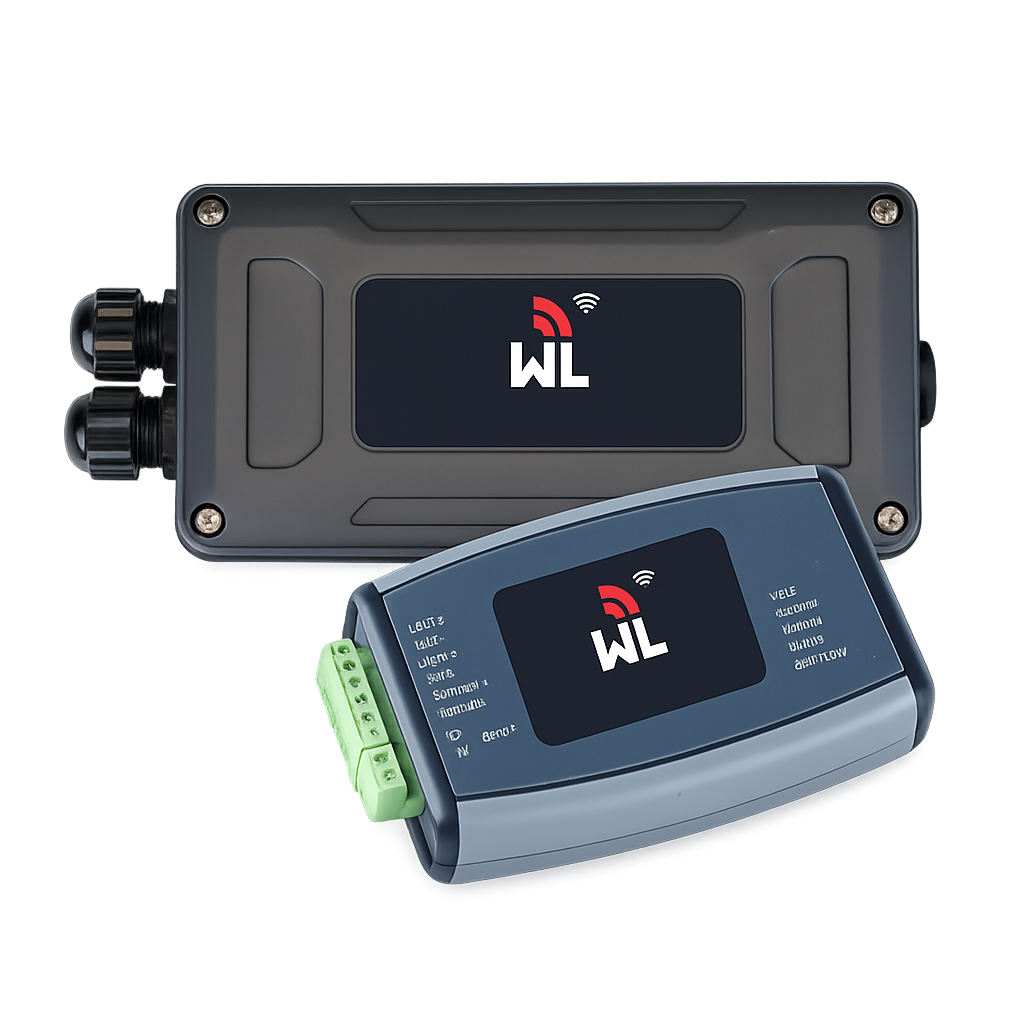

A range of signal converting gateway modules that receive Watchlog wireless signals and convert to standard analogue signals, relays, alarms & serial Modbus or ASCII data.
For maximum versatility, Watchlog gateways can convert wireless sensor signals into standard industrial outputs, including programmable relay switching, 4–20 mA, 0–20 mA, 0–5 V and 0–10 V analogue signals, as well as serial ASCII or Modbus communications. This enables wireless measurements and alarms to integrate easily with PLCs, control panels, data loggers and other monitoring or control equipment.
All gateways are programmed using the included free Toolkit configuration software.
| Wireless Analogue Output Gateway | Wireless Relay Output Gateway | Wireless Relay Output Gateway | Wireless ASCII Serial Output Gateway | |
|---|---|---|---|---|
| Order code | ||||
| Wireless range | 100 m / 800m | 500 m | 800 m | 800 m |
| Interface | 4-20mA, 0-20mA, 0-5V, 0-10V outputs | x2 Power relays, x1 Alarm relay outputs | ASCII (RS232 + RS485) outputs | Modbus RTD or ASCII (RS232 + RS485) |
| USPs |
|
|
|
|
