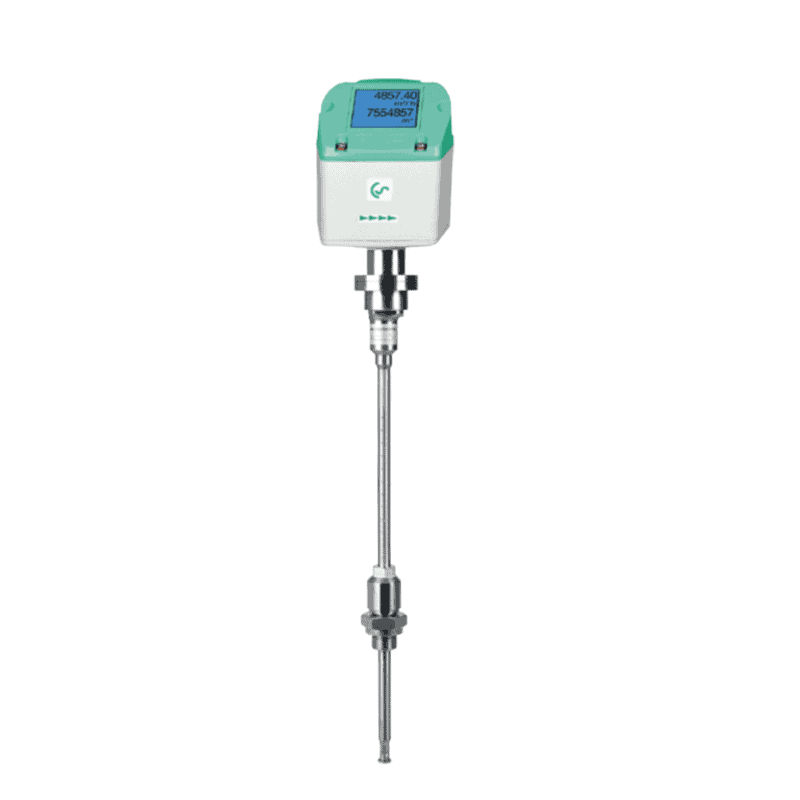

VD 500 Flow Meter
- Particularly suitable for extremely high flow rates
- Extremely fast response time: 100 ms
- Measures flow, total consumption, temperature and pressure
- Measurement at high temperatures – max. 200 °C
- Measurement in various gases by selecting gas type, on request
- Can be used in pipes from DN 20 to DN 500
- Installation via 1/2″ ball valve under pressure
- RS 485 interface (Modbus-RTU), 4…20 mA, pulse output as standard
 |
Technical Datasheet |
- Description
- Downloads
The CS Instruments VD 500 Flow Meter is engineered for precision and durability, making it the ideal choice for measuring extremely high flow rates in industrial environments. Suitable for pipe diameters from DN 20 to DN 500, it delivers rapid, reliable readings with an impressive 100 ms response time.
Designed for versatility, the VD 500 measures flow, total consumption, temperature, and pressure simultaneously. It’s capable of operating in challenging conditions, including high-temperature applications up to 200 °C. Its differential pressure sensor detects dynamic pressure at the sensor tip, enabling accurate flow measurement based on pipe diameter, temperature, and gas density.
This advanced flow meter can be configured for various gases on request, offering maximum flexibility across applications. Installation is quick and easy via a 1/2" ball valve under pressure, with no need to shut down the system.
Equipped with RS485 (Modbus-RTU), 4…20 mA, and pulse outputs as standard, the VD 500 seamlessly integrates into existing control systems.
Whether monitoring compressed air, nitrogen, or other gases, the VD 500 provides precise, real-time insights to optimise performance and efficiency.
