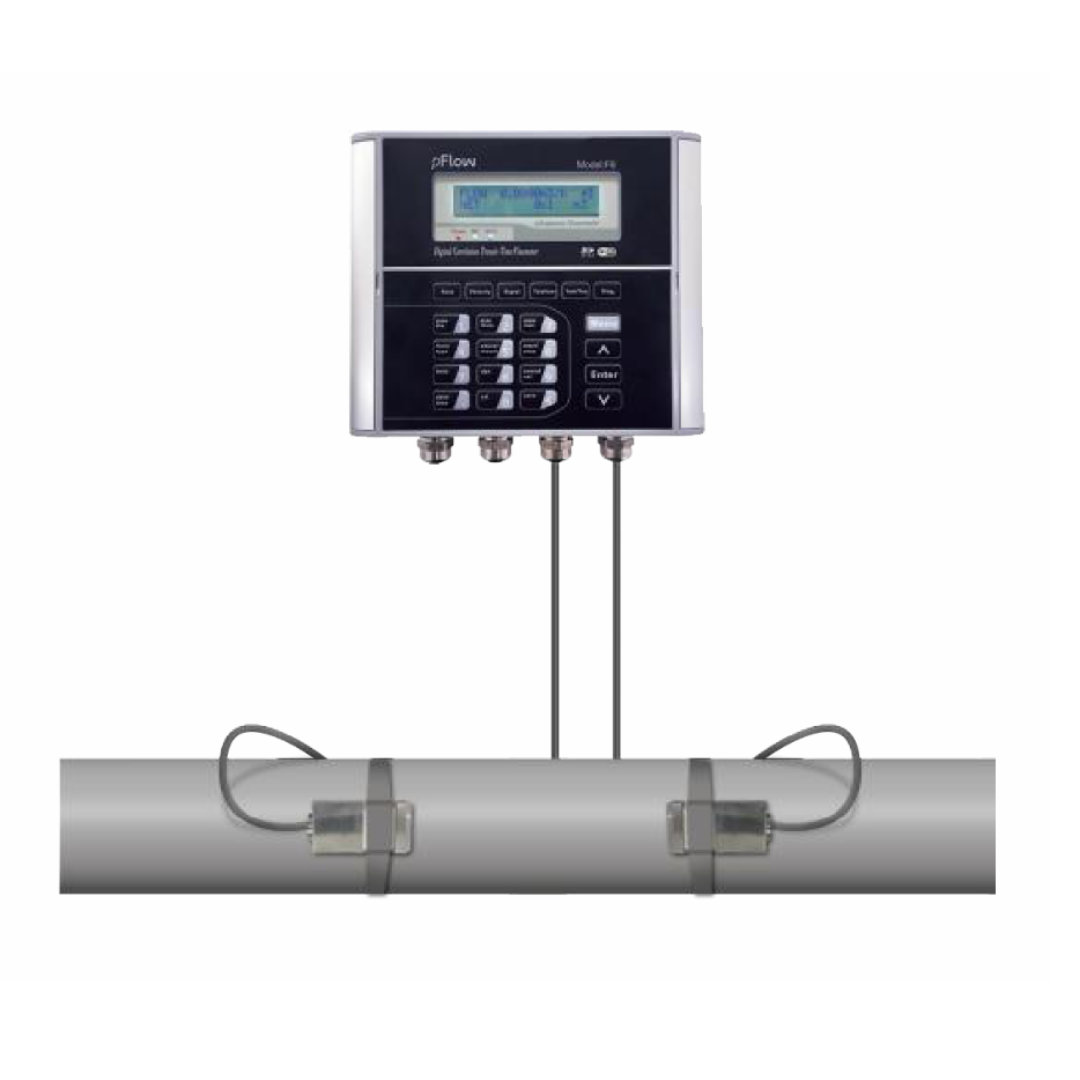

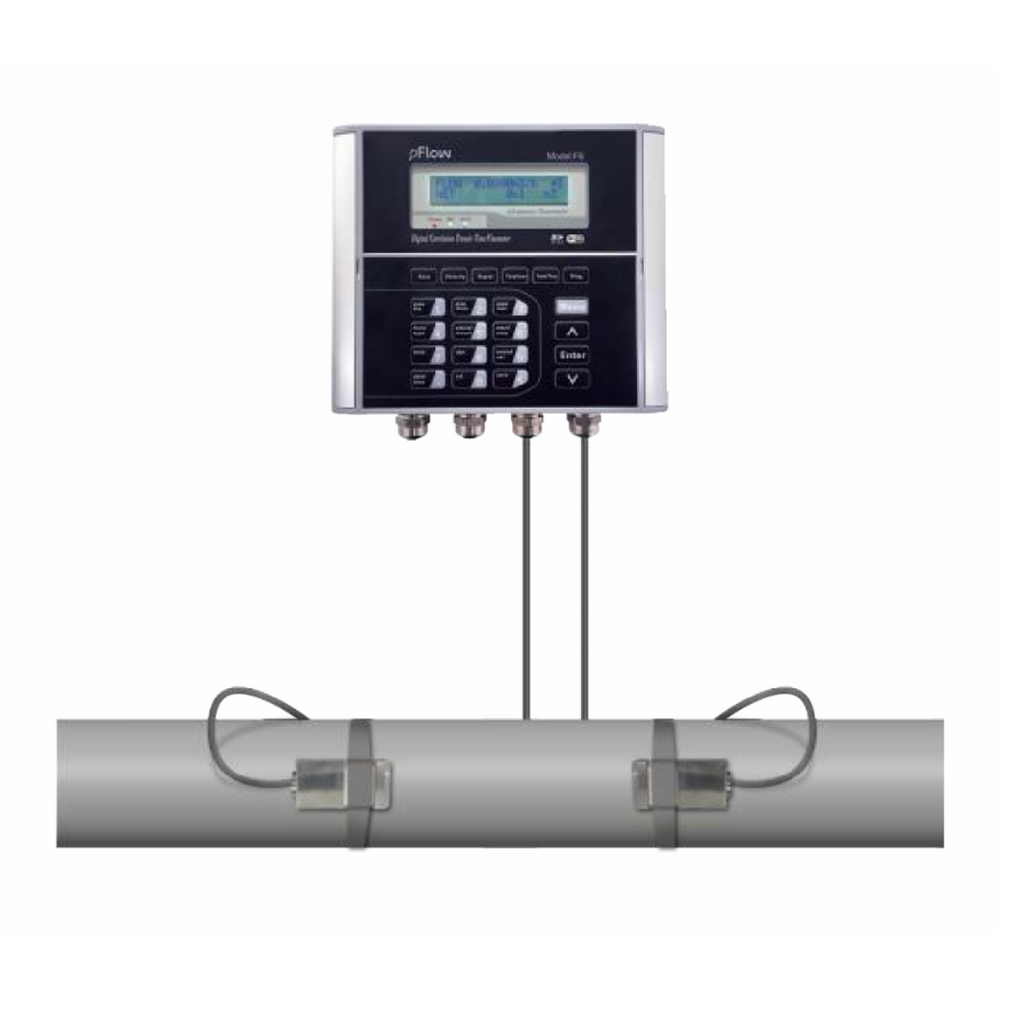

Ultrasonic Flow Meter F8

The Ultrasonic Flow Meter F8 is a cutting-edge solution designed to precisely measure both "cold" and "hot" flow in bidirectional applications. With its advanced modular all-in-one design, the F8 seamlessly integrates with various systems, providing reliable continuous measurement for chilled and cooling water in central air-conditioning setups. Its LCD backlight display and independent menu operation ensure user-friendly interaction.

The F8 accommodates flow velocities ranging from ±0.03 ft/s to 40 ft/s (±0.01 m/s to 12 m/s) and pipe sizes from 1″ to 200″ (25 mm to 5000 mm) with an impressive accuracy of ±0.5% of the measured value. It excels in diverse applications, including energy saving, HVAC systems, building automation, and energy audits.

Constructed from robust materials such as carbon steel, stainless steel, and cast iron, the F8 is built to endure various environments. It offers versatile I/O options, including 4-20 mA analogue output, pulse output up to 9999 Hz, and relay contacts. Power options range from 90-245 VAC to 10-36 VDC. Designed for extreme conditions, the transmitter operates from 14°F to 122°F, while the transducer withstands temperatures from -40°F to 176°F. Encased in durable die-cast aluminium and encapsulated for IP68 protection, the F8 ensures reliable performance in standard and challenging environments.
