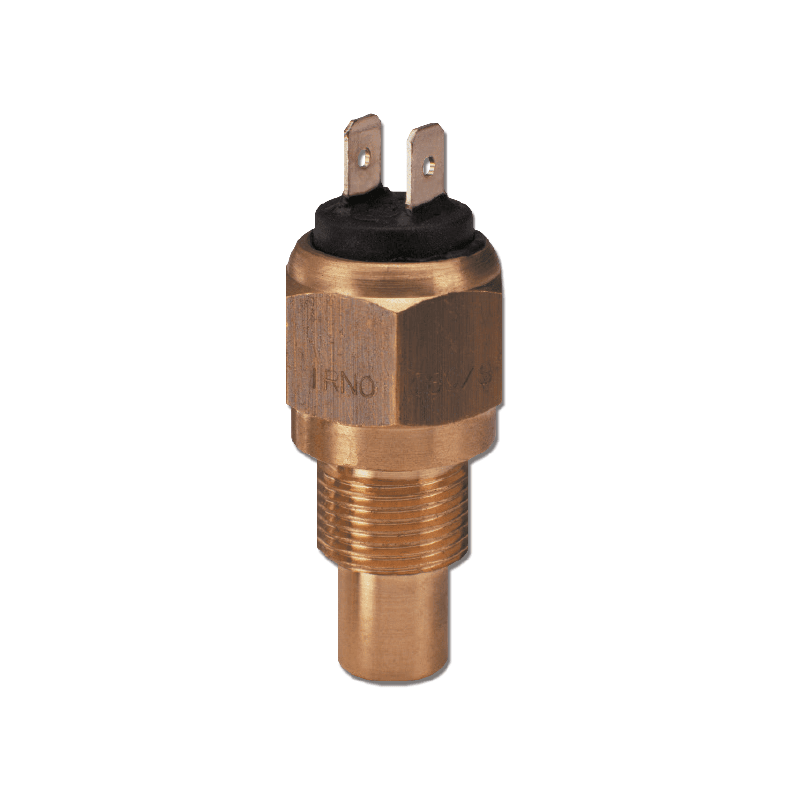

TS - TSP Temperature Switch
- 25°C-180°C Set Points (5° increments)
- Max temperature 240°C
- Switch rating up to 240V
- Wide choice of threads
- Brass construction
- Rated to 300 bar
- Description
- Downloads
The TS & TSP Temperature Switches from Pressure-Vacuum-Level Ltd offer a compact and reliable solution for precise thermal control in industrial environments. Designed for flexibility, they are available with normally open (N/O) or normally closed (N/C) contact configurations and support a wide operating temperature range from 25°C to 180°C with a ±3°C switching accuracy.
Constructed with a durable brass body, these switches come with a wide variety of BSP, NPT, or metric thread options, ensuring compatibility with diverse system setups. The TSP version includes a probe, ideal for remote or in-line temperature detection. A protective cap (optional) enhances durability and meets IP45 protection standards.
With a maximum pressure rating of 300 bar, and contact ratings up to 16A at 12VDC, these switches are well-suited for demanding applications. Ideal for OEM and volume orders, custom switching ranges up to 200°C are available for large quantities.
