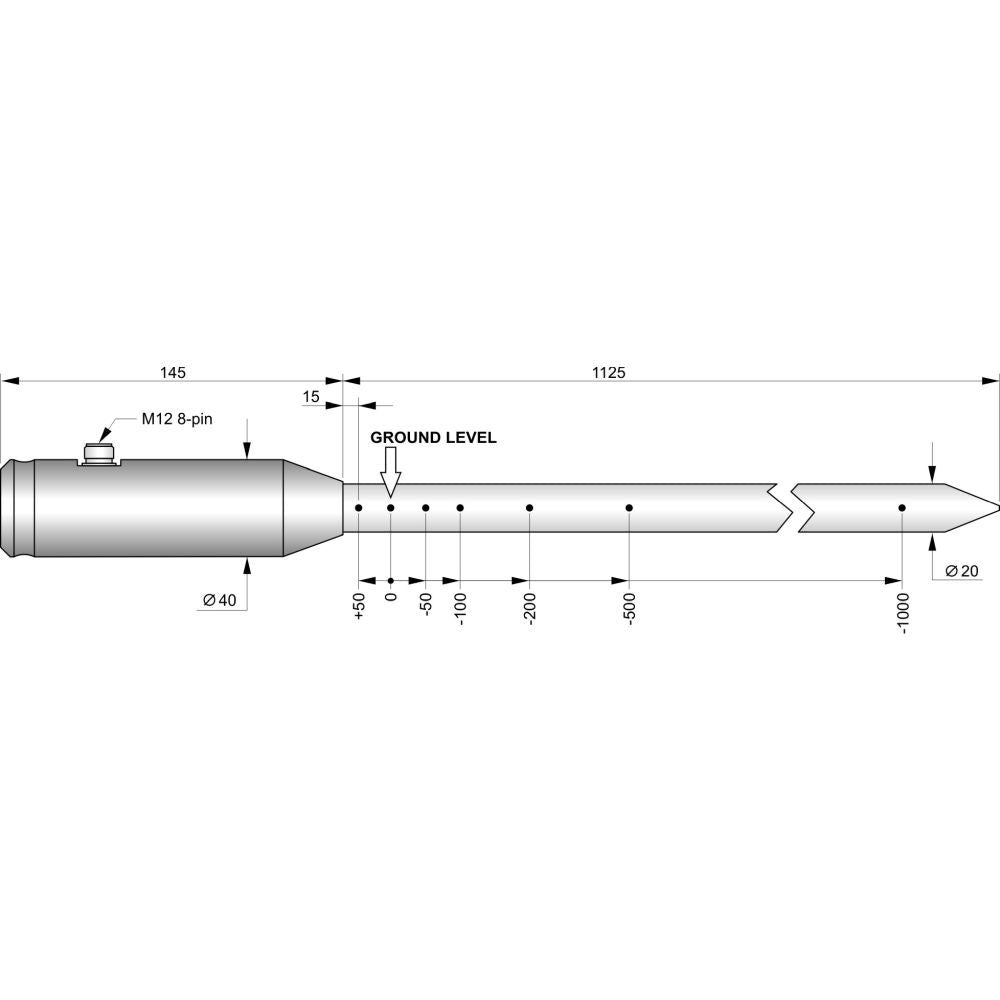

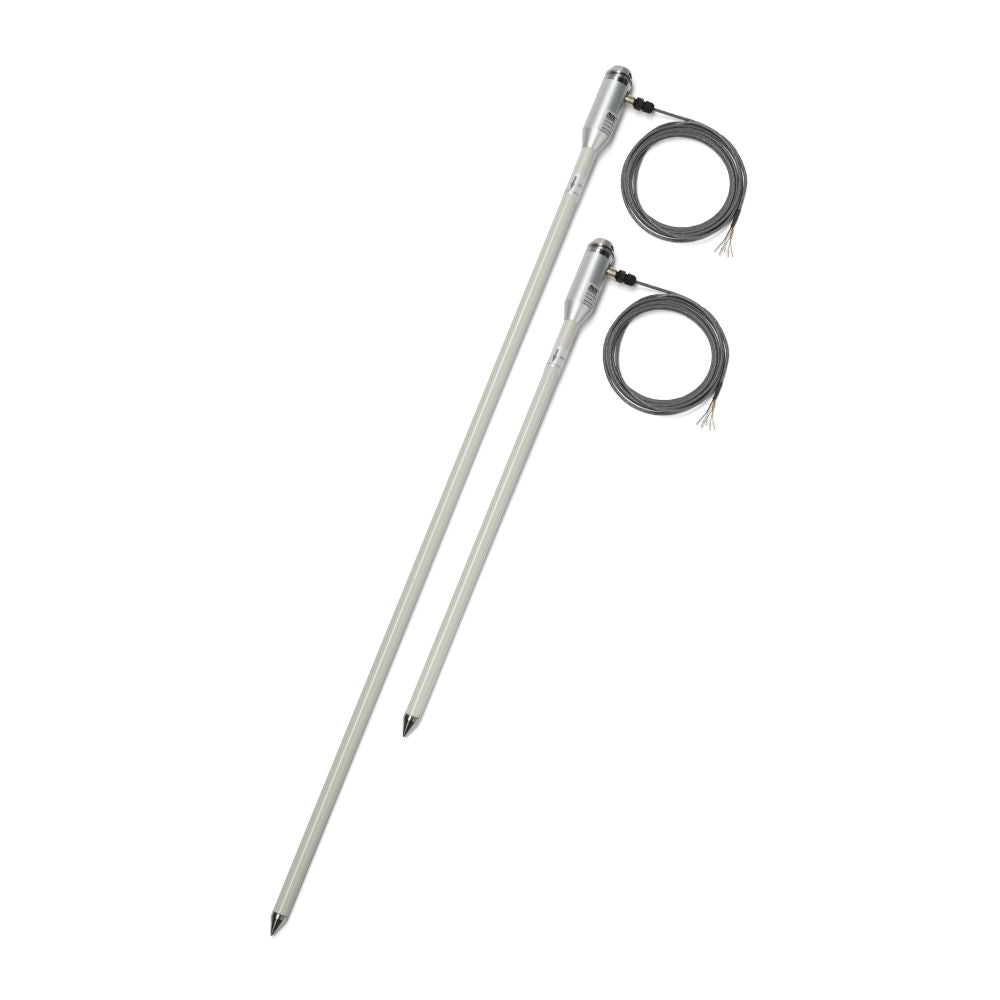

The temperature probe TP32MTT.03 is equipped with seven Pt100 1/3 DIN sensors for measuring the temperature at the depth of: +5 cm, 0, -5 cm, -10 cm, -20 cm, -50 cm, -1 m with respect to the ground level, according to the WMO indications.
The temperature probe TP32MTT.03.1 is equipped with six Pt100 1/3 DIN sensors for measuring the temperature at the depth of: +5 cm, 0, -5 cm, -10 cm, -20 cm, -50 cm with respect to the ground level.
The fibreglass tube ensures a perfect impermeability and a high thermal isolation along the terminal axis.
Digital RS485 output with MODBUS-RTU protocol.
8-pole M12 male connector.
6…30 Vdc power supply.
It can be connected to the RS485 port of the HD32MT.1 or the HD32MT.3 data logger.
