TK3B In-Line Paddle Wheel Flow Meter
Icon Process Controls

TK3B In-Line Paddle Wheel Flow Meter

  • High Accuracy, ±1.0% of Full Scale
  • Unit of Flow Measurement is Selectable
  • Corrosion Resistant Materials
  • Low Cost Visual Indication
  • Compact Design
  • Large Bright LED Digital Display
  • Horizontal, Vertical Installation
  • Size Range ¼ – 2"
  • Low Pressure Drop
  • 4-20mA, Pulse, Output Signal NEMA 4X Enclosure
  • Suitable for Corrosive Environments
  • Password Protected Security
£0.00 In Stock Sold out

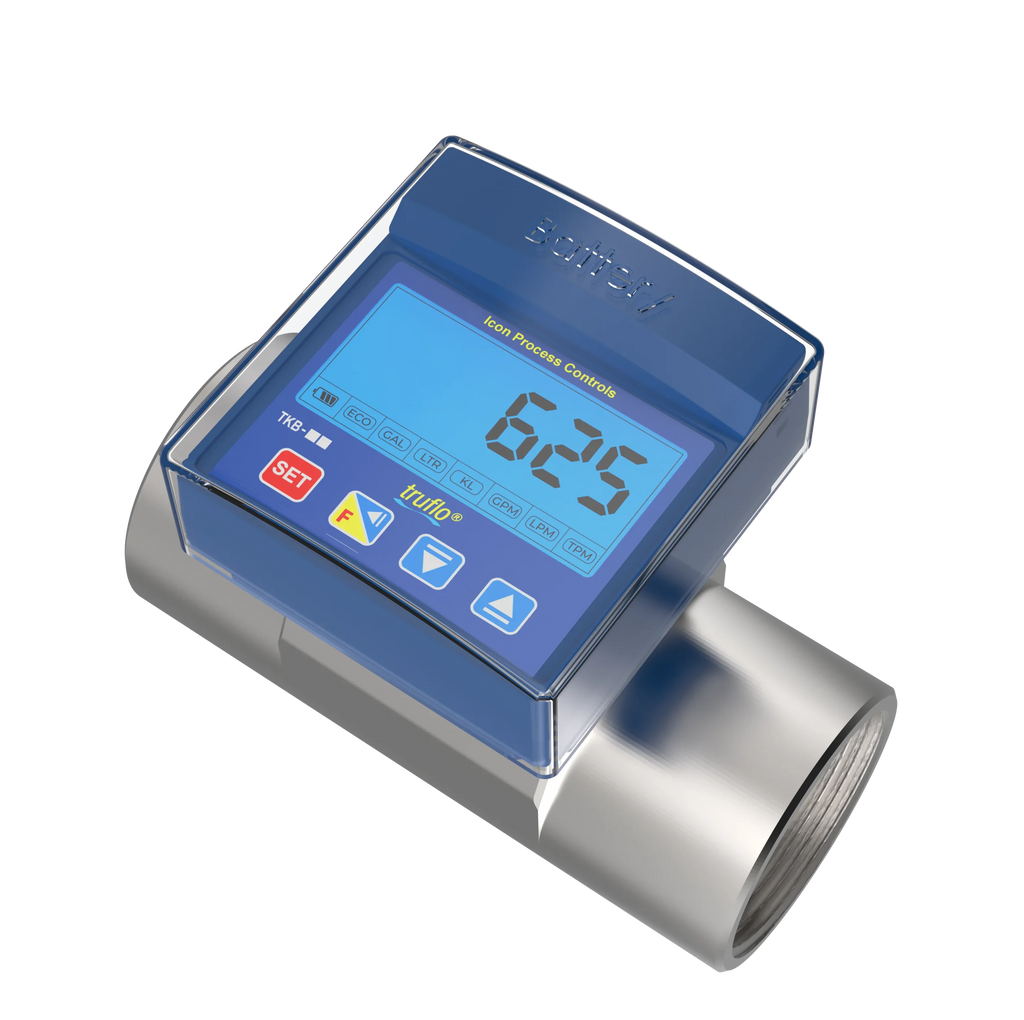

The TK3B Series stainless steel battery-operated paddle wheel flow meter has been designed for tough industrial applications. The TK3B series paddle wheel flow meter has been engineered to provide long-term accurate flow measurement for liquids. The 316SS in-line flow meter is equipped with a 360° rotatable vivid backlit LCD display showing both Flow Rate & Flow Total. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter.

Icon’s paddle wheel flow sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings. The TK3B series battery operated liquid flow meter, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TK3B Series stainless steel flow meter has a 316SS body and is available with NPT, flanged or sanitary end connections. The TKB plastic in-line paddle wheel flow meters incorporate a true-union design with body materials available in PVC, PP and PVDF.
