Icon Process Controls

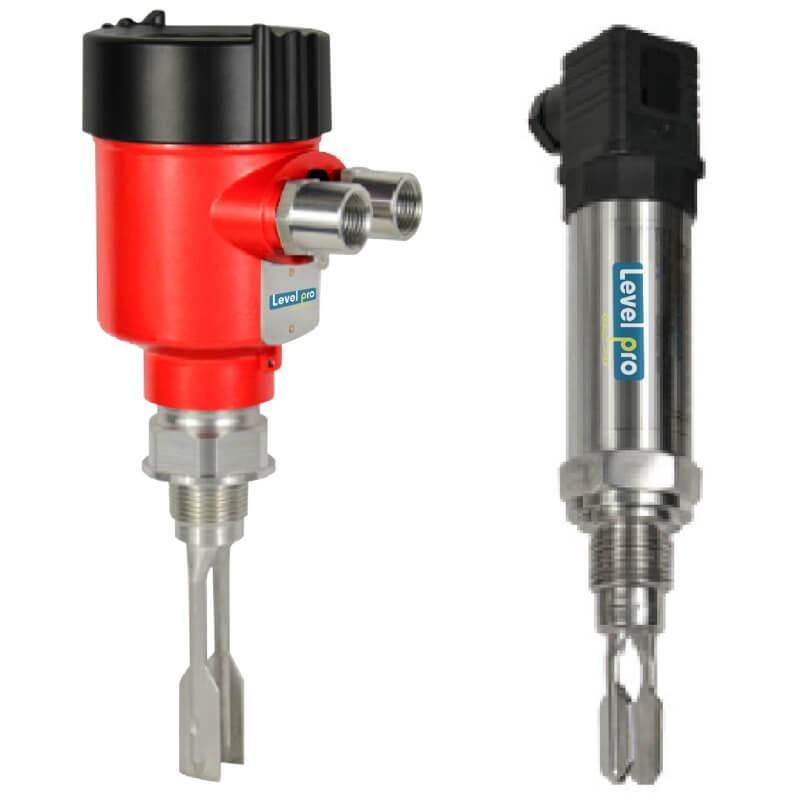

TFS Series – Level Switch
- PP, PVC, PVDF, 316 SS
- Tank Measurement up to 10 ft High
- Excellent Chemical Resistance
- Easy Installation
- Two-wire 4-20mA Output
- Epoxy Coated Junction Box
- NPT, Flange Connection
- Suitable for Corrosive Non-Coating Liquids
£0.00
In Stock
Sold out
- Description
- Downloads
Description
The TFS Series is a vibrating type level switch for use in all liquid and slurry applications such as overflow, high, low, and demanding applications, as well as pump protection. The TFS Series is designed for industrial use in all areas of process technology and can be used with liquids and slurries. With a tuning fork insertion length of only 45 mm (1.77″), the TFS switch can be mounted in small pipes and applications with confined space. The TFS Series can be used in difficult conditions including turbulence, air bubbles, and foam.
Features:
316SS | PTFE Teflon Probe
Size Range -3″-16 ft.
Can be Used with Solids | Powders
Relay Outputs – 5A | 3A
Epoxy Coated Junction Box
