Description

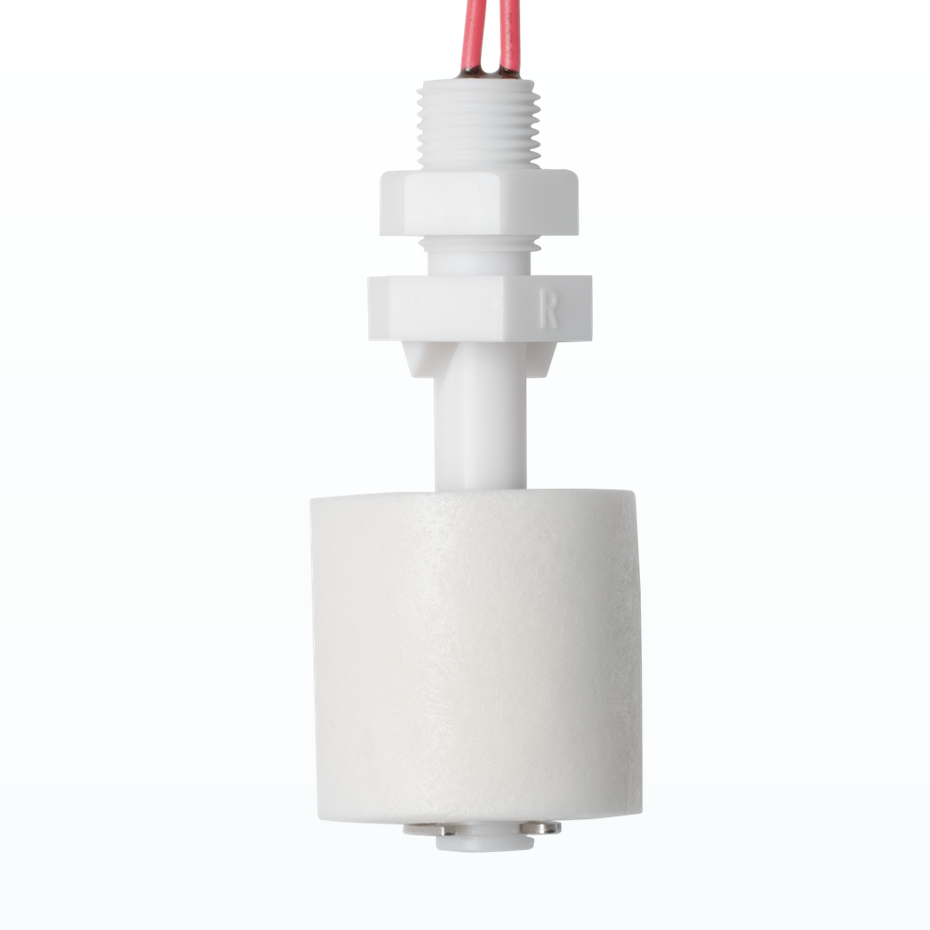

The MFS17-C Top Entry Level Switch is a high-quality, entry-level solution designed for reliable liquid level monitoring. This switch is constructed with durable, corrosion-resistant polypropylene, ideal for environments where chemical resilience is critical. The stem is made from robust polypropylene, while the float is made from foamed P material, ensuring longevity in diverse applications. A stainless steel SUS304 stopper provides added durability, and the assembly is secured with a polypropylene nut for maximum stability.
Engineered to operate within a temperature range of -10ºC to +80ºC at atmospheric pressure, this level switch is built to withstand pressures up to 0.2MPa at room temperature. Designed for liquids with a specific gravity heavier than 0.8, it’s an excellent choice for a variety of industrial applications, including water treatment, chemical processing, and fluid management systems.
The MFS17-C supports a maximum contact capacity of 50W and operates at voltages up to 300V (DC/AC) with a current capacity of 0.5A, making it highly versatile for low-to-moderate power switching. This switch is straightforward to install and maintain, ideal for entry-level users seeking reliable, high-performing liquid level monitoring.
Downloads
 |
Technical Datasheet |
Product Catalogue
