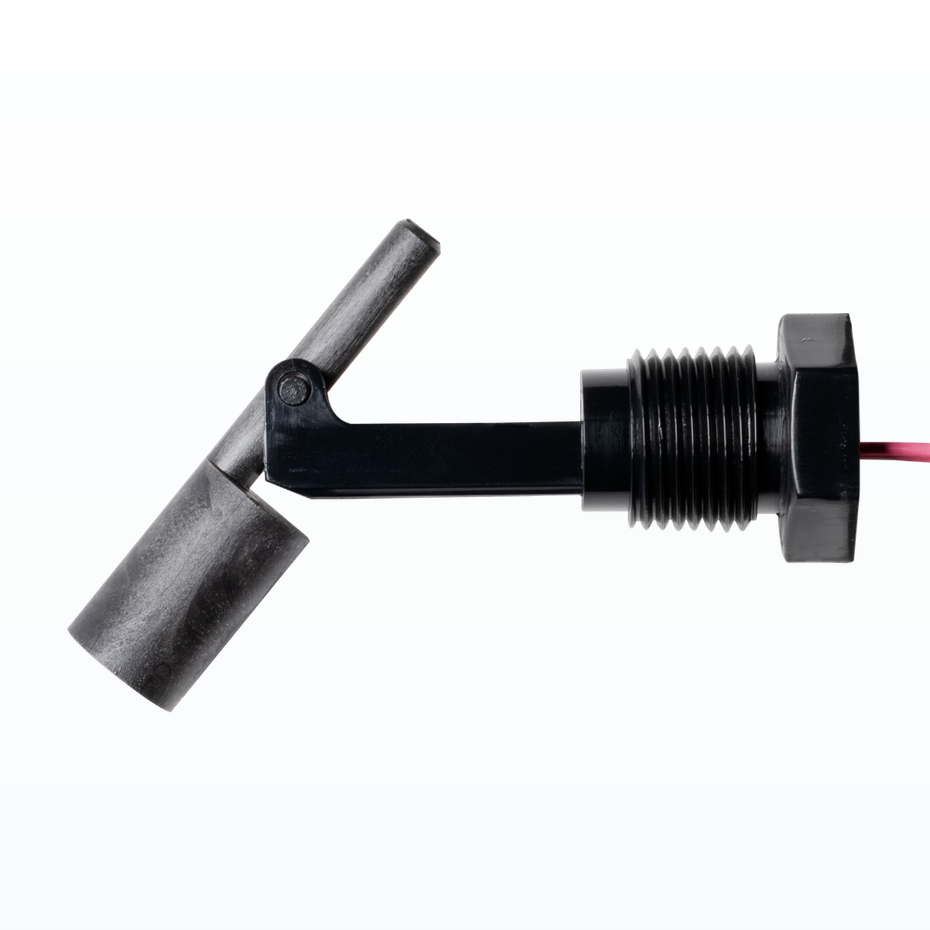

MFS10-N2 Side Entry Float Switch
- Polypropylene Body & Float (N1)
- Nylon Body & Float (N2)
- External side entry fitting level switch
- 1/2” BSPT (NPT tapered) thread
- N/O or N/C (reversible) contact
- 300Vac/50VA reed switch
- Max Temperature 110 °C
 |
Technical Datasheet |
- Description
- Downloads
The Nylon Side Entry Level Switch (MFS10-N2) is a high-performance, durable solution designed to monitor and control fluid levels in various industrial and commercial applications. Engineered with precision, the MFS10-N2 switch features a 6-N Nylon stem and foamed 6-N float for lightweight resilience and lasting stability in challenging environments. Its design makes it suitable for liquids with a specific gravity of 0.8 or higher, accommodating a wide range of fluids with reliable performance.
The MFS10-N2 is built for versatile environments, withstanding temperatures from -10ºC to +110ºC and a pressure resistance of 0.2 MPa at room temperature. Electrically, it boasts a maximum contact capacity of 50W (DC/AC) and supports up to 300V and 0.5A, ensuring compatibility with diverse voltage and current requirements.
Ideal for use in equipment where space is limited, this compact, side-mounted switch is easy to install, making it perfect for tanks, reservoirs, and other liquid storage systems. It provides precise and dependable level monitoring, safeguarding systems from overflow or dry running, thus enhancing operational efficiency and safety.
