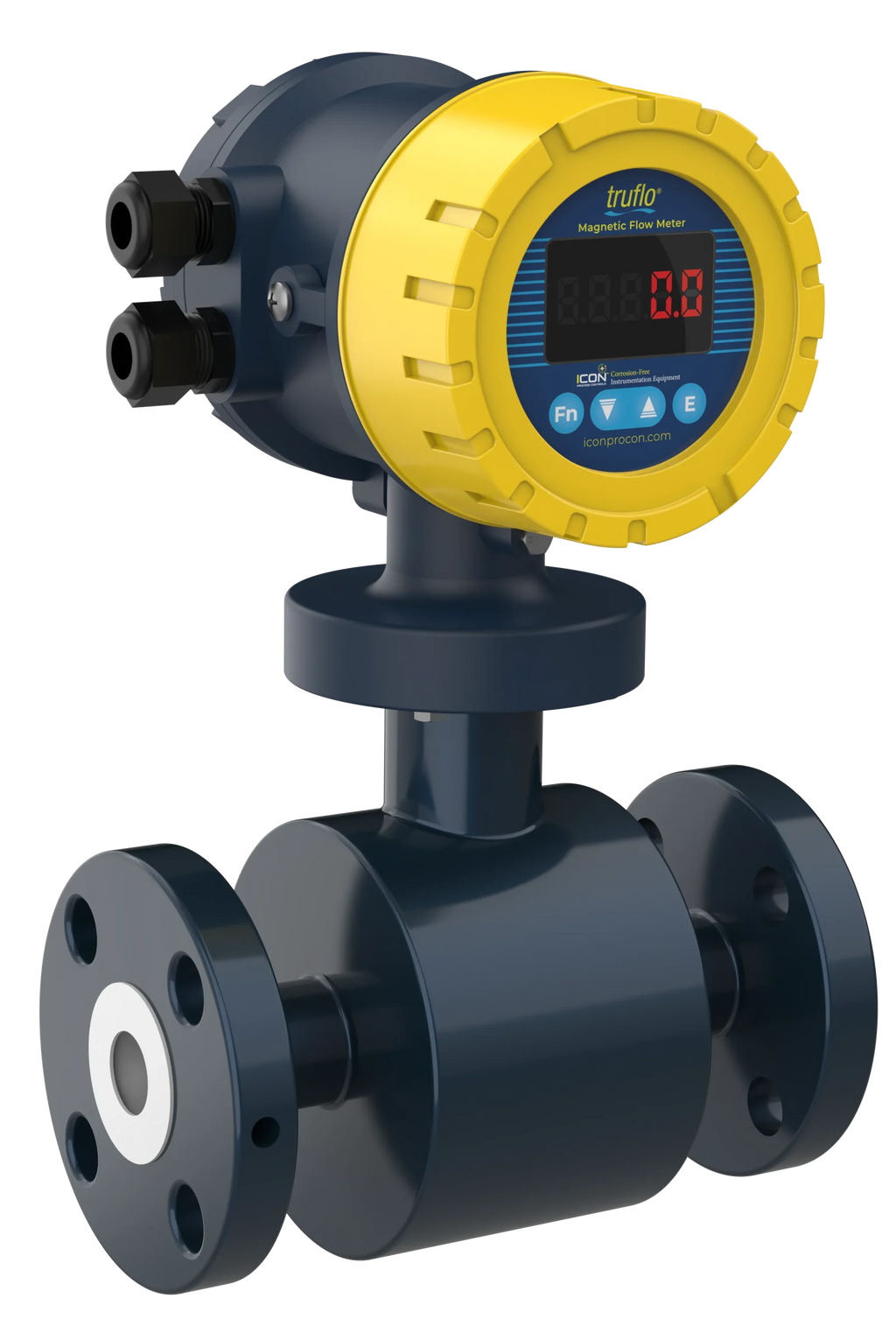

The Truflo MF1000 Series Magnetic Flow Meters provide long-lasting, reliable performance in even the most challenging applications. The MF1000 is a microprocessor-based flow transmitter that has been engineered for high performance, easy installation, commissioning and maintenance. The transmitter is truly robust, cost-effective and suitable for all-round applications and has a measuring accuracy of ± 0.5% of the flow rate. The all-welded construction provides a hermetic seal that protects against moisture and other contaminants. The sealed housing ensures maximum sensor reliability by protecting all internal components and wiring from even the most aggressive environments.
The Truflo MF1000 Series Magnetic Flow Meter consists of sensor & converter. The measuring tube is equipped magnet exciting coil. The converter provide current to magnet exciting coil and generate magnetic field which filled measuring tube, one or more pairs of electrode which are fixed in inner-wall of the measuring tube(vertical to field direction) detect and lead to induced electromotive force after contact liquid, then delivery to converter through cable and do signal processing. Insulation lining is fixed in inner-wall of the measuring tube, and make the measuring tube high resistant and nonmagnetic. Lining contacts with the measuring fluid, different causticity, abrasiveness and temperature of fluid choose different types of lining.
