VAL.CO

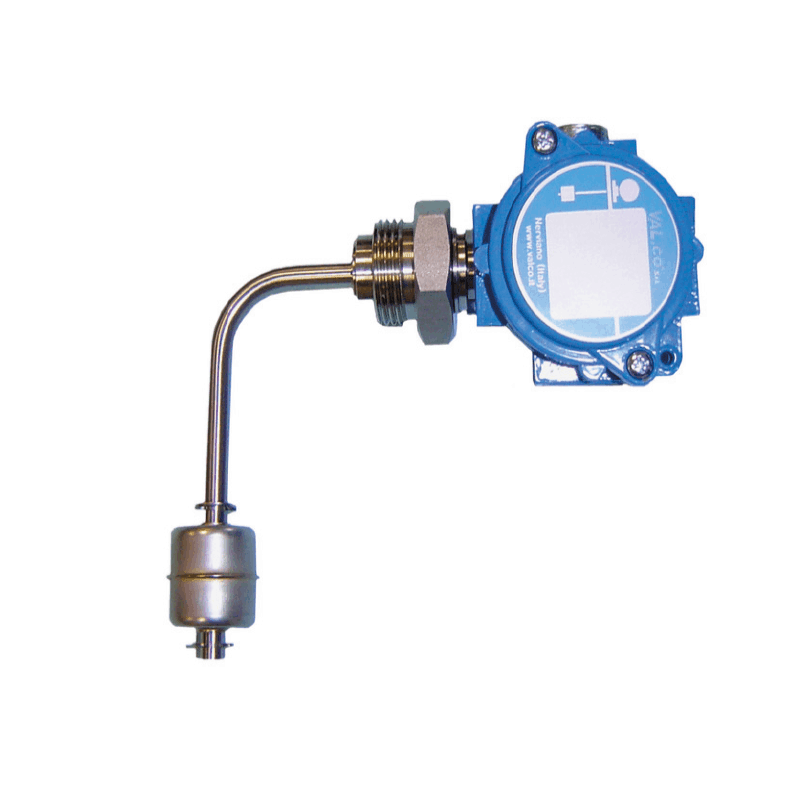

LS Custom Side Entry Level Switch

  • 1 to 6 switch points Up to 5m length.
  • Up to 6 bar max working pressure
  • Working temperature Up to 130°C
  •  IP65 Rated
  • Choice of Threads
  • Terminal head, Flying Leads, DIN connector Options.
  • Various Floats Available
  • ATEX Options Available
£0.00 In Stock Sold out

The VAL.CO LS Custom Side Entry Level Switch is a versatile and highly configurable solution for accurate multi-point level detection in tanks and vessels. With the ability to incorporate 1 to 6 switch points and custom lengths of up to 5 metres, this level switch is ideal for complex monitoring requirements in industrial and process applications.

Built to withstand demanding environments, the LS Custom can operate at pressures up to 6 bar and temperatures reaching 130°C. Its rugged IP65-rated housing ensures dependable protection against dust and water ingress.

Users can select from a wide range of thread types, float materials, and electrical connection options—including terminal heads, flying leads, or DIN connectors—for seamless system integration. Additionally, ATEX-certified versions are available for use in hazardous or explosive atmospheres. Whether you're managing water, oil, chemicals, or other fluids, the LS Custom provides reliable switching performance with maximum installation flexibility.
