Description

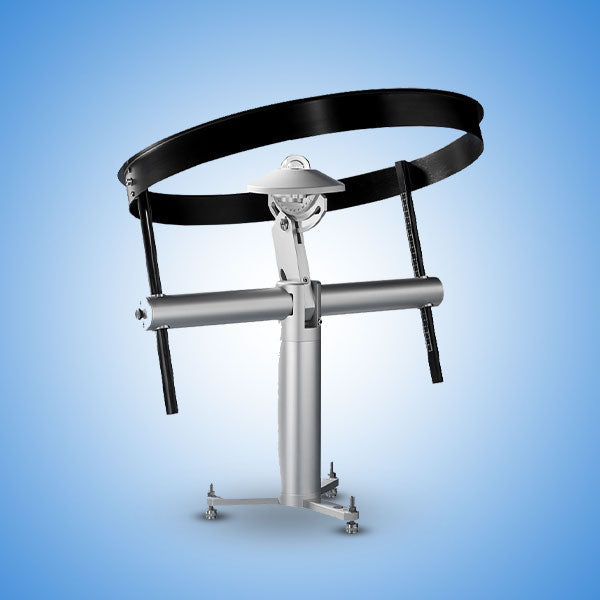

The Senseca LPS13 combines a Spectrally Flat Class A pyranometer with an adjustable shadow ring for high-quality diffuse solar irradiance monitoring.
Key Features
- Spectrally Flat Class A according to ISO 9060:2018
- 200…4000 W/m² measuring range
- 283…2800 nm spectral range
- Digital models with <2 s response time
- Adjustable shadow ring for diffuse-radiation measurement
- RS485 Modbus-RTU, configurable analogue, 4–20 mA or passive mV versions
- Internal temperature, humidity and pressure diagnostics on digital models
- Optional tilt monitoring
- Integrated goniometer, bubble level and adjustable feet
- IP67 outdoor construction
Datasheet
