LPPYRA02… Series – Spectrally Flat Class B Pyranometer

Login to see prices In Stock Sold out

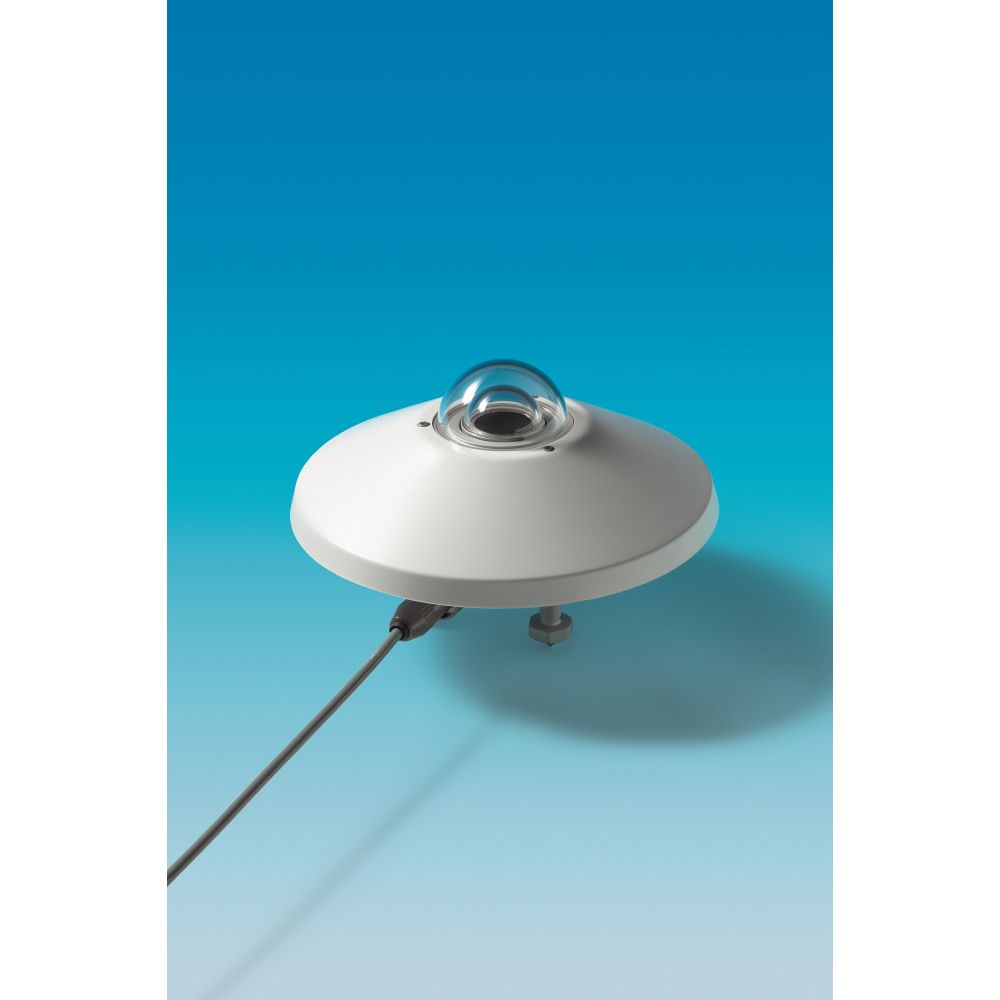

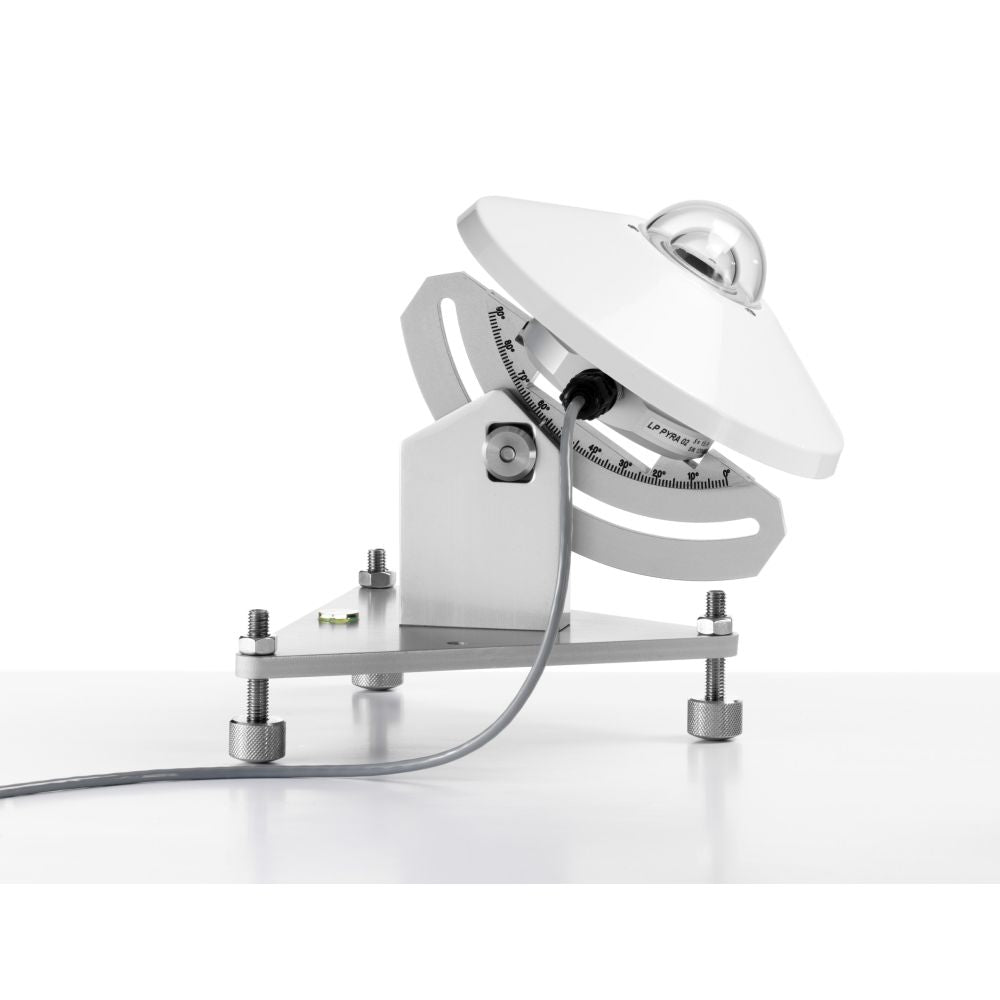

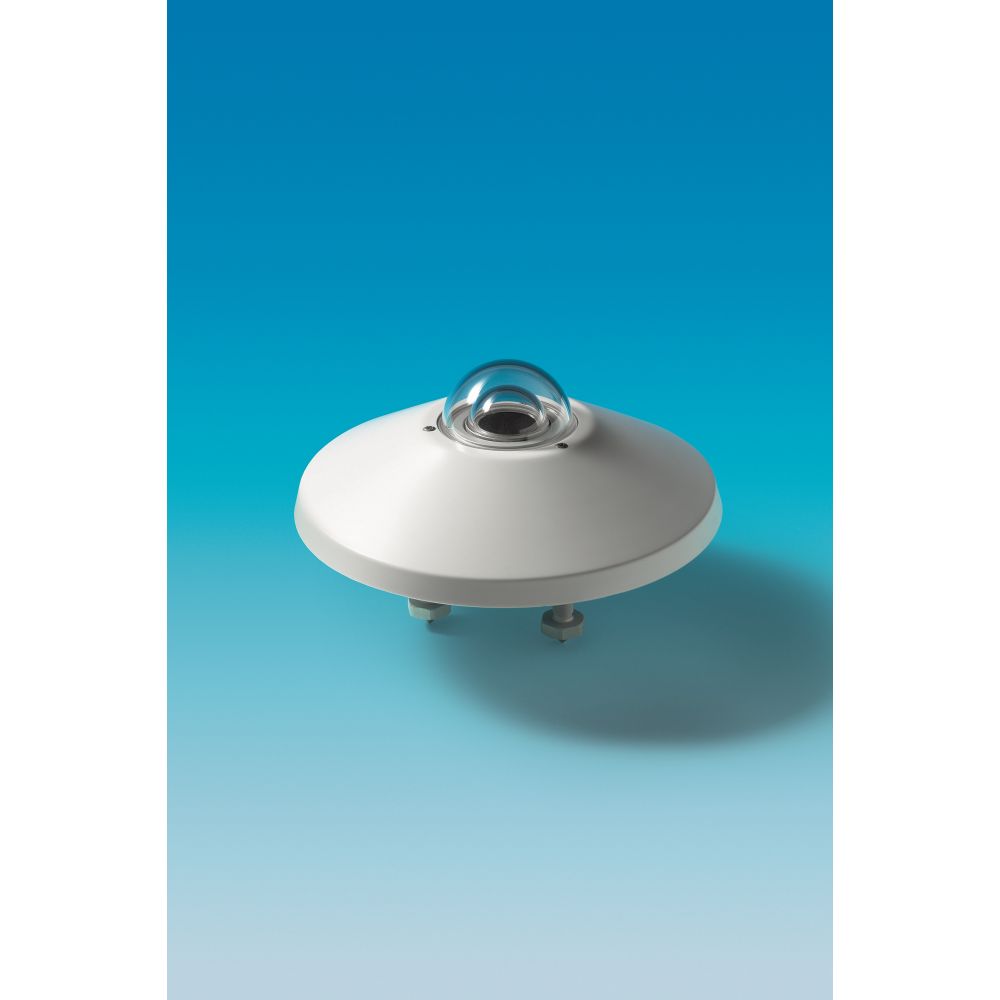

Spectrally Flat Class B (First Class) pyranometer according to ISO 9060:2018. The LPPYRA02 are well suited for the measurement of incoming global solar radiation (0.3μm…3μm spectral range). Complete with: shade disk, sachet with silica-gel crystals, 2 cartridges, levelling device and calibration report.

On request 5 or 10 m cables with connectors

The LPPYRA02 is available in different versions:

  • LPPYRA02 – PASSIVE
  • LPPYRA02AC – ACTIVE with CURRENT 4..20 mA output. Measuring range: 0…2000 W/m² or 0…4000 W/m² (LPPYRA02AC4).
  • LPPYRA10ACS – double 4…20 mA current output and RS485 serial output with MODBUS-RTU protocol. Measuring range: 0…2000 W/m² or 0…4000 W/m² (LPPYRA02ACS4).
  • LPYRA10AV – ACTIVE with VOLTAGE 0..1 V, 0..5 V or 0..10 V output. Measuring range: 0…2000 W/m² or 0…4000 W/m² (LPPYRA02AV4).
  • LPPYRA10S – with MODBUS RS485 output
  • LPPYRA10S12 – with SDI-12 output
