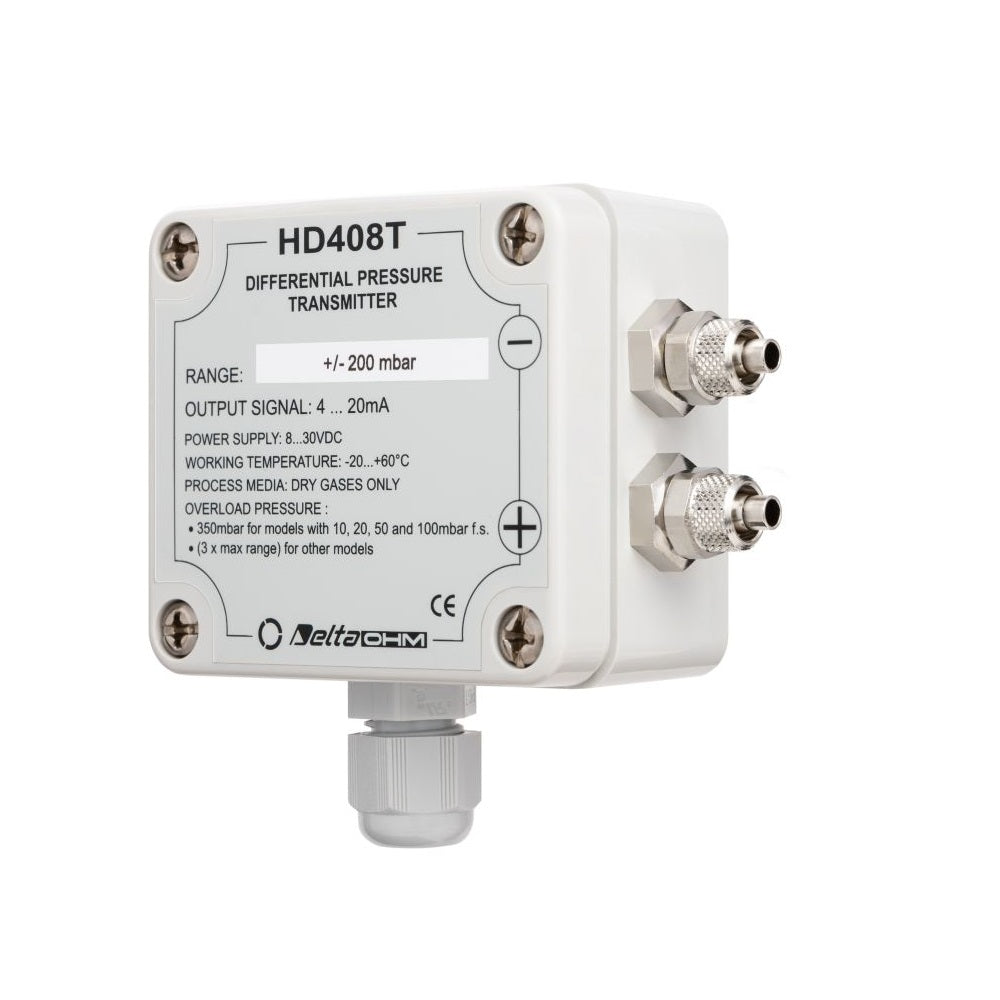

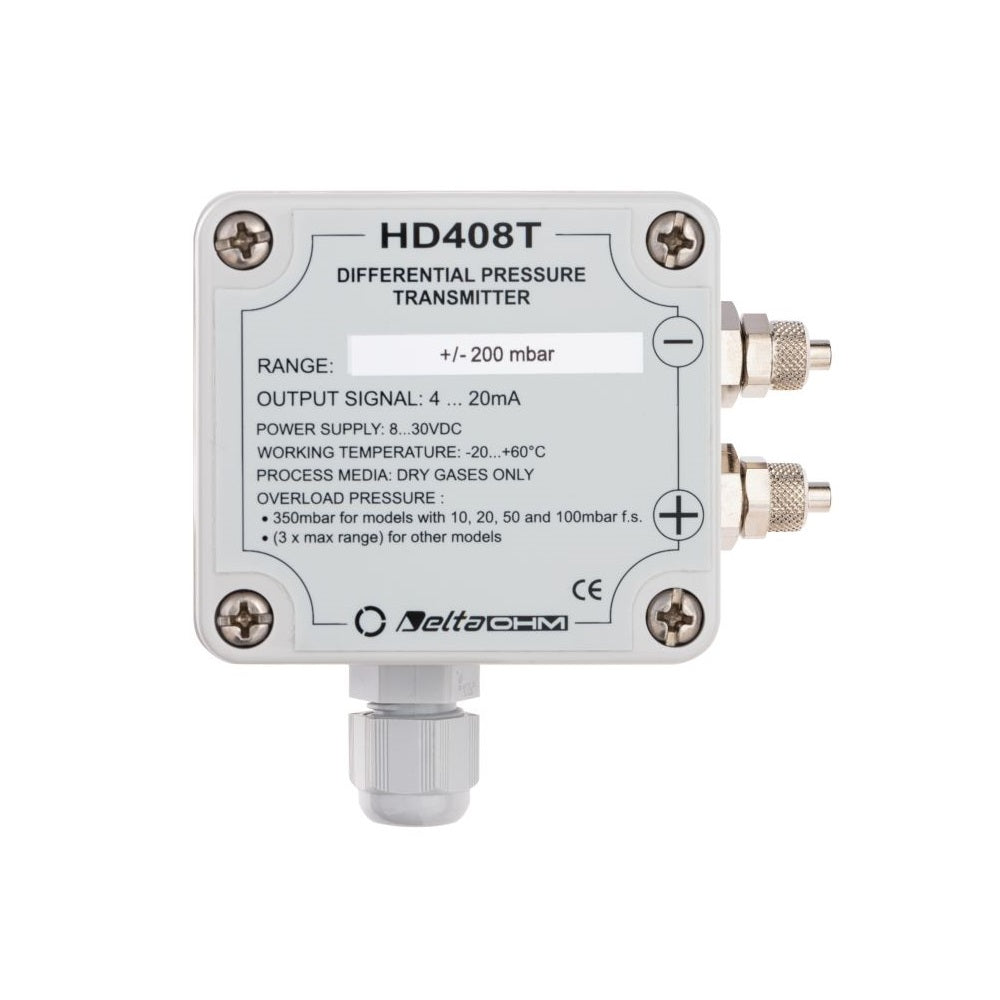

HD408T, HD4V8T are analog output relative or differential atmospheric pressure transmitters; they are used in all those applications where non corrosive air or gas need to be monitored, with pressure fields from 10 mbar to 2000 mbar.
The piezoresistive sensor gives extremely precise and stable measurements of the applied differential pressure, with excellent repeatability, low hysteresis, and very good temperature stability.
The output signal of the sensor is conditioned to provide either a current output (model HD408T) or a voltage output (model HD4V8T) linearly proportional to the applied differential pressure.
The transmitters are ready to use as they have been calibrated at the factory.
They are used to monitor clean room barometric pressure, to control filters, to measure flows (employment with the Pitot tube), for packing and packaging machines, and to control ventilation.
HD408T-10MBG, HD4V8T-10MBG3, HD4V8T-10MBG1, HD4V8T-10MBG2, HD408T-20MBG, HD4V8T-20MBG3, HD4V8T-20MBG1, HD4V8T-20MBG2, HD408T-50MBG, HD4V8T-50MBG3, HD4V8T-50MBG1, HD4V8T-50MBG2,HD408T-100MBG, HD4V8T-100MBG3, HD4V8T-100MBG1, HD4V8T-100MBG2, HD408T-200MBG, HD4V8T-200MBG3, HD4V8T-200MBG1, HD4V8T-200MBG2, HD408T-500MBG, HD4V8T-500MBG3, HD4V8T-500MBG1, HD4V8T-500MBG2, HD408T-1BG, HD4V8T-1BG3, HD4V8T-1BG1, HD4V8T-1BG2, HD408T-2BG, HD4V8T-2BG3, HD4V8T-2BG1, HD4V8T-2BG2
