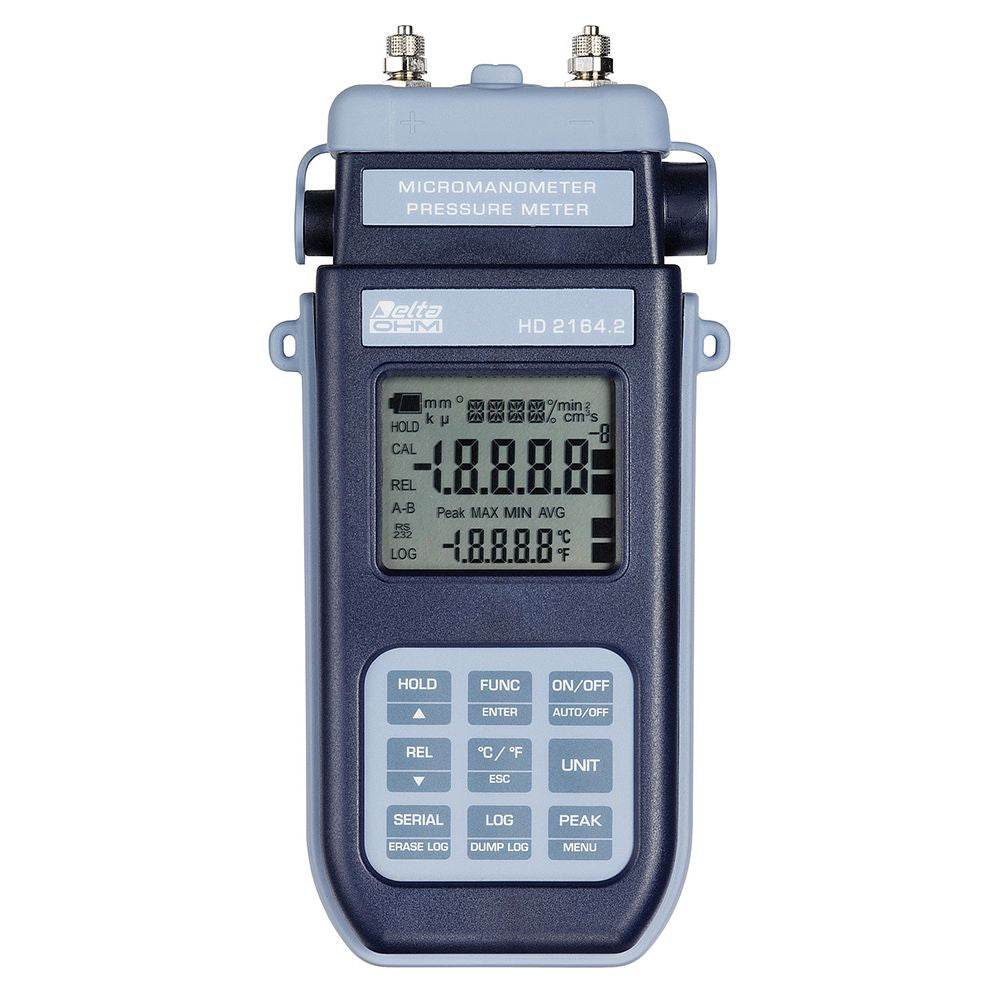

Portable Micromanometer-Thermometer data logger with 2000 mbar built-in sensor. It performs measure of absolute, relative, differential pressure and temperature.
In order to measure the pressure you use the electronic module series TP704 and TP705.
Temperature is measured by means of Pt100 with SICRAM module or direct 4 wires Pt100 probes for immersion, penetration, contact or air. Temperature probes are equipped with SICRAM module and factory calibration data are stored inside. Measuring range -200°C…+650°C.
Data logger which stores the maximum, minimum, average value and can store up to 36,000 couples of samples. USB output for data transfer in real time to a PC. Functions: REL, HOLD, PEAK (with probes TP704 or TP705), auto power off which can be disabled, IP 66 protection degree.
Includes DeltaLog9 software downloadable here. Supplied with carrying case, instruction manual, 4 batteries, CP23 USB cable.

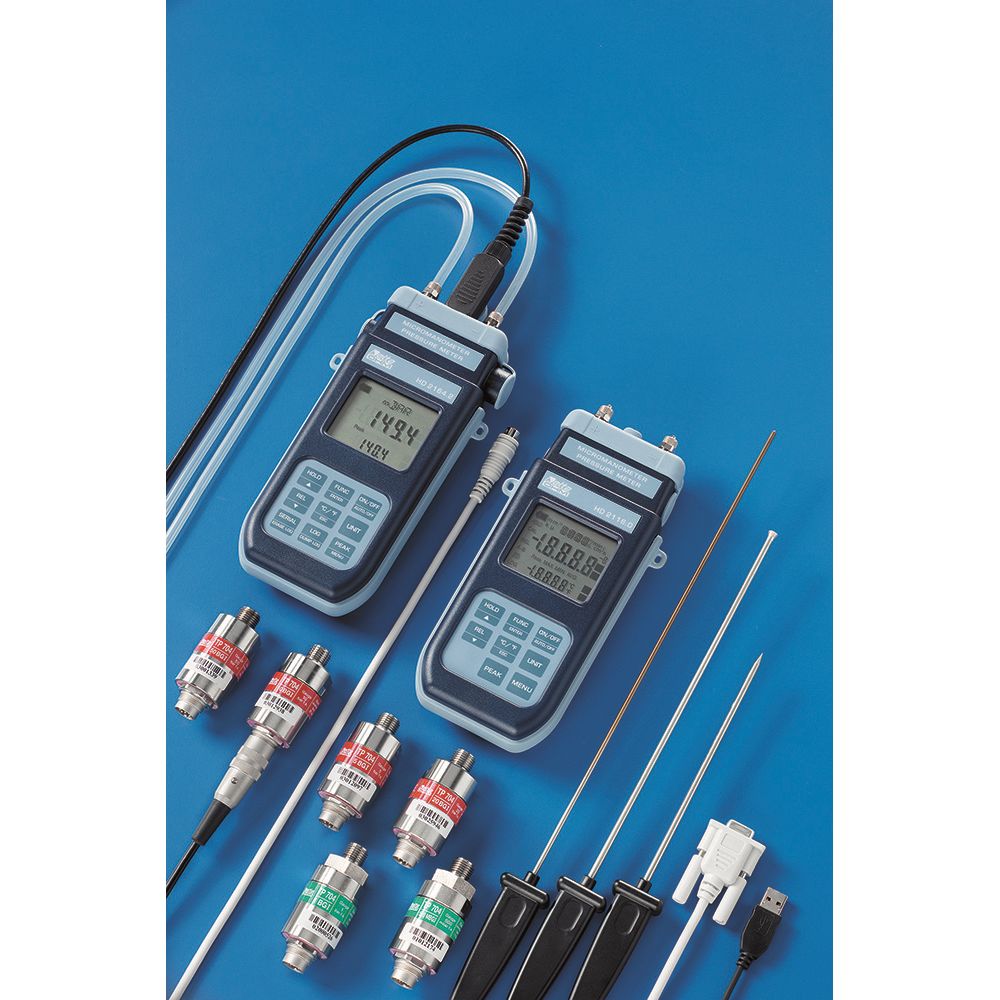

The SICRAM module PP471, pressure probes and temperature probes have to be ordered separately. TP704 and TP705 series pressure probes and TP47… series temperature probes are suitable.
Available as well without datalogging function HD2164.0.
