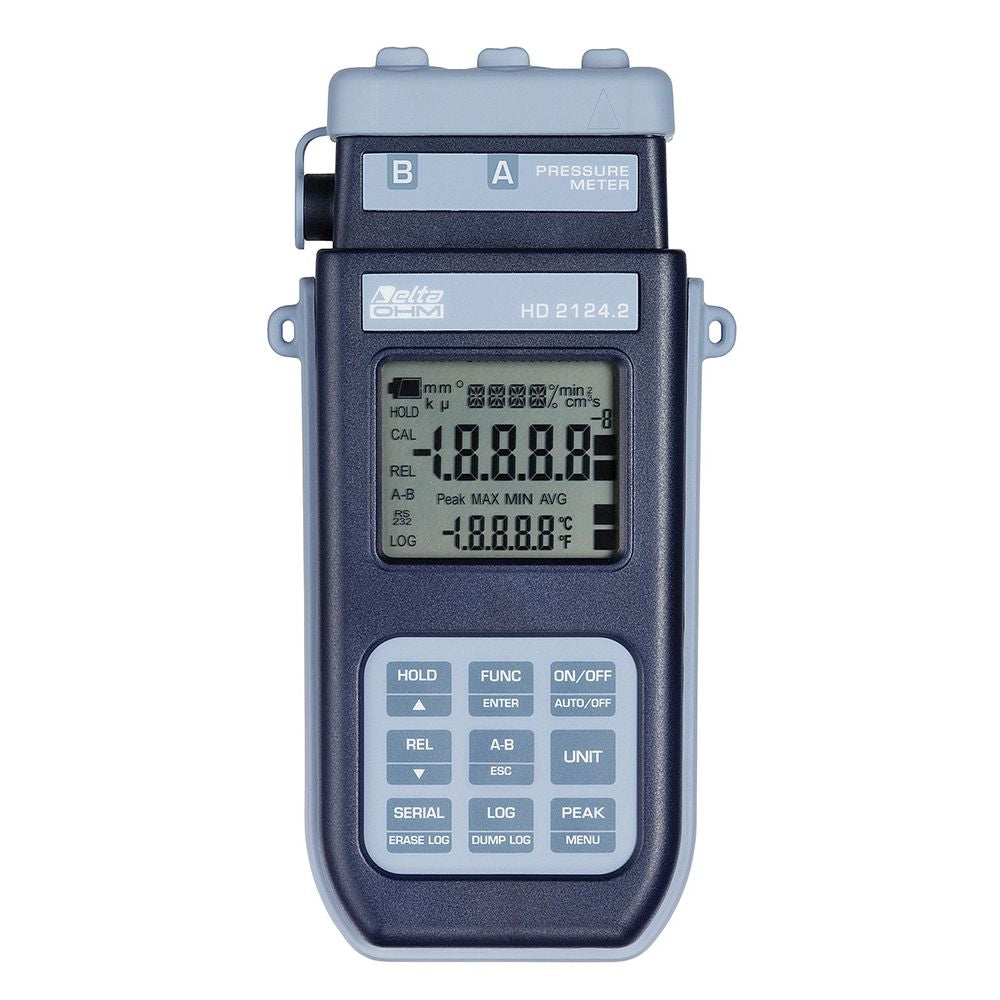

Handheld manometer-thermometer data logger with two inputs and LCD display.
It performs measure of absolute, relative, differential pressure and temperature. In order to measure the pressure you use the electronic module probes series TP704 and TP705.
Temperature is measured by means of Pt100 with SICRAM module or direct 4 wires Pt100 probes for immersion, penetration, contact or air. Measuring range -200 °C…+650 °C. Temperature probes are equipped with SICRAM module and factory calibration data are stored inside.
The instrument is a data logger which stores the maximum, minimum, average value and can store up to 32,000 couples of samples. RS232 C/USB output for data transfer in real time to a PC or printer. Functions: REL, HOLD, PEAK and auto power off which can be disabled, IP 66 protection degree.
Complete with carrying case, instruction manual, 4 batteries, USB cable CP23, software DeltaLog9 downloadable here. The SICRAM module PP471, pressure probes, temperature probes and cables for downloading have to be ordered separately.

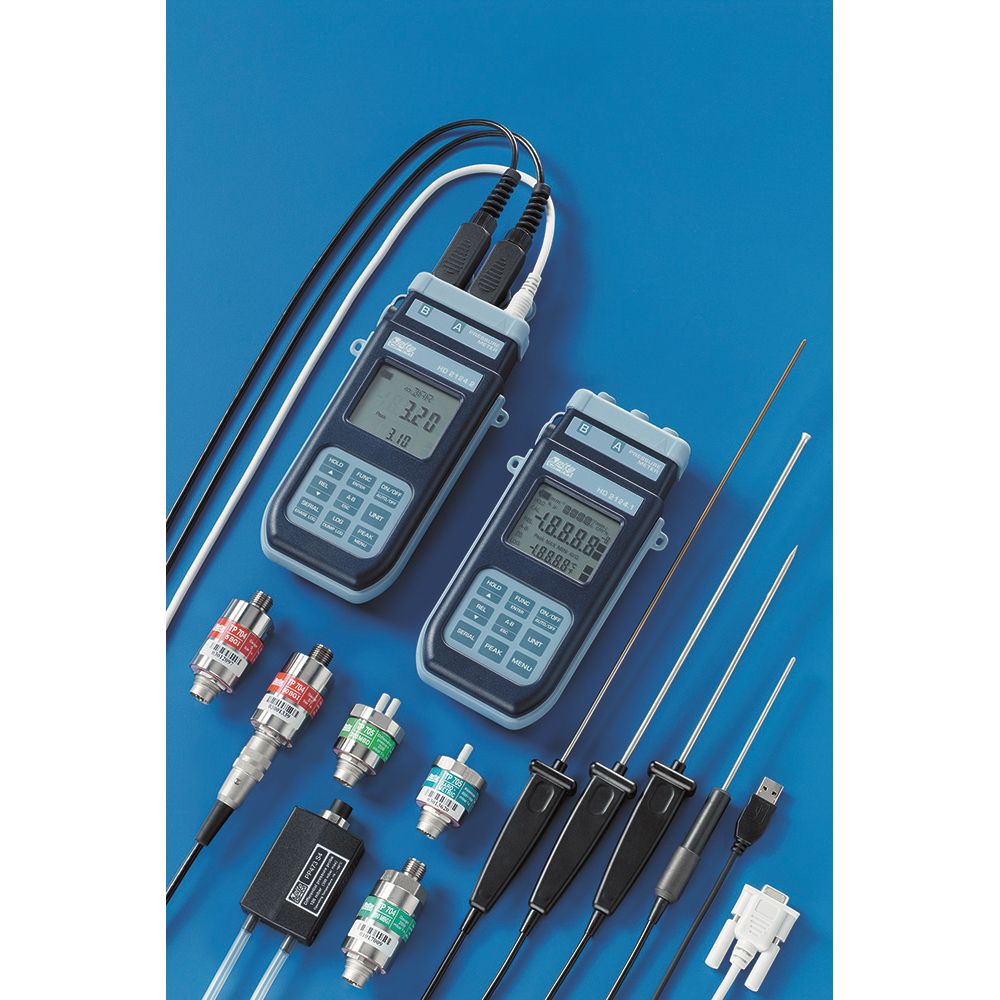

TP704 and TP705 series pressure probes and TP47… series temperature probes are suitable.
Available as well in version without data logging function HD2124.1
