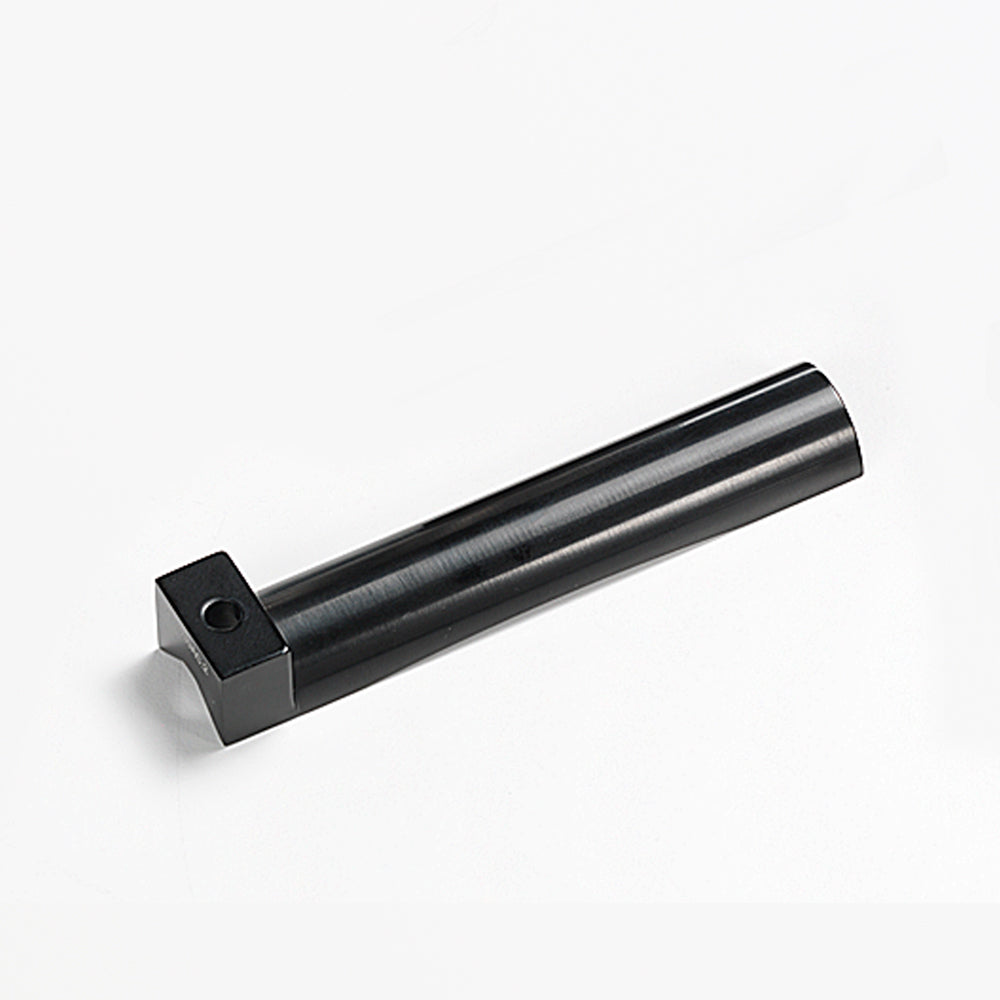

HD2030AC2 – Cylindrical Handles Hand Arm Adapter
Delta OHM

HD2030AC2 – Cylindrical Handles Hand Arm Adapter

Login to see prices In Stock Sold out

Adapter for the mounting of the accelerometers with 10-32 UNF or 5-40 UNC threaded hole on cylindrical handles.

The adapter, inserted between the hand and the handle, is pushed against the handle by the hand itself.

Because the accelerometer is placed in a lateral position, the measurement must be repeated placing the accelerometer both on the right and left side of the hand. Suitable for large cylindrical handles.

Material: light alloy.
It includes:

  • 10-32 UNF cylindrical head with hex socket screw with 4 mm hex key;
  • 5-40 UNC cylindrical head with hex socket screw with 4 mm hex key;
  • 10 cable-ties, width 4.5 mm, length 200 mm;
  • 2 velcro straps, width 25 mm, length 300 mm (HD2030FV).
