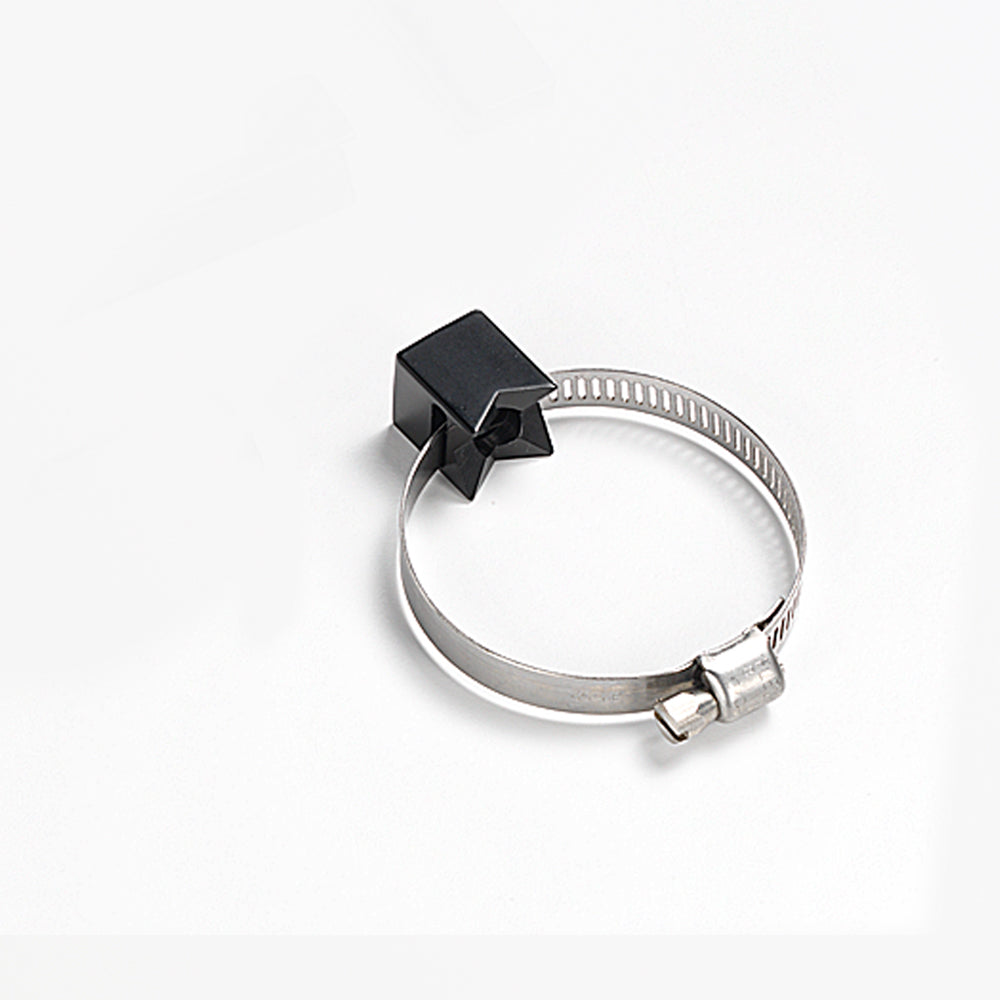

Cube-shaped adapter for the mounting of the accelerometers with 10-32 UNF or 5-40 UNC threaded hole on the tools handle.
The adapter has to be fastened with plastic cable-tie or metallic clamp close to the handle holding hand.
Suitable for anatomical handles and small size tools, where the weight and dimensions of the measurement chain must be minimized.
Material: light alloy.
It includes:
- 10-32 UNF cylindrical head with hex socket screw with 4 mm hex key;
- 5-40 UNC cylindrical head with hex socket screw with 4 mm hex key;
- 10 cable-ties, width 4.5 mm, length 200 mm;
- 1 metallic clamp, width 9 mm.
