HD2003.1 – 3-Axis Ultrasonic Anemometer
HD2003.1 – 3-Axis Ultrasonic Anemometer
HD2003.1 – 3-Axis Ultrasonic Anemometer
HD2003.1 – 3-Axis Ultrasonic Anemometer
Delta OHM

HD2003.1 – 3-Axis Ultrasonic Anemometer

Login to see prices In Stock Sold out

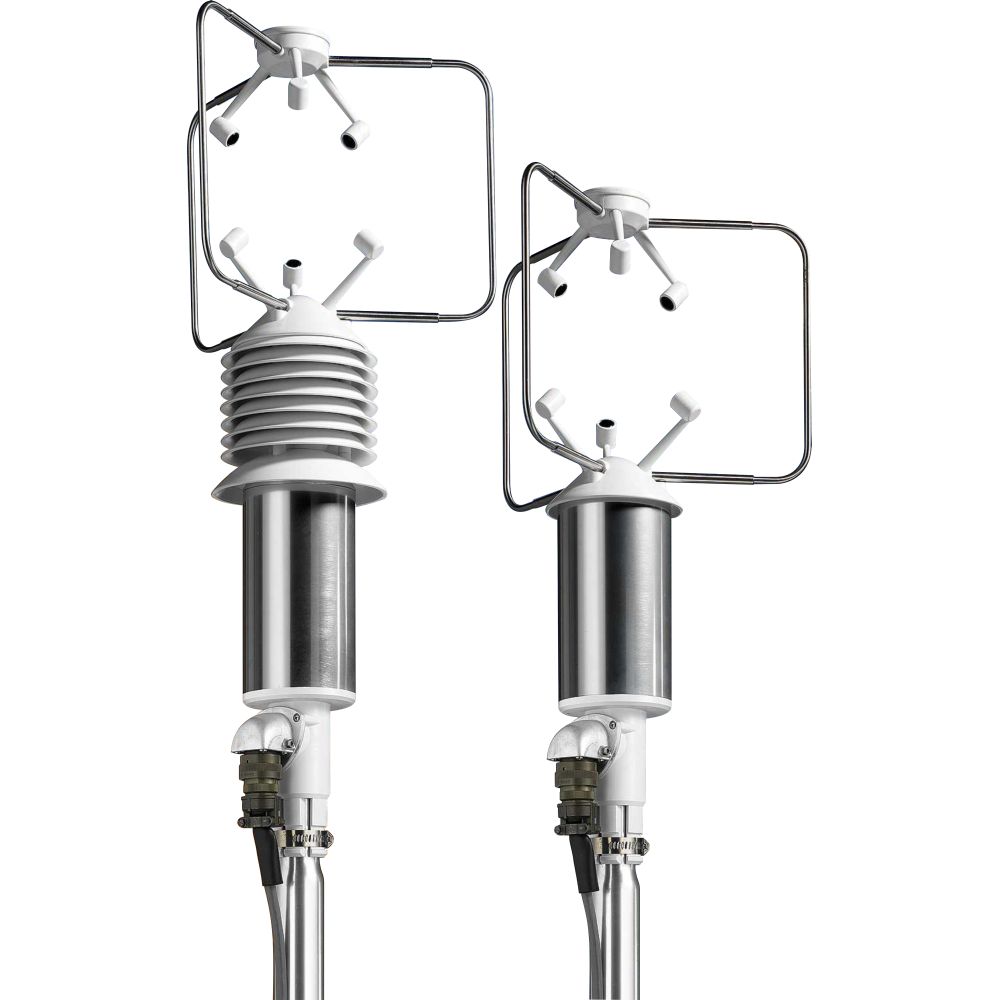

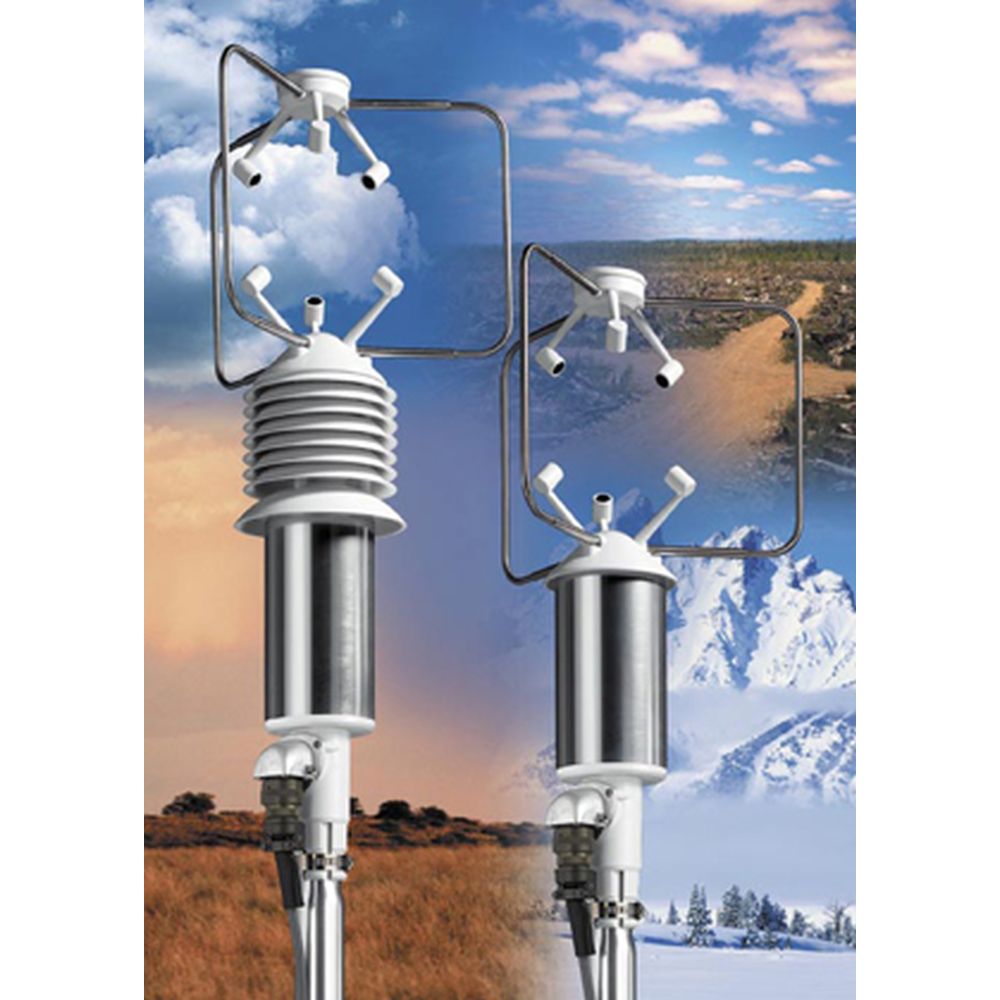

Ultrasonic static anemometer for measuring wind speed and direction, U-V-W Cartesian Components of speed, wind gust, sound speed, sonic temperature.

Five analog outputs in different voltage and current, different ranges. Communication software for bi-directional links for net connection of different anemometers, interfaces available RS-232 and RS-485 with proprietary or MODBUS-RTU protocol. Different measuring units and average periods are available.

12…30 Vdc power supply, 120 mA consumption at 15 Vdc.

To be mounted on a mast Ø33 mm. Connector CP2003/C included.

Transducers heating option (HD2003.1R) against ice or snow available.

For the additional measurement of temperature, relative humidity and atmospheric pressure, please refer to the model HD2003.
