Description

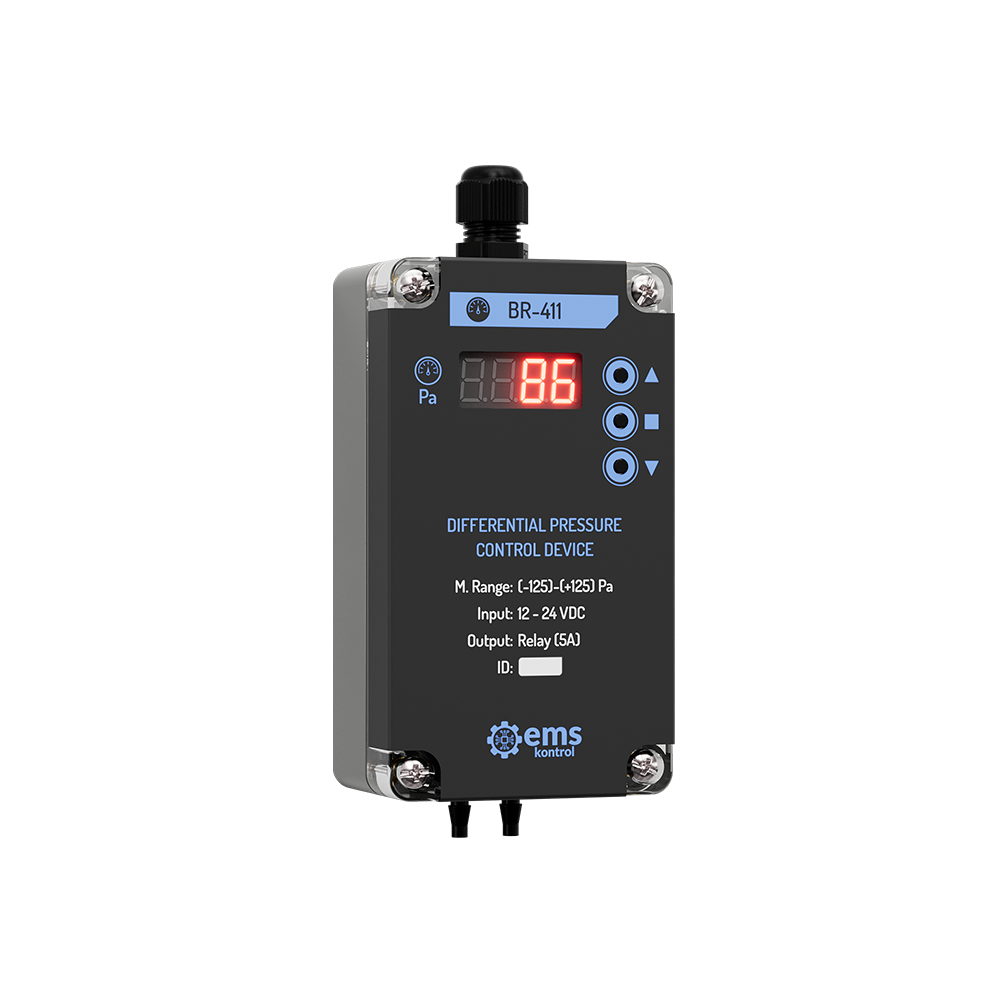

The EMS Kontrol BR-4X1 measures differential pressure and uses adjustable relay switching to control equipment within a selected operating range.
Specifications
| Supply | 12–24 VDC |
|---|---|
| Pressure ranges | 4X1: up to −125 to +125 Pa; 4X2: up to −500 to +500 Pa, depending on model |
| Outputs | One 5 A relay; voltage/current options by model |
Adjustable relay sensitivity; optional buzzer. Select relay-only or analogue-output models to suit the application.
Request a quotation from PVL to confirm the required model, configuration and compatible accessories.
