E3W Ultrasonic Thermal Energy/BTU Flow Meter

Introducing the Gentos E3W, a state-of-the-art ultrasonic flow meter designed to streamline your fluid measurement needs. Utilising advanced ultrasonic transit time measurement and Gentos' proprietary flow algorithm technology, the E3W offers precise and reliable flow measurements for various pipe sizes, including DN20 through DN80.

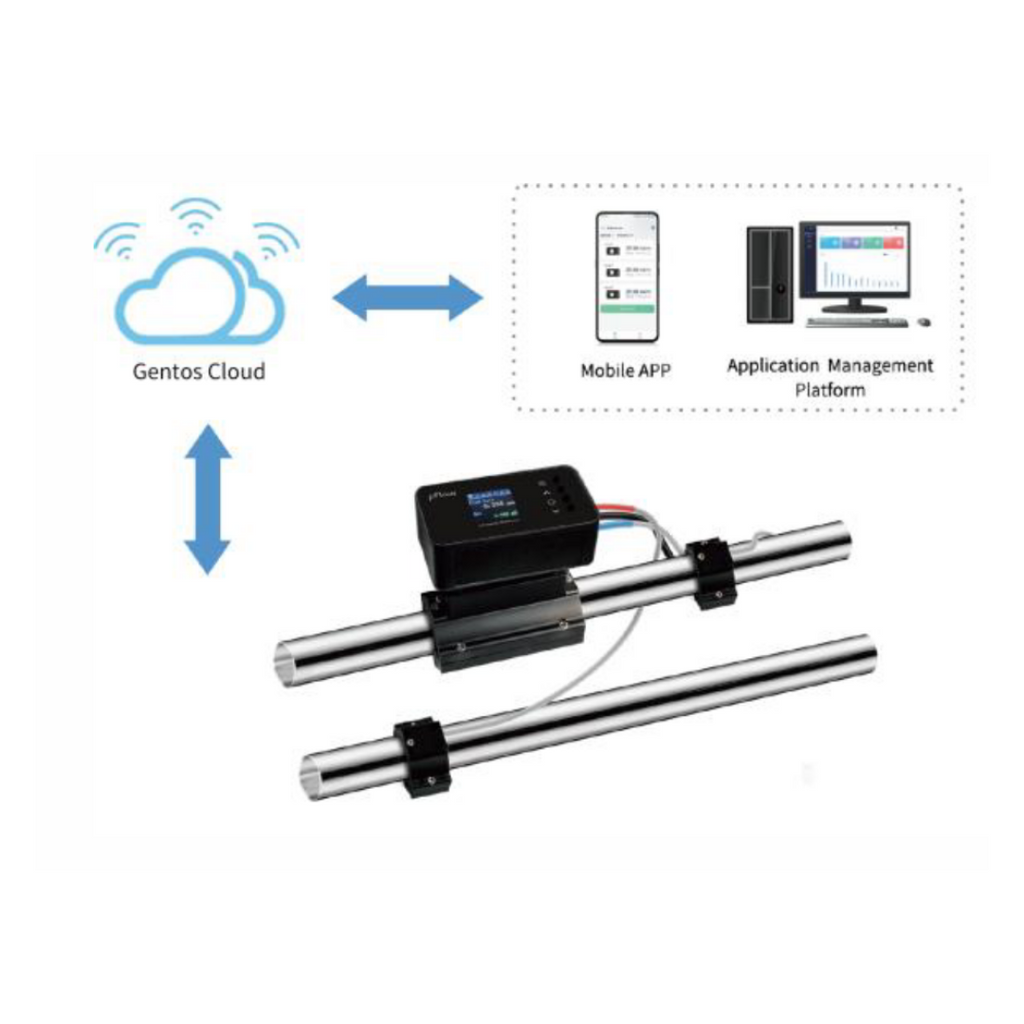

This compact, all-in-one device ensures effortless installation with just four simple steps. Its non-intrusive design means it requires no contact with the fluid media, making it ideal for HVAC systems, energy-saving monitoring, heat balance regulation, and more. The E3W supports wireless communication via WiFi, enabling seamless cloud data storage and remote monitoring through Android apps or PC web platforms.

With a flow velocity range of 0.03 m/s to 5 m/s, the E3W provides accuracy within ±2% and repeatability of 0.20%. It is compatible with a range of pipe materials, including PVC, carbon steel, stainless steel, and copper. The meter operates efficiently within a power supply range of 10-36VDC and features robust environmental resilience, with ambient temperature support from -10°C to 50°C and fluid temperature up to 60°C.

Choose the E3W for precision, convenience, and advanced flow measurement capabilities.
