SENSECA

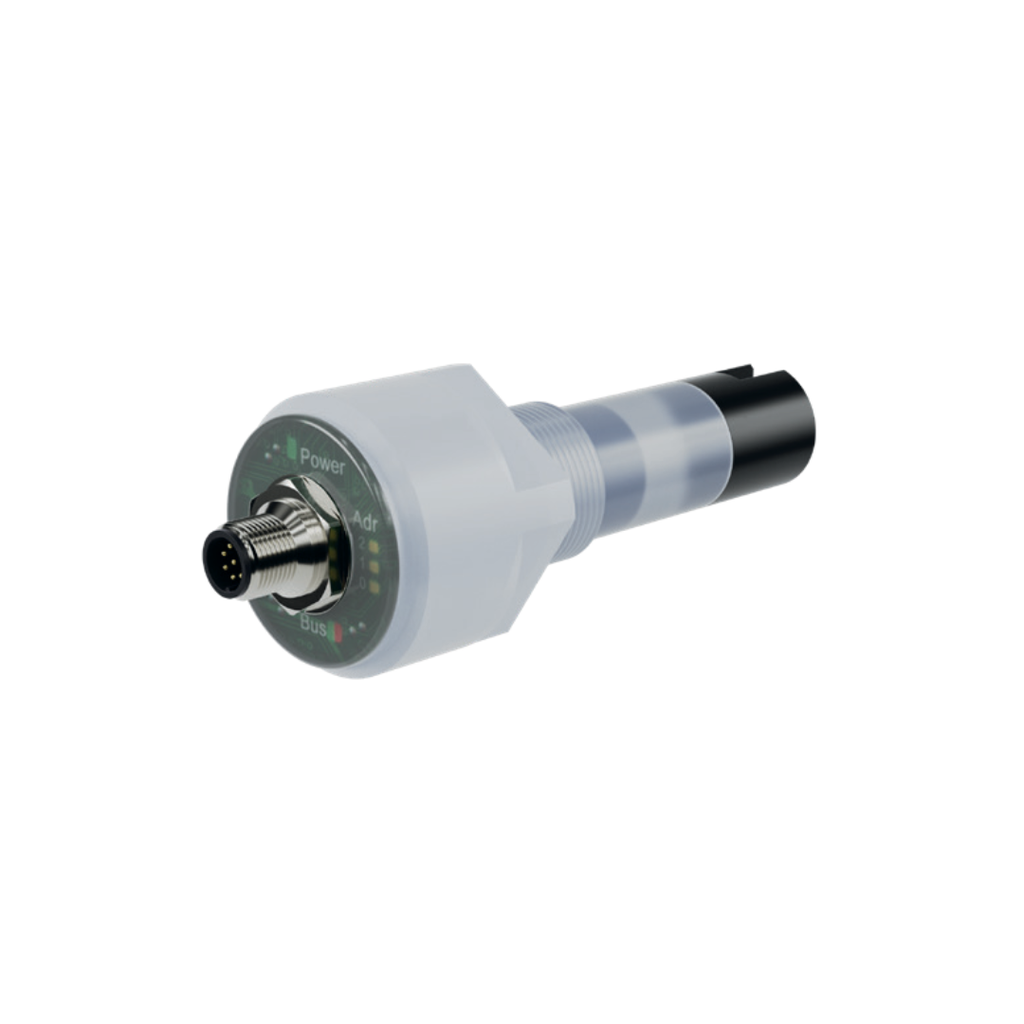

Digital Conductivity-Converter CONDIX4623
- RS485 Interface with MODBUS RTU-protocol
- 6 types of temperature compensation
- 0..20 μS/cm up to 0..500 mS/cm

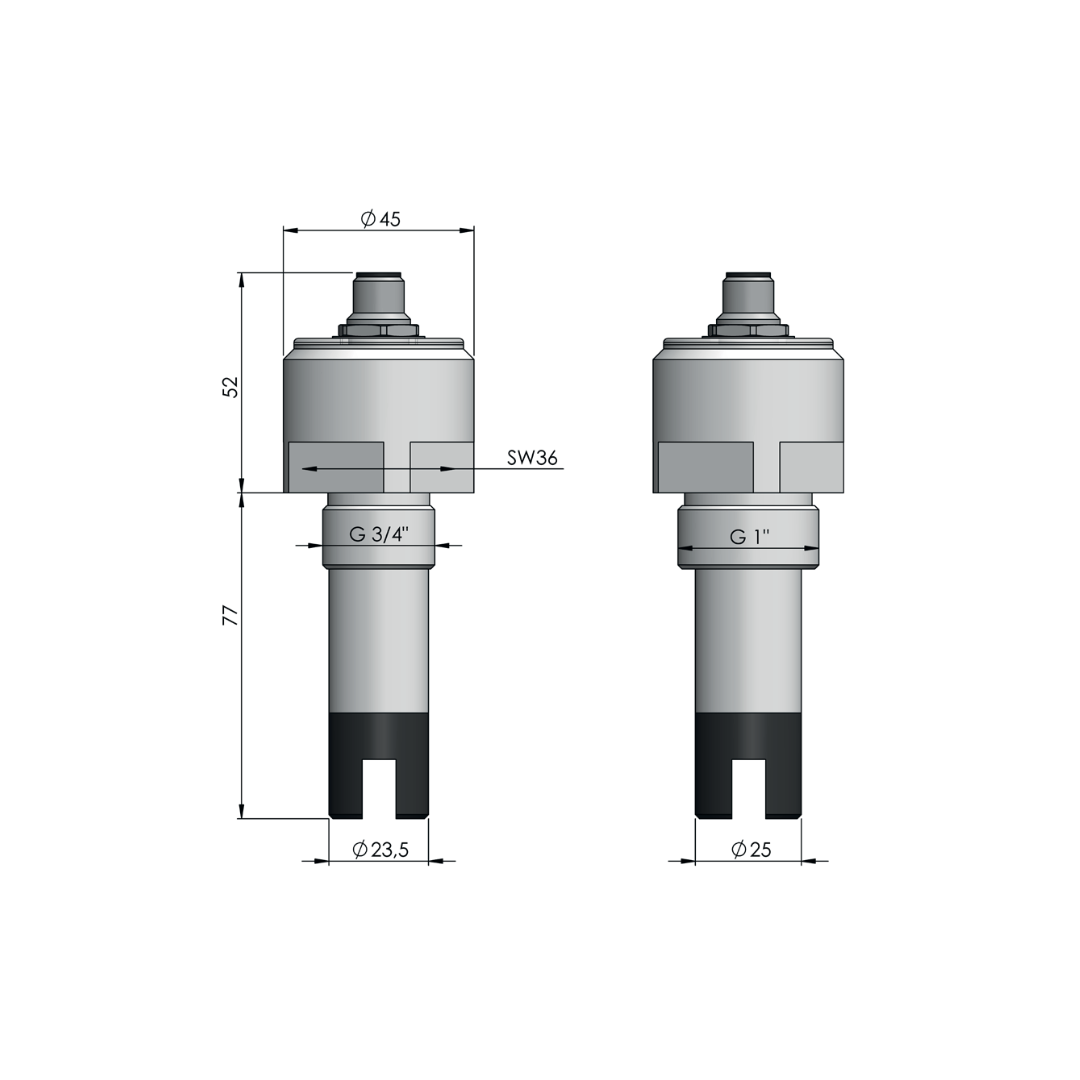

- Process connection G3/4" or G1A" thread
 |
Technical Datasheet |
£0.00
In Stock
Sold out
- Description
- Downloads
Description
The CONDIX4623 digital conductivity converter measures liquid conductivity and transmits data to a master system (e.g., PLC, SCADA) via its integrated digital transmitter. Device settings and input configurations are adjustable through the interface or SENSware software. It offers six temperature compensation options, depending on the application. The 4-electrode measurement principle, with a cell constant of C0.5 1/cm, supports applications up to 500 mS/cm. Typical uses include water treatment for landfill leachate, seawater, and black water treatment on ships, making it ideal for various industrial and environmental monitoring applications.
